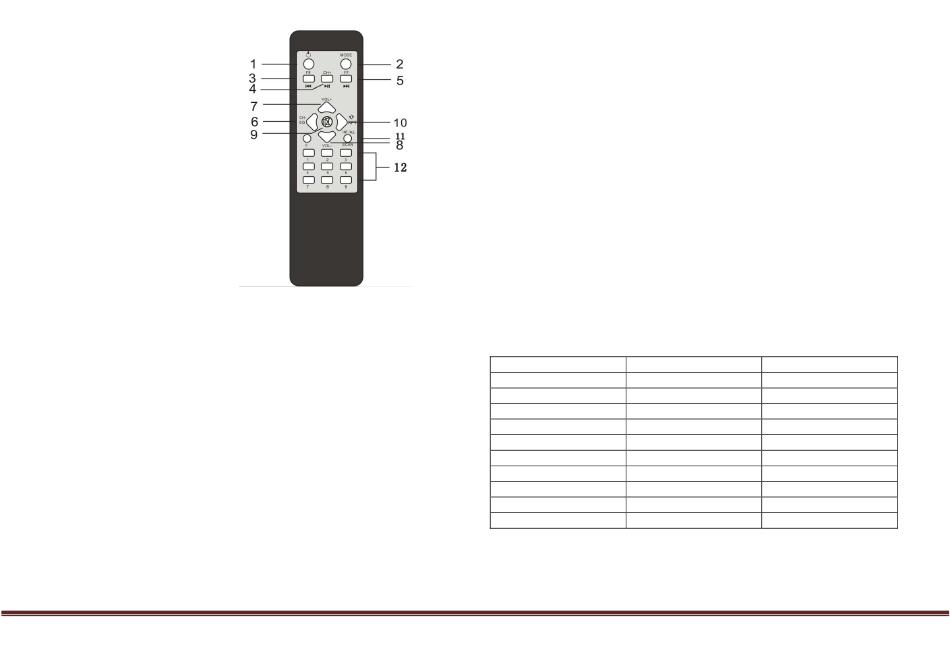

REMOTE CONTROL

1. Standby state
2. Mode selection
(USB/AUX/FM/BLUETOOTH)
3. Back
In MP3 mode: Previous song.
In FM mode: Manual search backwards
through the channels
4. Play/Pause in MP3 mode
In FM mode: Next channel
5. Forward
In MP3 mode: Next song
In FM mode: Manual search forwards
through the channels
6. CH- /EQ:
In MP3 mode: Change EQ setting
In FM mode: Back to the previous channel
7. Vol+: increases the volume
8. Vol -: reduces the volume
9. Mute
10. RPT: Repeat a song in MP3 mode
11. SCAN: For FM mode, automatic search through the channels. The found
channels are automatically saved in the system
12. Number buttons 0-9: Direct selection of the channels that have been saved
already in the system

Operation of the system

1. Put the boxes on an even stable surface.
2. Connect the supplied lead to the LED OUTPUT and AUDIO OUTPUT sockets
on the rear side of the active box to the LED INPUT and AUDIO INPUT
sockets on the rear side of the passive box.
3. Turn all volume controls down to the minimum level.
4. Switch the system on via the ON/OFF switch (5) on the rear panel of the
active box.
5. Connect an audio source to the audio input (1) on the rear panel of the
active box or an USB or SD media to the appropriate input port on the front
panel.
6. Select the input source via the MODE selector switch (9D on the box or 2 on
remote).
©Copyright LOTRONIC 2014 | Manual DP234-ASTRO / DP235-ASTRO
7. If you connect a USB/SD input source, you can control the functions via the buttons
(9) on the front panel of the active box or via the remote control.
8. Connect a microphone to the inputs MIC1 or MIC2 and set the volume and the echo
level of the microphone via the rotary buttons (1) and (2) to the desired level. Reduce
the master volume if needed.
9. Switch the LED light effect ON or OFF via the LED POWER switch (6) on the rear panel
of the active box. The effect rotates automatically when no sound is audible or reacts
to the music.
Bluetooth instructions:
Select the BLUETOOTH modus by pressing the MODE button until BT is displayed. The box
starts searching for a BLUETOOTH device.
Activate the BLUETOOTH search function on your smartphone.
Select GW-BT in the list of found devices.
Once the system has been successfully paired with your smartphone, you can start playing
your songs. You can use the controls Play/pause, previous, next, VOL+ and VOL- on the
remote.
Note: Only one Bluetooth device can be paired at the same time to the system.
For some older Bluetooth versions (version 2.0) you might have to input the code 0000 at
the first connection. The version 3.0 or higher doesn't require a code.

Specifications

DP234-ASTRO
LED light effect 3 x 1W RGB
Woofer diam. 8" / 20cm
PMPO Power 250W
MIC inputs 2
USB/SD input 1
LINE input 1
Freq. range 20Hz – 20kHz
Weight 15.8kg
Dimensions 355 x 270 x 630mm
Power supply 220-240Vac 50/60Hz
DP235-ASTRO
3 x 1W RGB
10" / 25cm
350W
2
1
1
20Hz – 20kHz
18.5kg
420 x 270 x 700mm
220-240Vac 50/60Hz
