»RemoteAccess-IP-CPU« target module

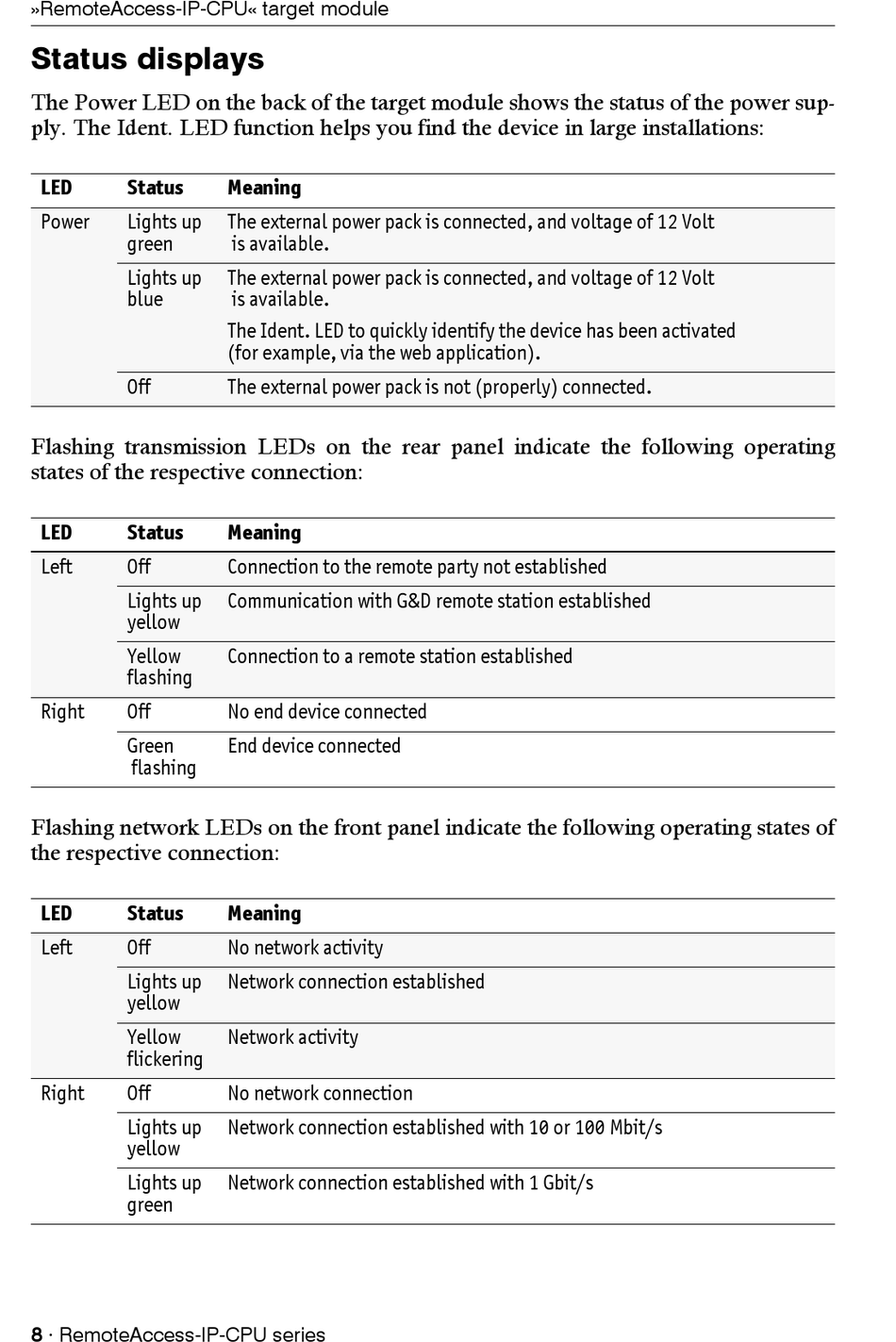

Status displays

The Power LED on the back of the target module shows the status of the power sup-
ply. The Ident. LED function helps you find the device in large installations:
LED Status
Power Lights up
green
Lights up
blue
Off
Flashing transmission LEDs on the rear panel indicate the following operating
states of the respective connection:
LED Status
Left Off
Lights up
yellow
Yellow 
flashing
Right Off
Green
flashing
Flashing network LEDs on the front panel indicate the following operating states of
the respective connection:
LED Status
Left Off
Lights up
yellow
Yellow
flickering
Right Off
Lights up
yellow
Lights up
green
8 · RemoteAccess-IP-CPU series
Meaning
The external power pack is connected, and voltage of 12 Volt
is available.
The external power pack is connected, and voltage of 12 Volt
is available.
The Ident. LED to quickly identify the device has been activated
(for example, via the web application).
The external power pack is not (properly) connected.
Meaning
Connection to the remote party not established
Communication with G&D remote station established
Connection to a remote station established
No end device connected
End device connected
Meaning
No network activity
Network connection established
Network activity
No network connection
Network connection established with 10 or 100 Mbit/s
Network connection established with 1 Gbit/s
