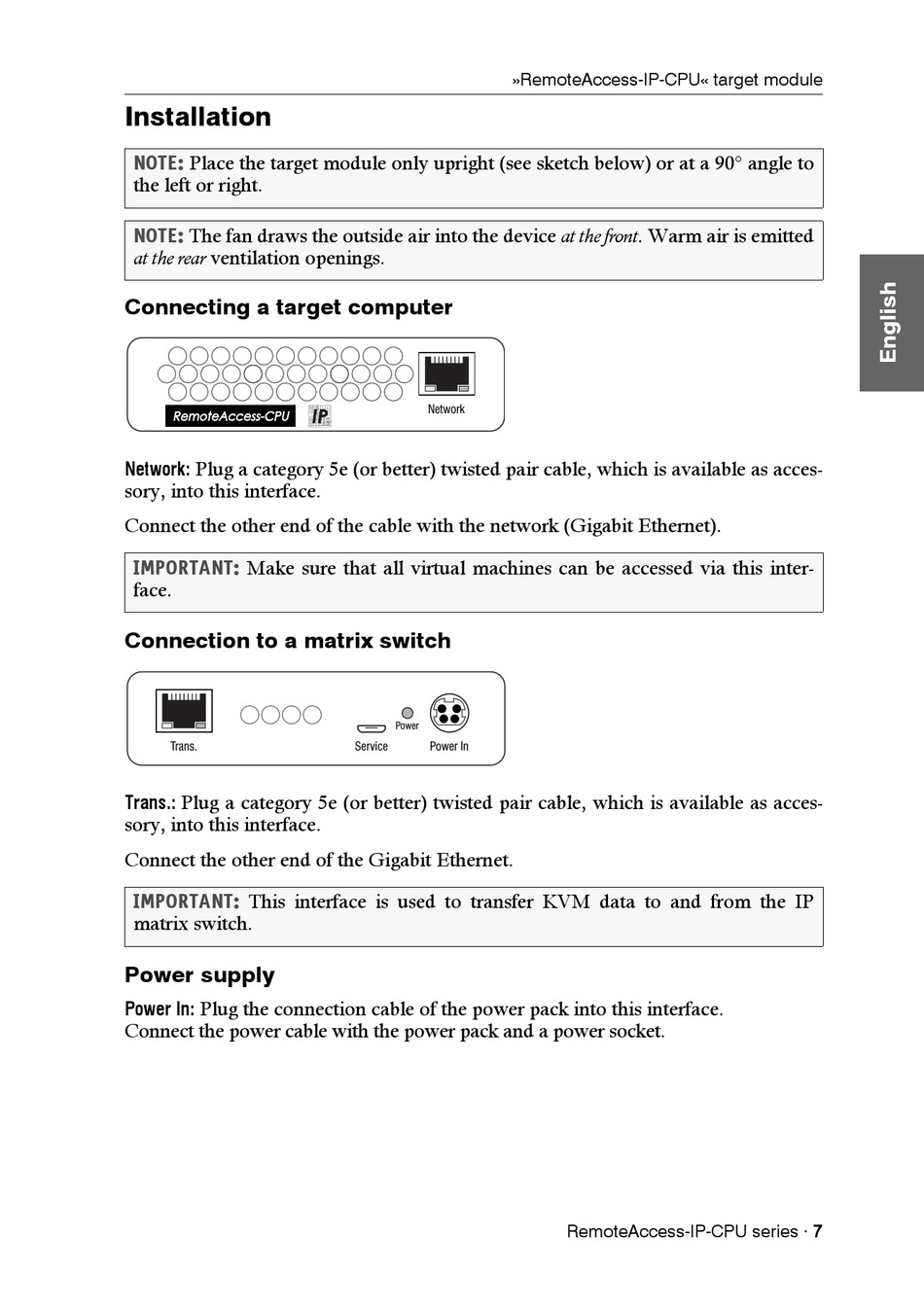

Installation
NOTE:
Place the target module only upright (see sketch below) or at a 90° angle to
the left or right.
NOTE:
The fan draws the outside air into the device at the front. Warm air is emitted
at the rear ventilation openings.
Connecting a target computer
Network:
Plug a category 5e (or better) twisted pair cable, which is available as acces-
sory, into this interface.
Connect the other end of the cable with the network (Gigabit Ethernet).
IMPORTANT:
Make sure that all virtual machines can be accessed via this inter-
face.
Connection to a matrix switch
Trans.
Trans.:
Plug a category 5e (or better) twisted pair cable, which is available as acces-
sory, into this interface.
Connect the other end of the Gigabit Ethernet.
IMPORTANT:
This interface is used to transfer KVM data to and from the IP
matrix switch.
Power supply
Power In:
Plug the connection cable of the power pack into this interface.
Connect the power cable with the power pack and a power socket.
»RemoteAccess-IP-CPU« target module
Network
Power
Power In
Service
RemoteAccess-IP-CPU series · 7
