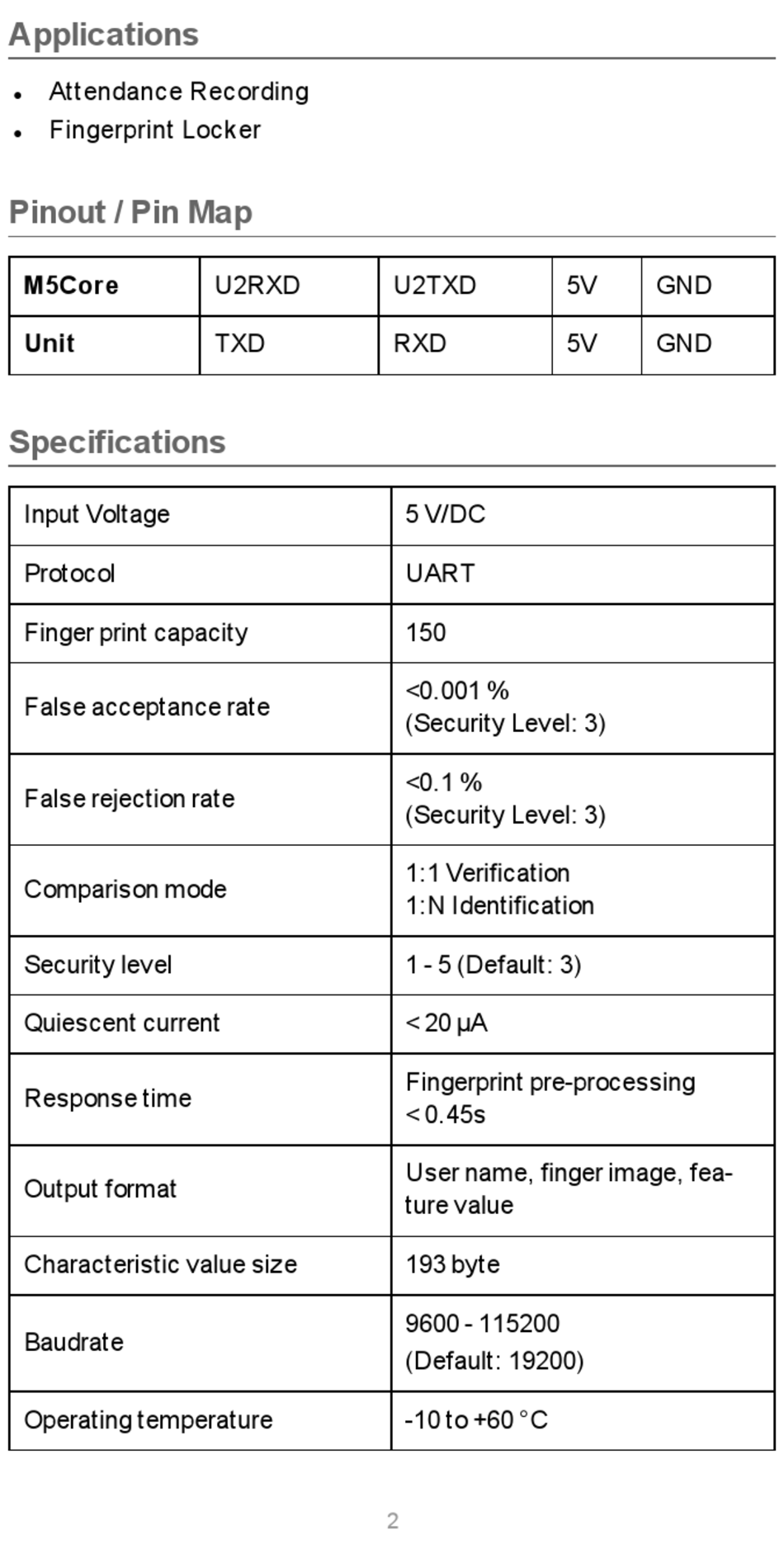

Specifications - Maker Factory M5Stack Kurzanleitung

Applications
Attendance Recording
l
Fingerprint Locker
l
Pinout / Pin Map
M5Core
Unit

Specifications

Input Voltage
Protocol
Finger print capacity
False acceptance rate
False rejection rate
Comparison mode
Security level
Quiescent current
Response time
Output format
Characteristic value size
Baudrate
Operating temperature
U2RXD
TXD
U2TXD
RXD
5 V/DC
UART
150
<0.001 %
(Security Level: 3)
<0.1 %
(Security Level: 3)
1:1 Verification
1:N Identification
1 - 5 (Default: 3)
< 20 µA
Fingerprint pre-processing
< 0.45s
User name, finger image, fea-
ture value
193 byte
9600 - 115200
(Default: 19200)
-10 to +60 °C
2
5V GND
5V GND
