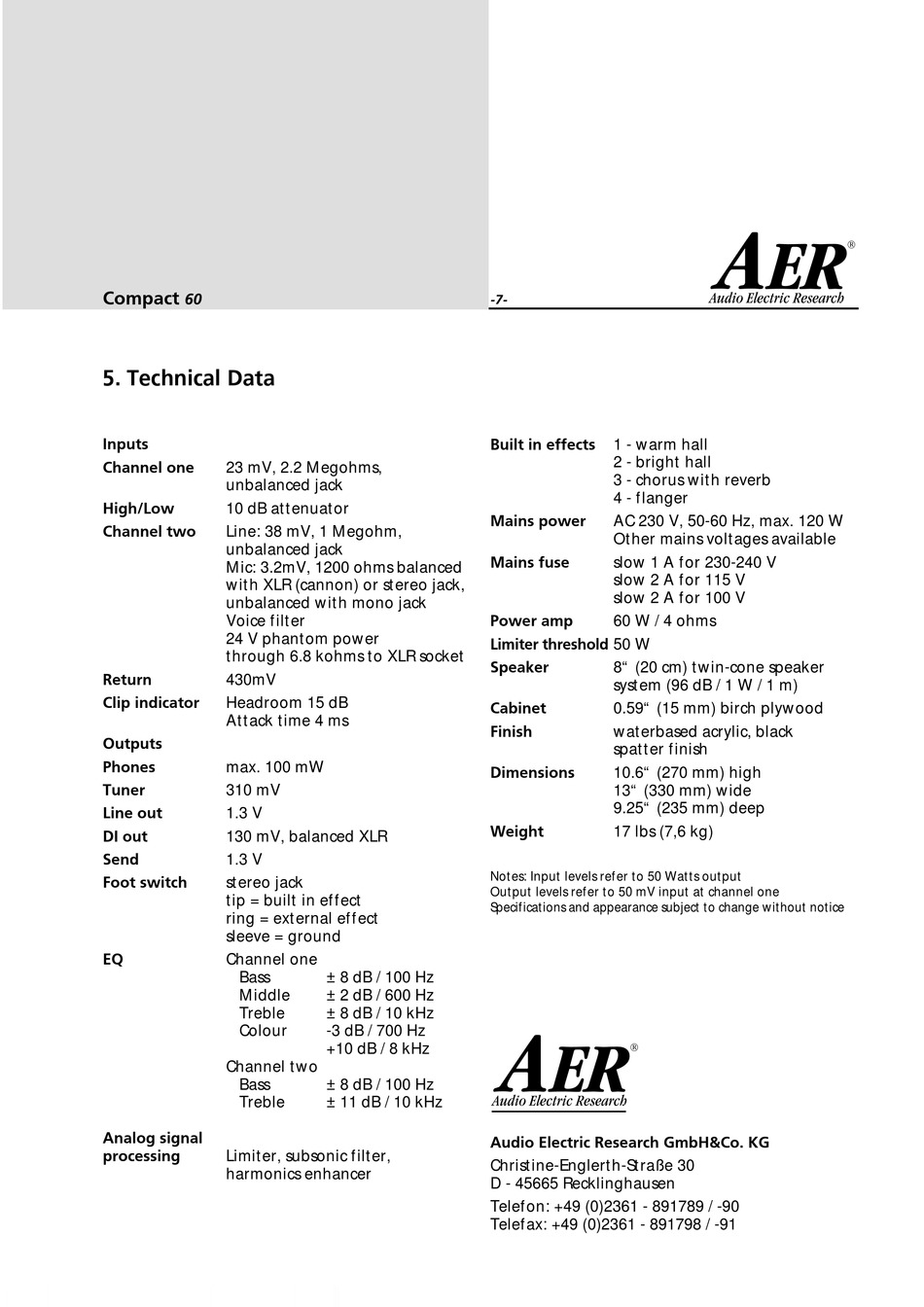

5. Technical Data
Inputs
Channel one
23 mV, 2.2 Megohms,
unbalanced jack
High/Low
10 dB attenuator
Channel two
Line: 38 mV, 1 Megohm,
unbalanced jack
Mic: 3.2mV, 1200 ohms balanced
with XLR (cannon) or stereo jack,
unbalanced with mono jack
Voice filter
24 V phantom power
through 6.8 kohms to XLR socket
Return
430mV
Clip indicator
Headroom 15 dB
Attack time 4 ms
Outputs
Phones
max. 100 mW
Tuner
310 mV
Line out
1.3 V
DI out
130 mV, balanced XLR
Send
1.3 V
Foot switch
stereo jack
tip = built in effect
ring = external effect
sleeve = ground
EQ
Channel one
Bass
Middle
Treble
Colour
Channel two
Bass
Treble
Analog signal
processing
Limiter, subsonic filter,
harmonics enhancer
-7-
Built in effects
Mains power
Mains fuse
Power amp
Limiter threshold 50 W
Speaker
Cabinet
Finish
Dimensions
Weight
Notes: Input levels refer to 50 Watts output
Output levels refer to 50 mV input at channel one
Specifications and appearance subject to change without notice
± 8 dB / 100 Hz
± 2 dB / 600 Hz
± 8 dB / 10 kHz
C
-3 dB / 700 Hz
+10 dB / 8 kHz
± 8 dB / 100 Hz
± 11 dB / 10 kHz
Audio Electric Research GmbH&Co. KG
Christine-Englerth-Straße 30
D - 45665 Recklinghausen
Telefon: +49 (0)2361 - 891789 / -90
Telefax: +49 (0)2361 - 891798 / -91
C
1 - warm hall
2 - bright hall
3 - chorus with reverb
4 - flanger
AC 230 V, 50-60 Hz, max. 120 W
Other mains voltages available
slow 1 A for 230-240 V
slow 2 A for 115 V
slow 2 A for 100 V
60 W / 4 ohms
8" (20 cm) twin-cone speaker
system (96 dB / 1 W / 1 m)
0.59" (15 mm) birch plywood
waterbased acrylic, black
spatter finish
10.6" (270 mm) high
13" (330 mm) wide
9.25" (235 mm) deep
17 lbs (7,6 kg)
