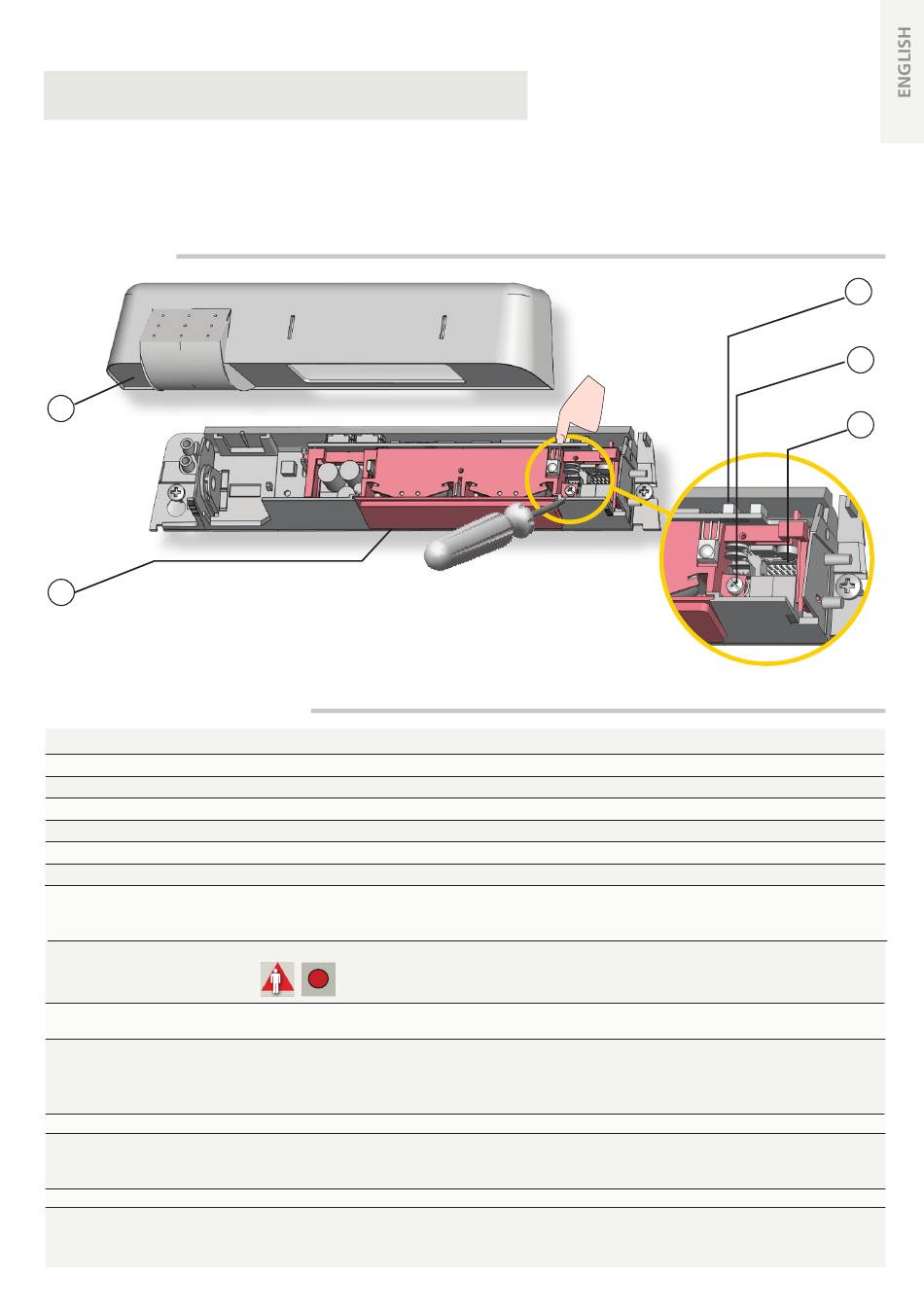

DESCRIPTION
2
1
1. IR-prism
2. cover
3. push buttons

TECHNICAL SPECIFICATIONS

Supply voltage:
Power consumption:
Mounting height:
Sensitivity of the test input:
Temperature range:
Degree of protection:
Expected lifetime:
Norm conformity:
Detection mode:
Technology:
Angle:
Output:
Hold time output signal:
Response time on test request:
Other use of the device is outside the permitted purpose
and can not be guaranteed by the manufacturer.
The manufacturer cannot be held responsible for incorrect
installations or inappropriate adjustments of the sensor.
4.
(2 m)
5.
12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10%
< 3 W
1.8 m to 4 m
(< 3 m to enable DIN 18650-conformity)
< 1 V : Log. L; > 10 V: Log. H (max. 30 V)
-25 °C to +55 °C
IP54
5 years
EMC 2004/108/EC; MD 2006/42/EC; EN 12978
EN ISO 13849-1:2008 Performance Level «c» CAT. 2
(under the condition that the door control system monitors the sensor at least once per door cycle)
RED
LED
Presence
Typical response time: <128 ms (max. 500 ms)
Active infrared with background analysis
Spot diameter: 0.1 m (typ)
Number of spots: 24 or 12 by curtain
Number of curtains: 2
From -4 ° to +4 ° (adjustable)
Solid-state-relay (free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
0.3 s to 1 s (not adjustable)
Typical: < 15 ms (max. 25 ms)
SLIDER radar
Safety sensor
for automatic sliding doors
IR-curtain ajustment screw
main connector
(to be operated from SELV compatible power supplies only)
Specifications are subject to changes without prior notice.
ACG9459
3
4
5
All values measured in optimal conditions.
