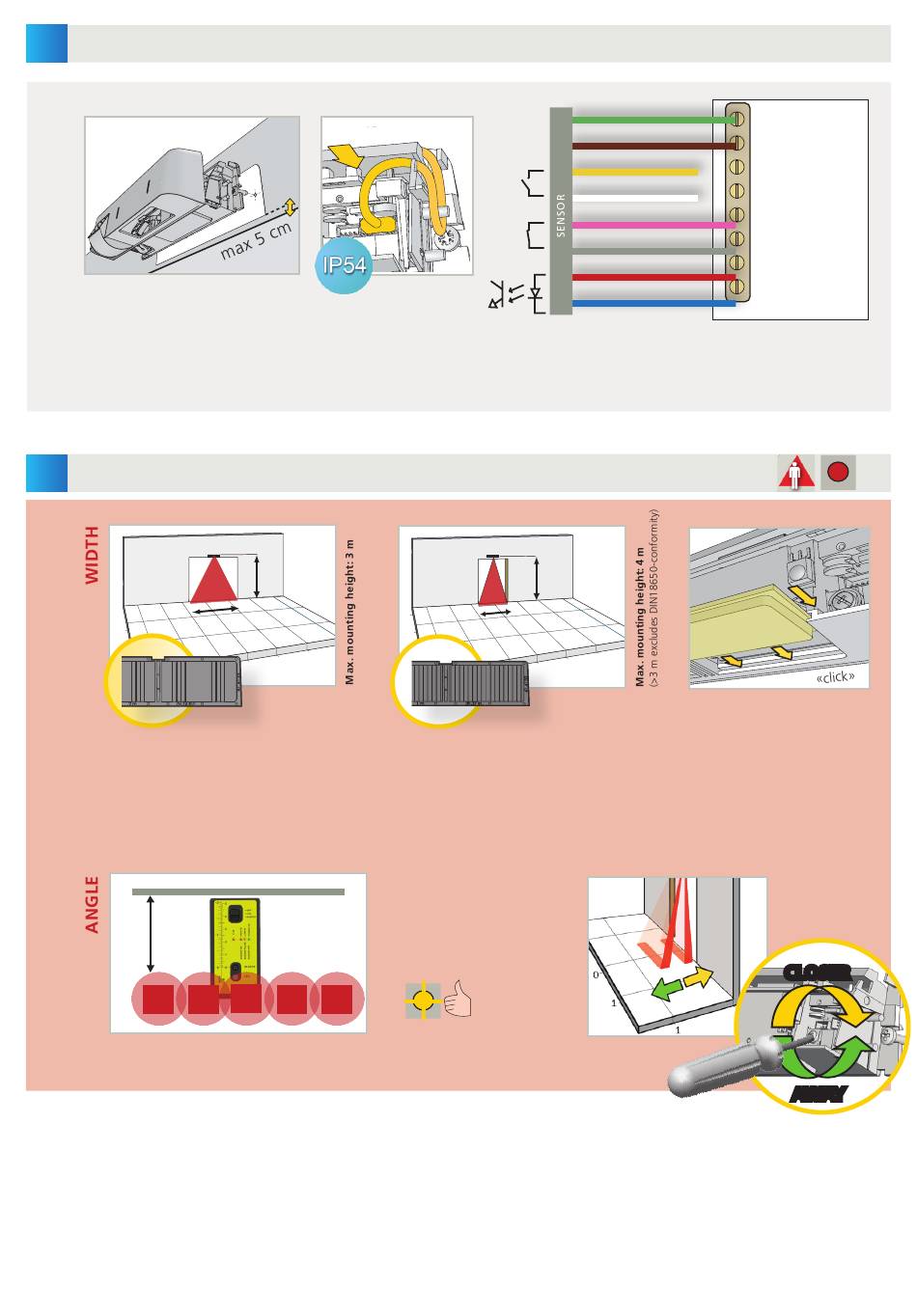

MOUNTING & WIRING
The door control unit and the door cover profile must be correctly earthed.
2
INFRARED FIELD - SAFETY
0
1
2
2
3
3
Detection field width indicated according to conditions defined in DIN 18650 and including dimension of test body CA.
max.
5 cm
:
TIP
Launch an ASSISTED SETUP to verify wiring, position of the curtains and correct functioning of the sensor.
It is recommended to clean the optical parts at least once a year or more often if required due to environmental conditions.
H
W
3
2
1
0
1
H
W
2.20 m
2.35 m
2 m
2.50 m
2.50 m
3.00 m
2.70 m
DOOR
12-24 V
AC-DC
*
*
* Output status when sensor is operational
** Connect to launch an assisted setup.
*** For compliance with DIN 18650, connection
to door controller test output is required.
H
0
W
1
2
1
0
1
2
3
3
H
2.20 m
1 m
2.50 m
3.00 m
Check position of
IR-curtains with
Spotfinder and
adjust if necessary.
ORANGE
GREEN
POWER SUPPLY
BROWN
YELLOW**
OPENING INPUT
OPENS DOOR
WHITE**
PINK
SAFETY INPUT
KEEPS DOOR OPEN
GREY
RED***
TEST
BLUE***
OUTPUT
3
2
W
1.35 m
1.50 m
1.70 m
RED
LED
CLOSER
AWAY
