M-tech LED SET Montageanleitung Seite 12

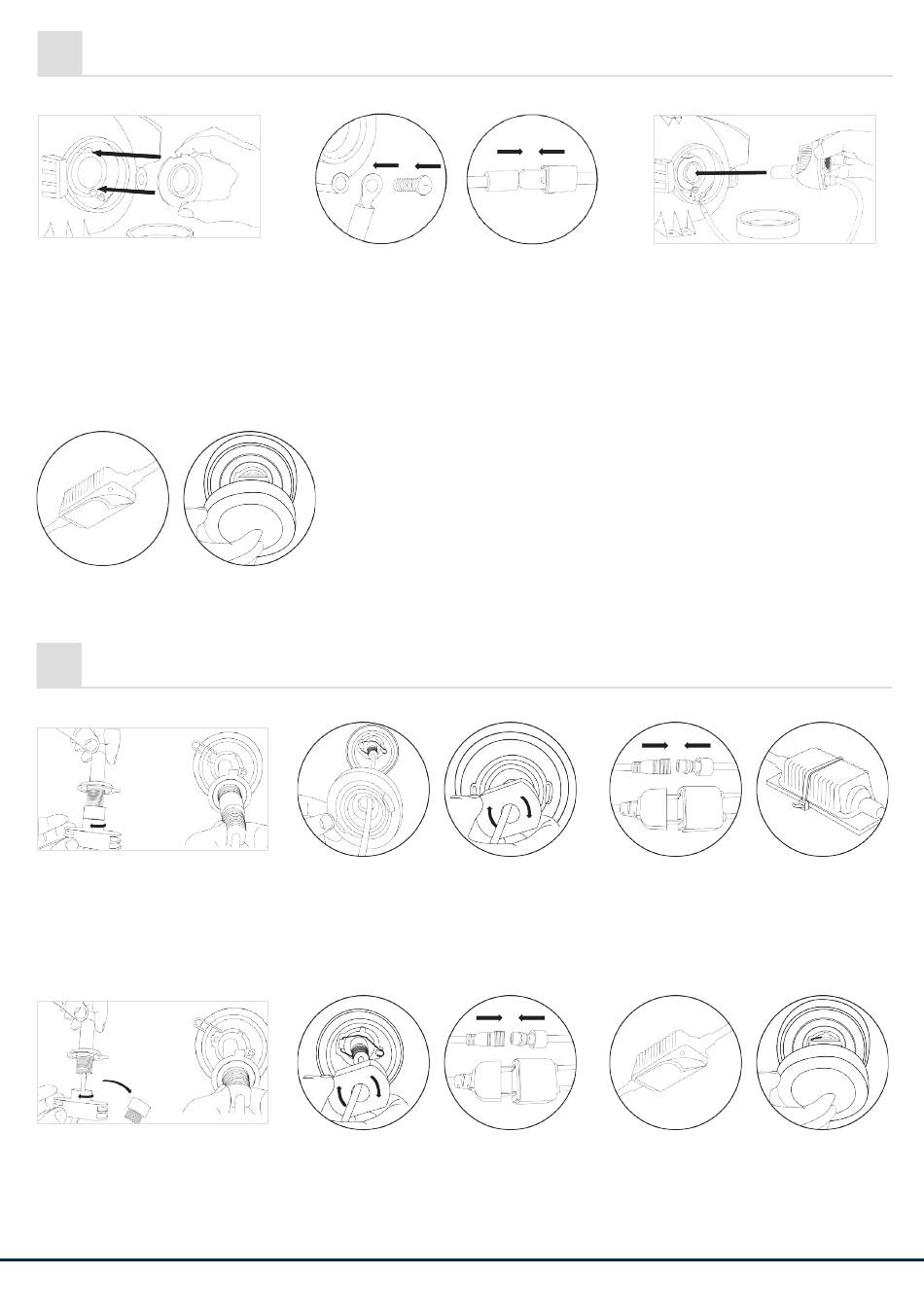

6 Single beam H3, H1
6.1 Inside heat sink installation
1. Remove the dust cover and
the original bulb. Remove the
LED bulb base and put it in
place of the original bulb. Use a
screwdriver to install the LED bulb
base. In case of the H1 LED bulb
– put it into the hole and secure
it with a circlip.
4. Use a proper double-sided tape to in-
stall the control box. Put the dust cover
back on.
7
SINGLE BEAM H7
7.1 Outside heat sink installation
1. Twist the bracket anticlockwise
to take off the LED bulb base and
fit the LED bulb into the socket.
7.2 Inside heat sink installation
1. Twist the bracket anticlockwise
to take off the LED bulb base and
fit the LED bulb into the socket.
| 12
2. H3 bulb: Attach the cathode wire ring
to the original screw hole.
H1 bulb: Connect the cathode wire to
any metal part of the vehicle, and then
connect the original anode pins.
2. Pull the cable through the original dust
cover and put back the LED bulb base.
Twist it clockwise and make sure the LED
bulb is fitted properly.
2. Put the LED bulb base back on and
turn it clockwise. Make sure the LED bulb
is fitted properly. Plug it into the original H7
plug. Make sure the cathode and anode
are properly connected.
3. Insert the original H3 LED bulb
into the hole. Turn it clockwise
and make sure the LED bulb is
fitted properly.
3. Connect to the original plug. Use a zip-tie
or double-sided tape to mount the control
box.
3. Insert the entire control box into the lamp
housing. Use a proper double-sided tape to
mount the control box inside the lamp hous-
ing. Put the dust cover back on.
