ASROCK ALiveNF5-VSTA R2.0 Handbuch Seite 2

Motherboard L Motherboard L

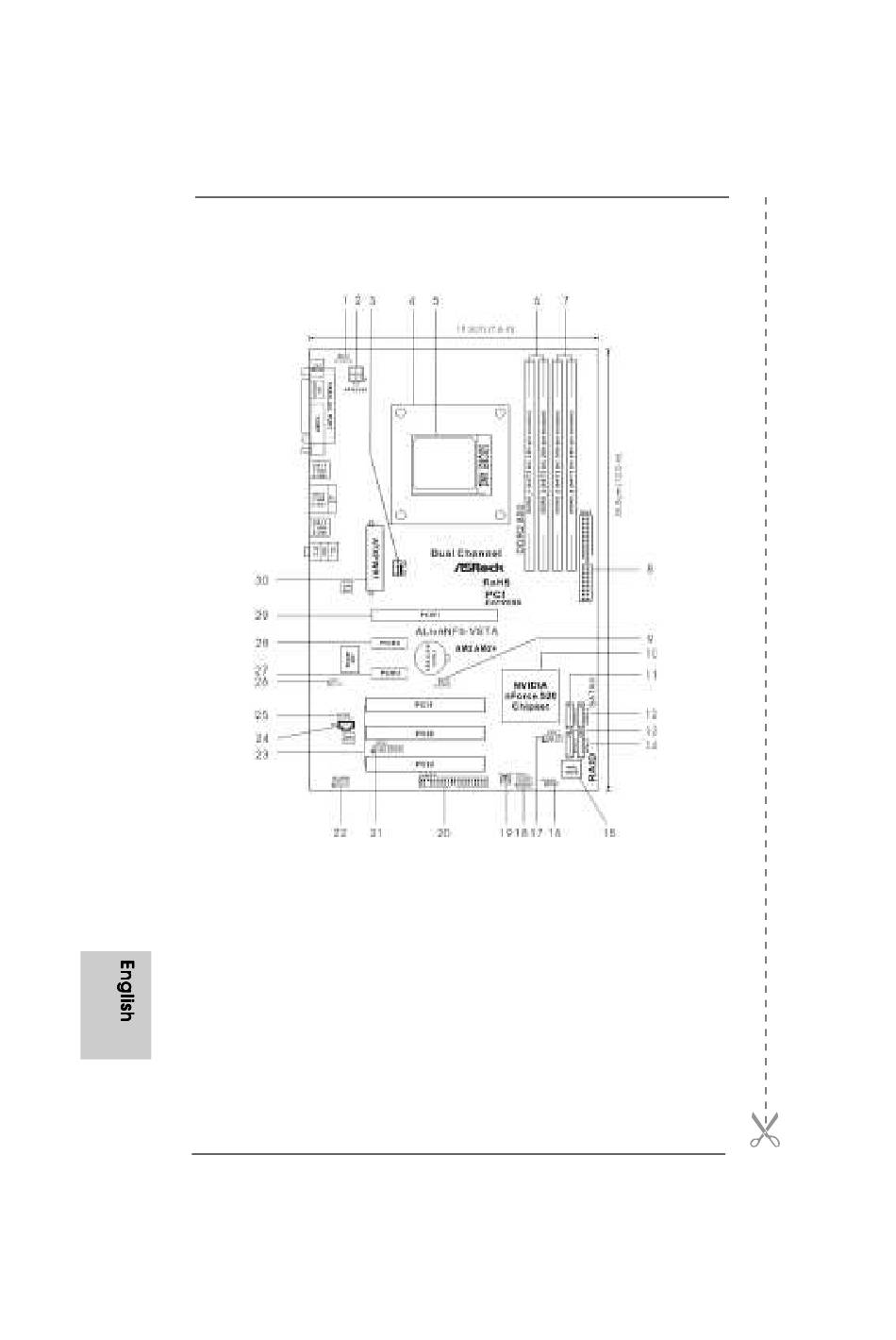

Motherboard L Motherboard Layout Motherboard L
1 PS2_USB_PW1 Jumper
2 ATX 12V Power Connector (ATX12V1)
3 CPU Fan Connector (CPU_FAN1)
4 CPU Heatsink Retention Module
5 AM2 940-Pin CPU Socket
6 2 x 240-pin DDR2 DIMM Slots
(Dual Channel A: DDRII_1, DDRII_2; Yellow)
7 2 x 240-pin DDR2 DIMM Slots
(Dual Channel B: DDRII_3, DDRII_4; Orange)
8 Primary IDE Connector (IDE1, Blue)
9 Clear CMOS Jumper (CLRCMOS1)
10 NVIDIA nForce 520 Chipset
11 Third SATAII Connector (SATAII_3, Red)
12 Fourth SATAII Connector (SATAII_4, Red)
13 Primary SATAII Connector (SATAII_1, Red)
14 Secondary SATAII Connector (SATAII_2, Red) 30
15 SPI Flash
2 2 2 2 2
ASRock
ayout ayout
ayout ayout
16 Chassis Speaker Header (SPEAKER 1)
17 USB 2.0 Header (USB6_7, Blue)
18 System Panel Header (PANEL1)
19 Chassis Fan Connector (CHA_FAN1)
20 Floppy Connector (FLOPPY1)
21 WiFi/E Header (WIFI/E)
22 Front Panel Audio Header (HD_AUDIO1)
23 PCI Slots (PCI1- 3)
24 Internal Audio Connector: CD1 (Black)
25 HDMI_SPDIF Header (HDMI_SPDIF1)
26 DeskExpress Hot Plug Detection Header
(IR1)
27 PCI Express x1 Slot (PCIE3)
28 PCI Express x1 Slot (PCIE2)
29 PCI Express x16 Slot (PCIE1)
ATX Power Connector (ATXPWR1)
ALiveNF5-VSTA Motherboard
