Power supply

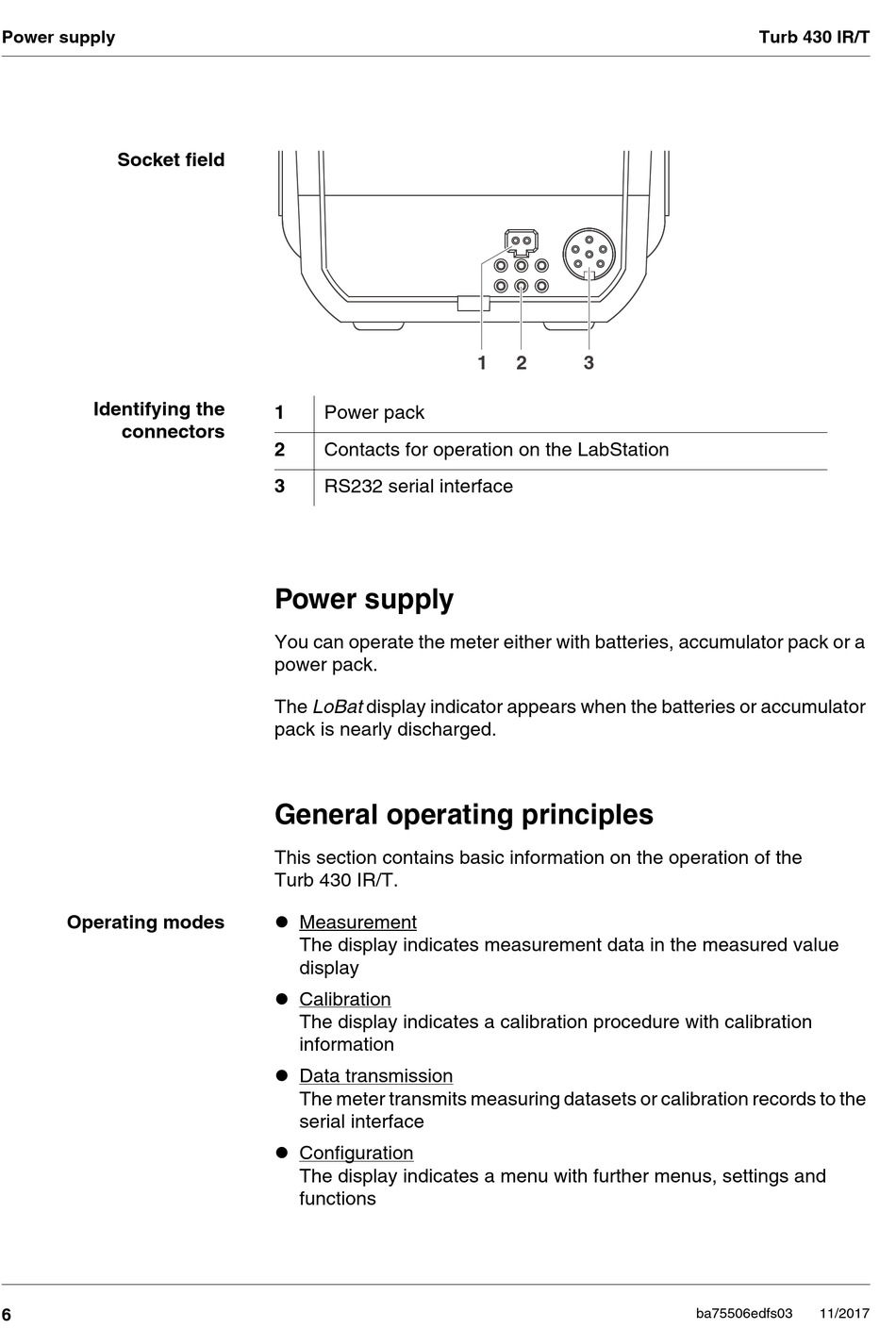

Socket field
Identifying the
connectors
Operating modes
6
1 Power pack
2 Contacts for operation on the LabStation
3 RS232 serial interface
Power supply
You can operate the meter either with batteries, accumulator pack or a
power pack.
The LoBat display indicator appears when the batteries or accumulator
pack is nearly discharged.

General operating principles

This section contains basic information on the operation of the
Turb 430 IR/T.
 Measurement
The display indicates measurement data in the measured value
display
 Calibration
The display indicates a calibration procedure with calibration
information
 Data transmission
The meter transmits measuring datasets or calibration records to the
serial interface
 Configuration
The display indicates a menu with further menus, settings and
functions
1 2 3
Turb 430 IR/T
ba75506edfs03 11/2017
