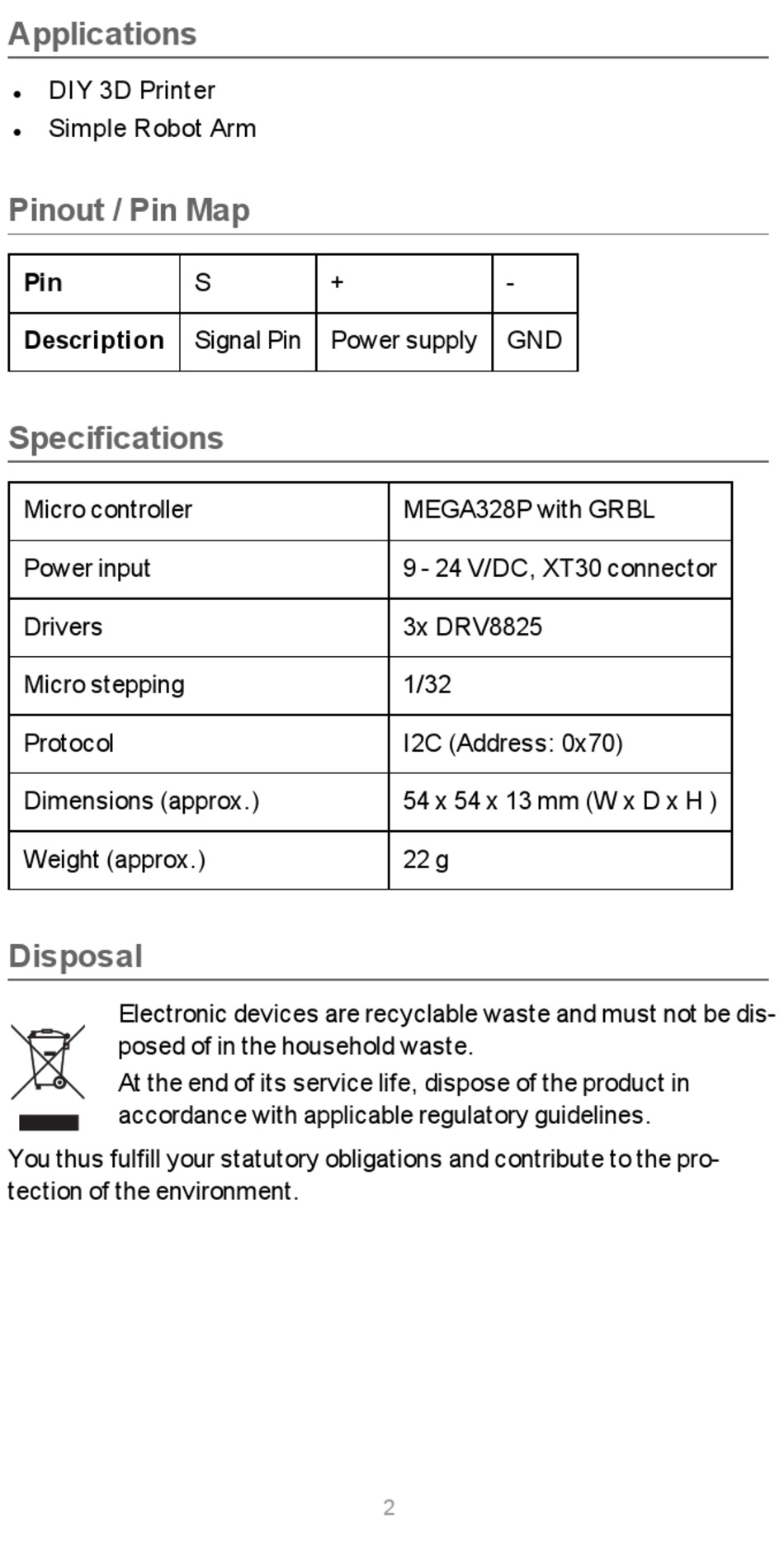

Specifications - Maker Factory M5Stack Kurzanleitung

Applications
DIY 3D Printer
l
Simple Robot Arm
l
Pinout / Pin Map
Pin
Description

Specifications

Micro controller
Power input
Drivers
Micro stepping
Protocol
Dimensions (approx.)
Weight (approx.)
Disposal
Electronic devices are recyclable waste and must not be dis-
posed of in the household waste.
At the end of its service life, dispose of the product in
accordance with applicable regulatory guidelines.
You thus fulfill your statutory obligations and contribute to the pro-
tection of the environment.
S +
Signal Pin Power supply
-
GND
MEGA328P with GRBL
9 - 24 V/DC, XT30 connector
3x DRV8825
1/32
I2C (Address: 0x70)
54 x 54 x 13 mm (W x D x H )
22 g
