11 Secure the manifold with securing clip (item g) in its mounting
again.
12 Insert the two connection couplings (item b) through the
retaining plate into the lateral mountings.
13 Secure the two connection couplings with securing clips (item c)
in their mountings.
14 Insert the sealing plug (item e) in the upper mounting.
15 Secure the sealing plug with securing clip (item d).

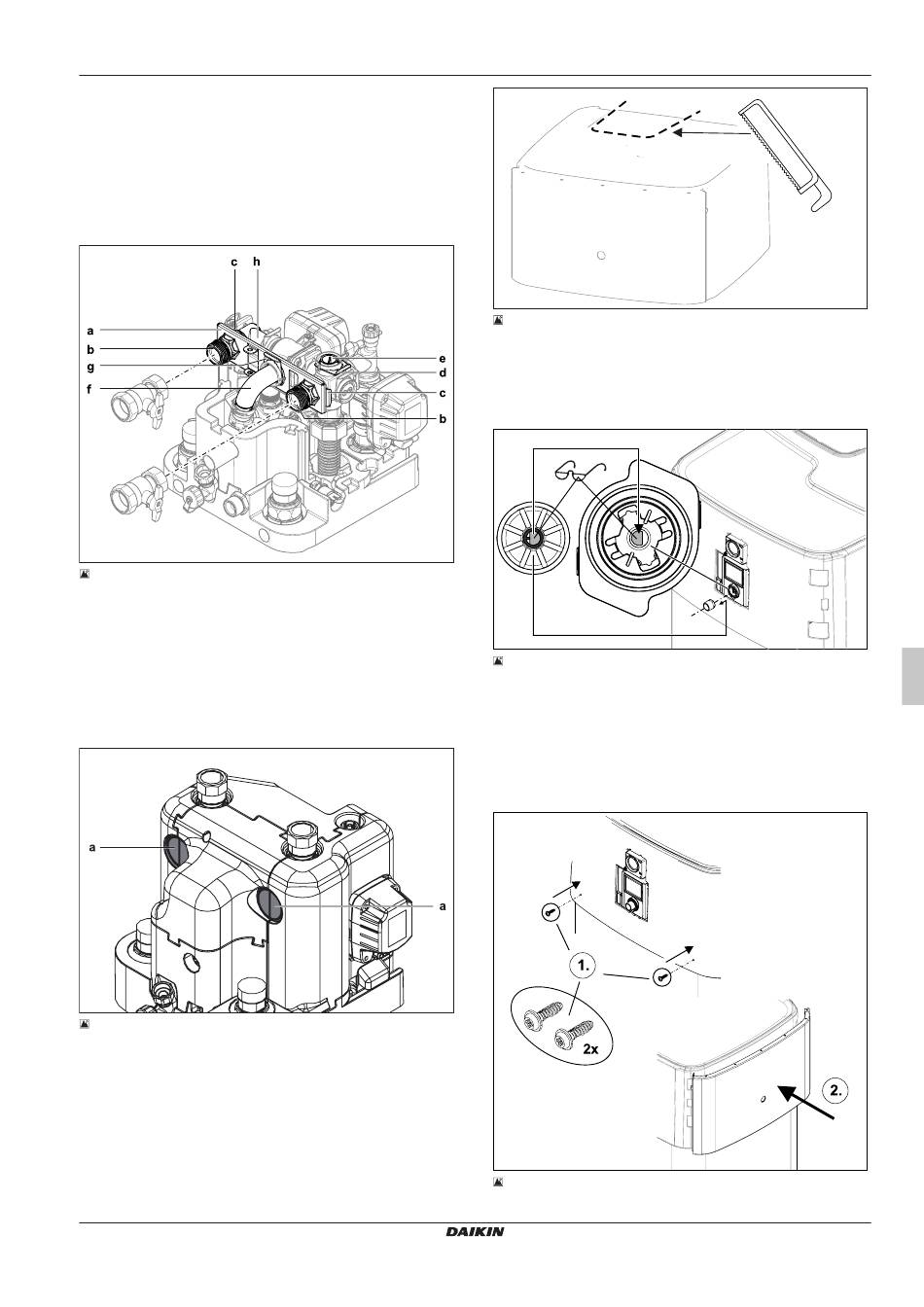

3‒18 Heating inflow and return flow connections aligned to the
rear
a Retaining plate
b Connection coupling
c Securing clip of the connection couplings
d Securing clip of the sealing plug
e Sealing plug
f Manifold
g Securing clip of the manifold
h Elbow
16 Cut out side openings in the thermal insulation (item a) using a
suitable tool.
3‒19 Cut-out in thermal insulation
a Side openings in the thermal insulation
3.4.8

Making the hood opening

1 With the heating inflow and return flow directed upwards: Cut
the hood along the perforation with a suitable tool.
Daikin Altherma EHS(X/H)(B)-D
Daikin Altherma 3 R ECH₂O
008.1451099_00 – 07/2020
3 Set-up and installation
3‒20 Making the hood opening
3.4.9 Installing the rotary switch of the
controller
1 Place the rotary switch on the rotary switch holder of the RoCon
+ HP1 and press it on.
3‒21 Putting on the rotary switch
3.4.10

Securing the hood

After the installation is fully completed:
1 Attach the screws for fixing the hood (accessory bag).
2 Place the front cover straight over the rotary switch of the
RoCon+ HP1. Press on the top and bottom until the front
screen is securely engaged again.
3‒22 Securing the hood
Installation and operating manual
17
