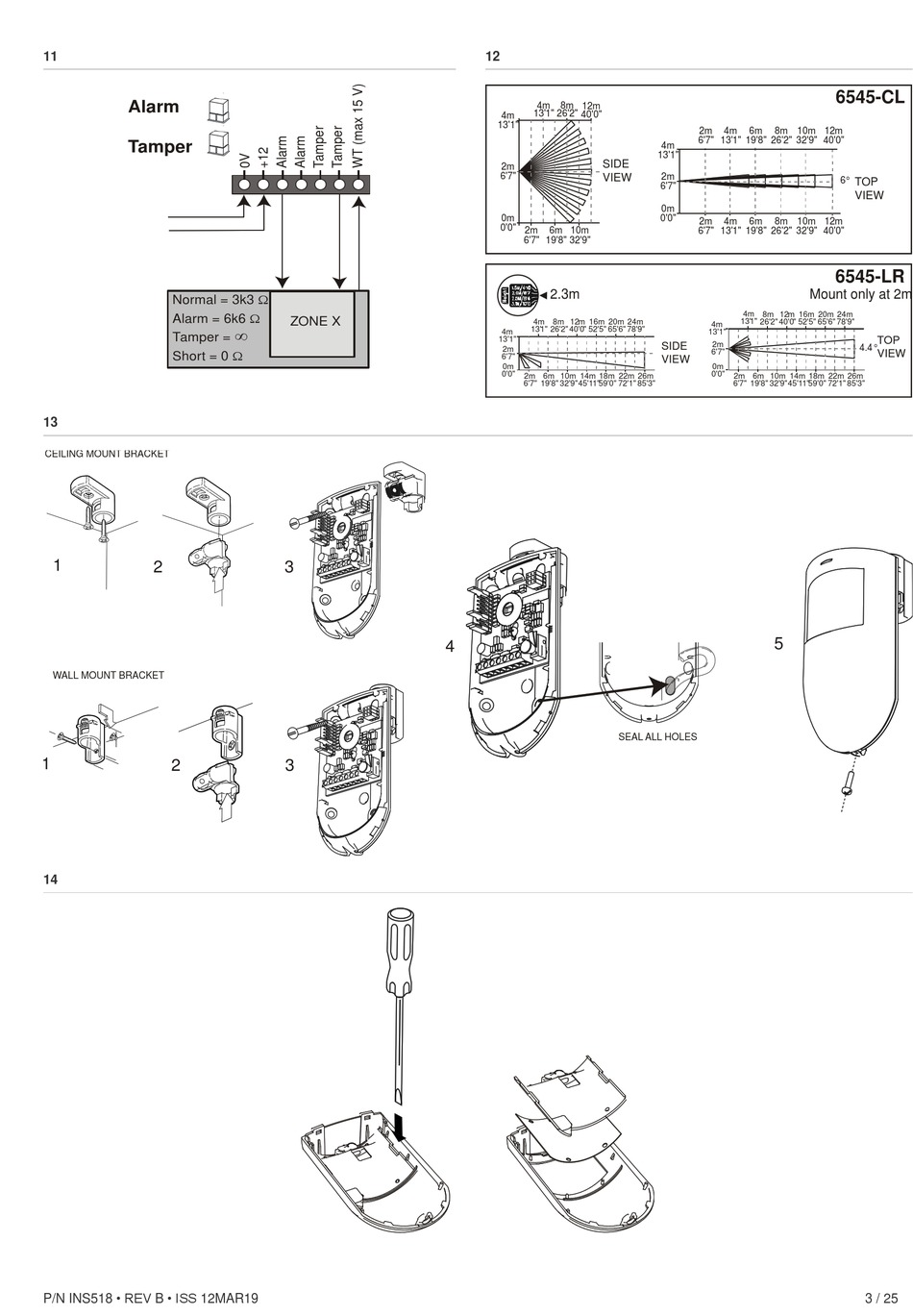

Interlogix 6540 Installationsanleitungen Seite 3

11
Alarm
Tamper
Normal = 3k3 
Alarm = 6k6 
Tamper =
Short = 0 
13
CEILING MOUNT BRACKET
1
2
WALL MOUNT BRACKET
1
2
14
P/N INS518 • REV B • ISS 12MAR19
ZONE X

3
3
12
4m 8m
12m
13'1" 26'2" 40'0"
4m
13'1"
SIDE
2m
6'7"
VIEW
0m
0'0"
2m 6m 10m
6'7" 19'8" 32'9"
2.3m
4m 8m 12m 16m 20m
13' 1 "
26'2" 40'0" 52'5" 65'6"
4m
13'1"
2m
6'7"
0m
0'0"
2m 6m 10m 14m 18m
6'7" 19'8" 32'9" 45'11" 59'0" 72'1"
1
4
2m 4m 6m 8m
6'7" 13'1" 19'8" 26'2"
4m
13'1"
2m
6'7"
0m
0'0"
2m 4m 6m 8m
6'7" 13'1" 19'8" 26'2"
4m 8m 12m
24m 13' 1 " 26'2" 40'0"
4m
78'9"
13'1"
2m
SIDE
6'7"
VIEW
0m
0'0"
22m 26m 2m 6m 10m 14m
85'3" 6'7" 19'8" 32'9" 45'11"
5
SEAL ALL HOLES
6545-CL
10m 12m
32'9" 40'0"
6°
TOP
VIEW
10m 12m
32'9" 40'0"
6545-LR
Mount only at 2m
16m 20m 24m
52'5" 65'6" 78'9"
TOP
4.4°
VIEW
18m 22m 26m
59'0" 72'1" 85'3"
3 / 25
