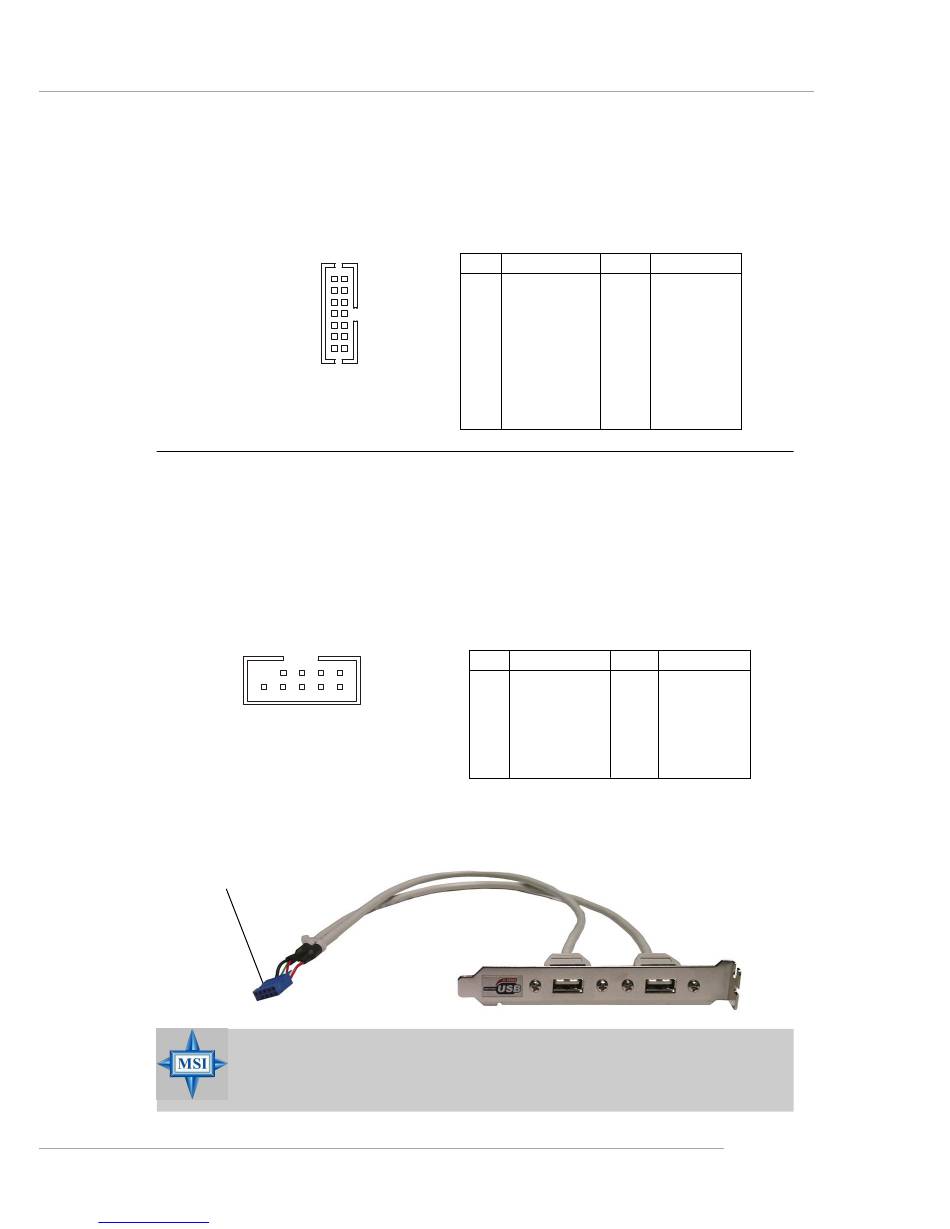

FWH/LPC Debugging Pin Header: JLPC1
Front USB Connectors: JUSB1 & JUSB2
USB 2.0 technology increases data transfer rate up to a maximum throughput of
480Mbps, which is 40 times faster than USB 1.1, and is ideal for connecting high-
speed USB interface peripherals such as USB HDD, digital cameras, MP3 players,
printers, modems and the like.
Downloaded from
www.Manualslib.com
The pin header is for internal debugging only.
13
14
JLPC1
2
1
The mainboard provides two standard USB 2.0 pin headers JUSB1 & JUSB2 .
9
10
JUSB1, JUSB2
(USB 2.0)
Connected to JUSB1
or JUSB2
MSI Reminds You...
Note that the pins of VCC and GND must be connected correctly or
it may cause some damage.
manuals search engine
JLPC1 Pin Definition
PIN
SIGNAL
1
LCLK
3
LRST#
5
LAD0
7
LAD1
9
LAD2
1 1
LAD3
13
LFRAME#
JUSB1 & JUSB2 Pin Definition
PIN
SIGNAL
1
1
VCC
2
3
USB0-
5
USB0+
7
GND
9
Key (no pin)
Hardware Setup
PIN
SIGNAL
2
Key (no pin)
4
VCC3
6
FID0_LRST
8
VCC5
10
Key (no pin)
12
GND
14
GND
PIN
SIGNAL
2
VCC
4
USB1-
6
USB1+
8
GND
10
USBOC
Optional USB 2.0 Bracket
E-2-19
