MS-7028 ATX Mainboard

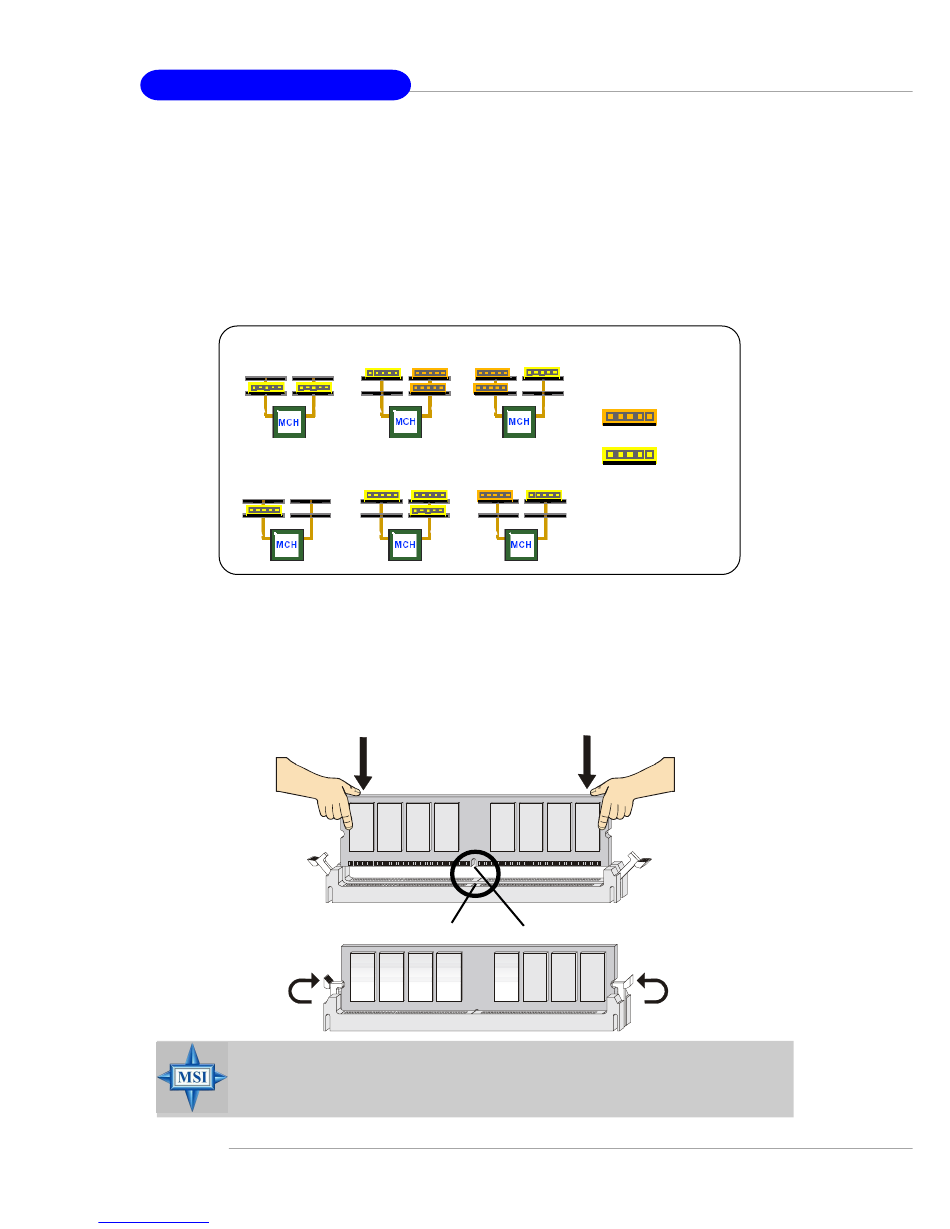

Memory Module Population Rules
maximum size of 1GB. Users can install either single- or double-sided modules to
meet their own needs. Please note that each DIMM can work respectively for
single-channel DDR, while both channels (in different color) populated
with same amount of memory size will work as dual-channel DDR, no matterh
how many DIMM modules are populated.
Installing DDR2 Modules
1.
2.
3.
E-2-8
Downloaded from
www.Manualslib.com
Install at least one DIMM module on the slots. Each DIMM slot supports up to a
Below are the example of single-channel/dual-channel DDR modes.
Dual-channel mode
Single-channel mode
The DDR2 DIMM has only one notch on the center of module. The module will
only fit in the right orientation.
Insert the DIMM memory module vertically into the DIMM slot. Then push it in
until the golden finger on the memory module is deeply inserted in the socket.
The plastic clip at each side of the DIMM slot will automatically close.
MSI Reminds You...
You can barely see the golden finger if the module is properly in-
serted in the socket.
manuals search engine
Notch
Volt
x MB
(ex: 128 MB)
2x MB
(ex: 256 MB)
