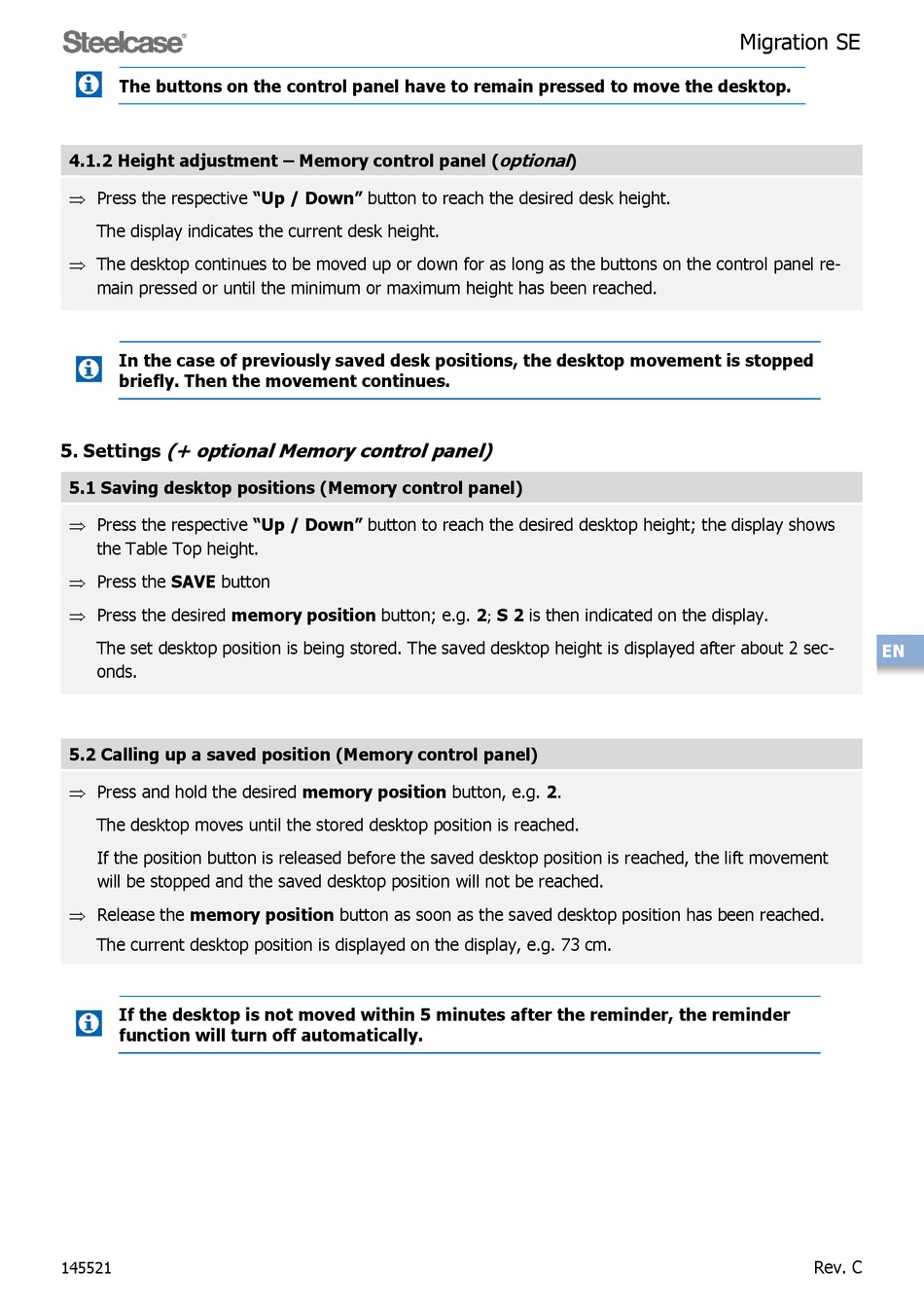

Steelcase Migration SE Kurzanleitung Seite 5

The buttons on the control panel have to remain pressed to move the desktop.
4.1.2 Height adjustment – Memory control panel (
 Press the respective "Up / Down" button to reach the desired desk height.
The display indicates the current desk height.
 The desktop continues to be moved up or down for as long as the buttons on the control panel re-
main pressed or until the minimum or maximum height has been reached.
In the case of previously saved desk positions, the desktop movement is stopped
briefly. Then the movement continues.
(+ optional Memory control panel)
5. Settings
5.1 Saving desktop positions (Memory control panel)
 Press the respective "Up / Down" button to reach the desired desktop height; the display shows
the Table Top height.
 Press the SAVE button
 Press the desired memory position button; e.g. 2
The set desktop position is being stored. The saved desktop height is displayed after about 2 sec-
onds.
5.2 Calling up a saved position (Memory control panel)
 Press and hold the desired memory position button, e.g. 2.
The desktop moves until the stored desktop position is reached.
If the position button is released before the saved desktop position is reached, the lift movement
will be stopped and the saved desktop position will not be reached.
 Release the memory position button as soon as the saved desktop position has been reached.
The current desktop position is displayed on the display, e.g. 73 cm.
If the desktop is not moved within 5 minutes after the reminder, the reminder
function will turn off automatically.
145521
optional
)
S 2 is then indicated on the display.
;
Migration SE
EN
Rev. C
