1.5 PROTECT LED

The PROTECT LED illuminates to indicate that the energy
management system of your VC 1200 or VC 2400 is active.
If the speaker cables connected to the amp have a short or
the impedance of the connected speakers is too low for the
amp, the PROTECT LED will flash at intervals of
approximately one second to indicate an external fault
with the cables or speakers.
Your VC 1200/VC 2400 power amp itself is protected
against every conceivable passive load. It can even be
used continuously if there is a short circuit without
damaging the power amp circuitry.
2
A
OUTPUTS
BRIDGE
B
MINIMUM LOAD
230 V~/50 - 60 Hz
LED ON = 4 Ω
600 VA
LED OFF = 2 Ω
EACH CHANNEL
BRIDGE MODE:
REFER TO MANUAL
6
2
230 V~
OUTPUTS
50 - 60 Hz
A
800 VA
G E R M A N Y
BR
ID
GE
B
MAX. POWER
CONSUMPTION: Min. LOAD 4 OHMS/CHANNEL
8 OHMS BRIDGED
1440 VA
7
3
GROUND GROUND STRAP
IMPORTANT:
INPUT 'B' ONLY ACTIVE
IN STEREO MODE
USE INPUT
G E R M A N Y
'A' WITH
MONO +
BRIDGE
MODES
MAX. POWER CONSUMPTION: 1440 VA
C A U T I O N !
TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD DON´T EXPOSE THIS APPLIANCE TO MOISTURE
OR RAIN. DO NOT OPEN CASE; NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
C A U T I O N !
TO PREVENT THE RISK OF FIRE AND SHOCK HAZARD DON´T EXPOSE THIS APPLIANCE TO MOISTURE
OR RAIN. DO NOT OPEN CASE; NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

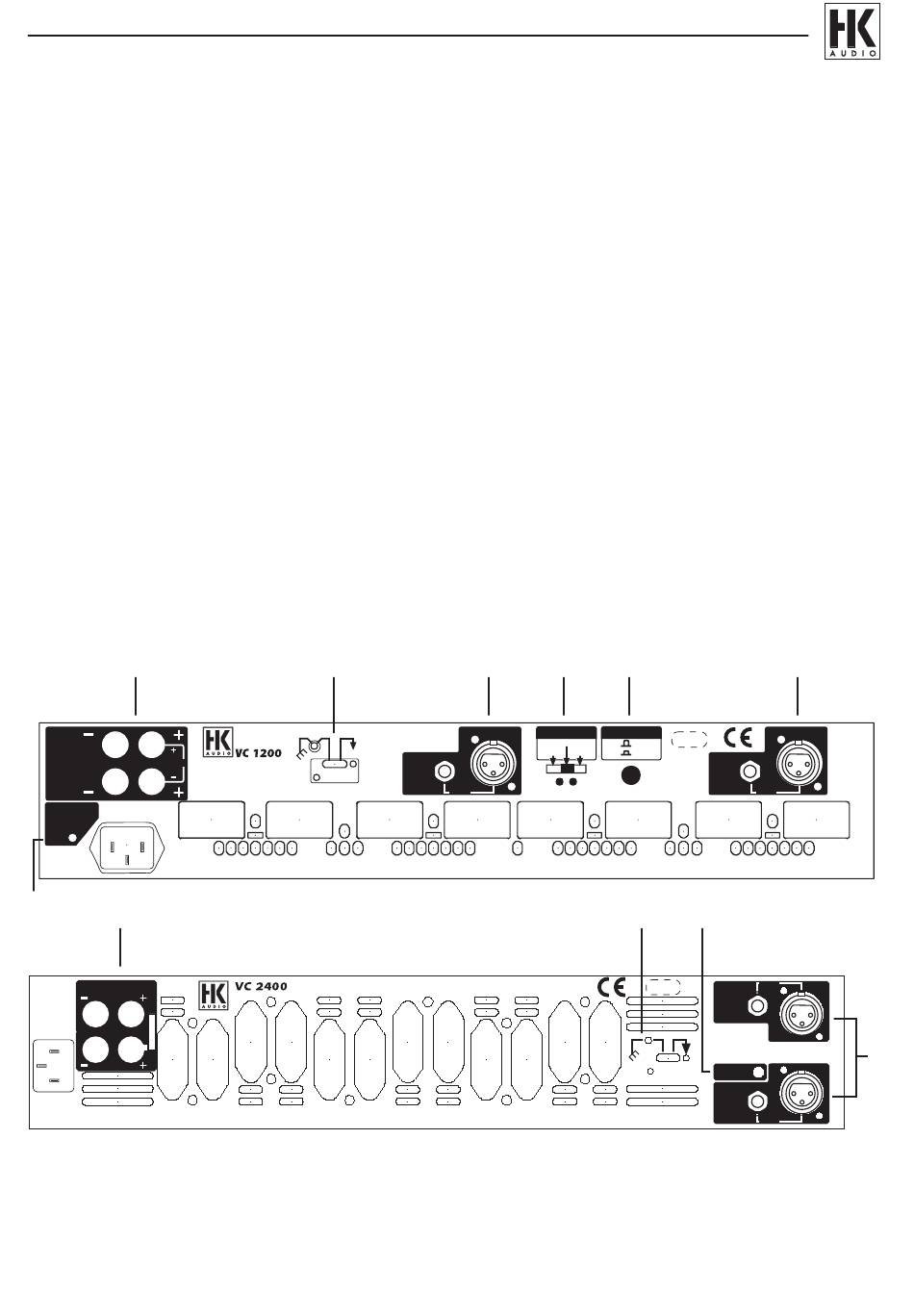

2. REAR PANEL

2.1 INPUTS

Each channel (A + B) of your VC 1200/VC 2400 power
amp is equipped with one balanced XLR jack and one
stereo 1/4" jack, connected in parallel.
These parallel circuits enable you to drive several power
amps simultaneously. Simply patch the unoccupied input
of the first amp to the second amp's input, and so forth. To
avoid extraneous noise and loss of level , use balanced
cables for this power amp signal chain. You can avoid
ground hum by removing the ground strap for all amps
after the first one in the signal chain (refer to Section 2.3).
