Seite 1

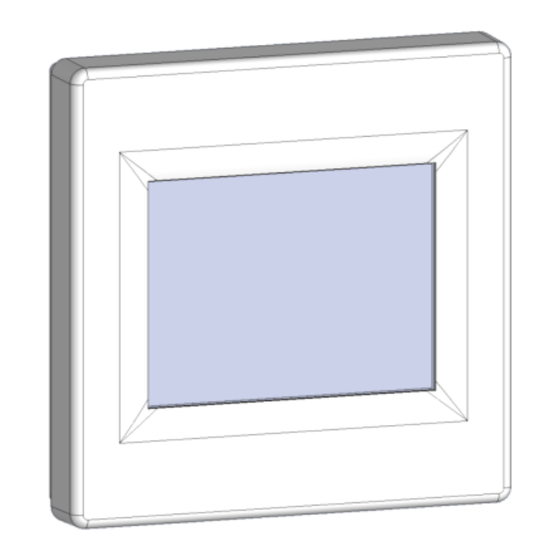

Installationsanweisung für den Thermostat TFT TFT thermostat installation guide Instalační příručka pro termostat TFT Инструкция по установке термостата TFT Min 20cm 60mm 91 mm Max 2,5mm² x 4 or 5 NTC10k (25°C) PPLIMP13577Aa rev:23/07/2012...
Seite 2
L : красный или коричневый N : блю You can drive directly up to 3600W (16A) with your thermostat TFT (fig1), above this power you must install an external power relay (contactor) to optimize and keep a good regulation (fig2).
