MIDI Module and functions

On/Off
• MIDI data send on/off
On / O
Volume
Volume
• Sending of MIDI CC 07
o o
I
I
18 NUMA Concert by Studiologic®
Downloaded from www.Manualslib.com
Display - Value+/-
• Display and adjustment of the MIDI parameter's values
• Selection of the MIDI zone
MIDI Module
[Demo]
Program Change
Bank Select LSB
Bank Select MSB
On / O
Channel
Preset / Value
Octave
EDIT Zone A-Lower B-Upper Split Point Function
EDIT/Zone
• Selection of the MIDI parameter
• Zone On/Off in combination with A-Lower, B-Lower

MIDI connection

Masterkeyboard
functions: A/B zones
manuals search engine
A-Lower, B-Upper
Sound Bank
Transpose Octave Lower Octave Upper Master Tune Velocity Strings Res
Chorus
Phaser
Concert GrandStage Grand E Piano 1 E Piano 2 E Piano 3 Clavi
Rotary
Panic Hold Expression Free Wheel System Store
Tremolo
Pad 1 Pad 2 Organ 1 Organ 2 Bass 1 Bass 2 Select Assign

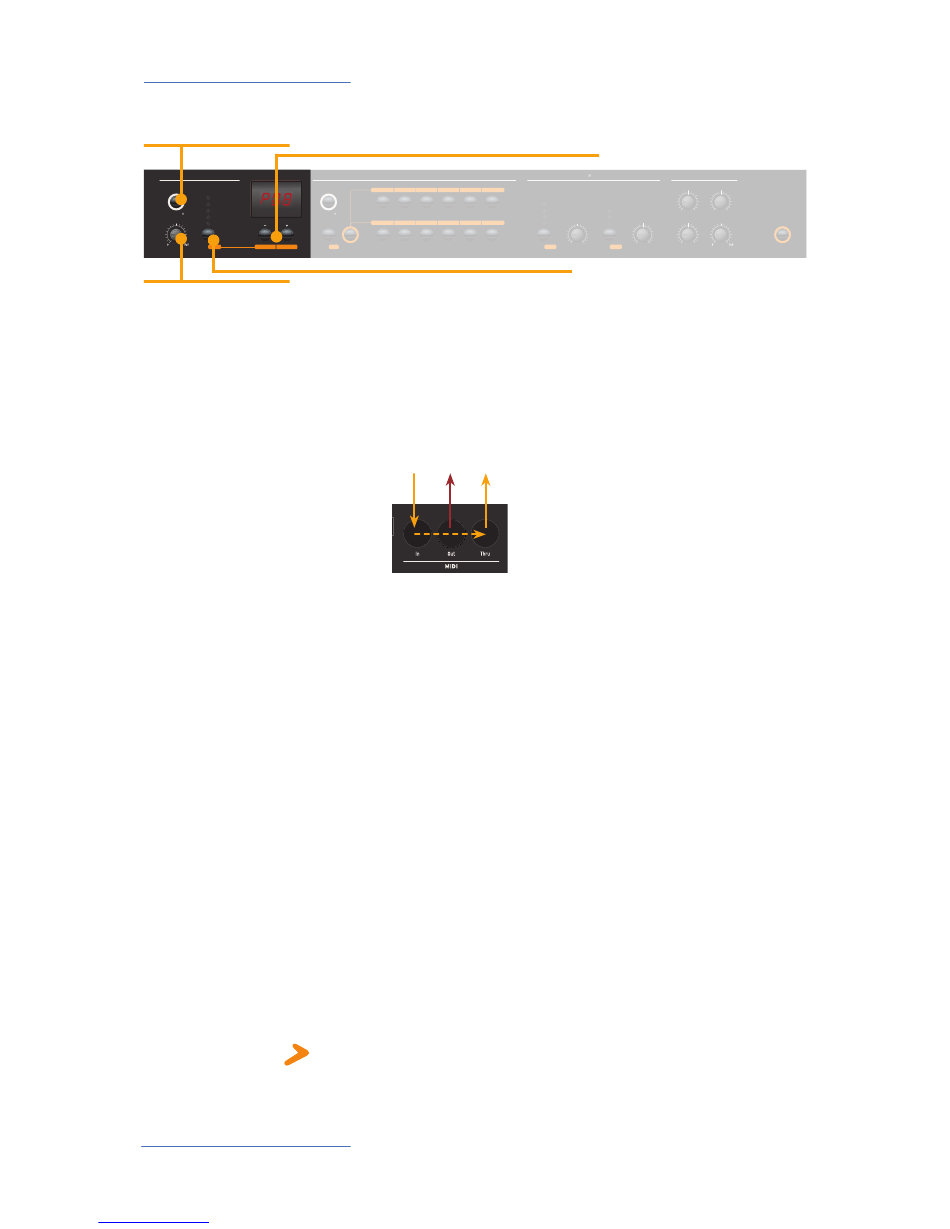

MIDI (Musical Instruments Digital Interface) is a stan-
dard for data transmission between sound modules, sy-
thesizers, computers and music software. The MIDI Out
of a device can be connected with the MIDI In of another
device, while incoming data arriving at the MIDI In are dupli-
cated at the MIDI Thru socket.
The NUMA Concert sends MIDI data on the MIDI Out and at
the same time via the USB port. MIDI data are received via
MIDI In.
By using the MIDI Module On/Off button, you can enable the
NUMA Concert to send all MIDI data at the MIDI Out and via
USB.
The Volume knob sends the MIDI Control 7 (MIDI volume)
To enable or disable the two MIDI Zones, press the related
buttons (A-Lower, B-Upper) keeping pressed the
button.
By pressing Edit, the two MIDI Zone buttons alternatively
light up and the display shows L and U; it's now possible to
select the MIDI zone to be edited, by pressing the related
B-Upper) and access to the edit functions:
button (A-Lower,
Program Change, Bank LSB, Bank MSB, Channel and Octave.
To select the desired Edit function, press repeatively the Edit
Button. The value of the actual function will be shown in the
display and can be adjusted with Value +/-.
MIDI Channel 16: On MIDI Channel 16 the instrument sends all the MIDI
data of all buttons, knobs and keys you activate.
