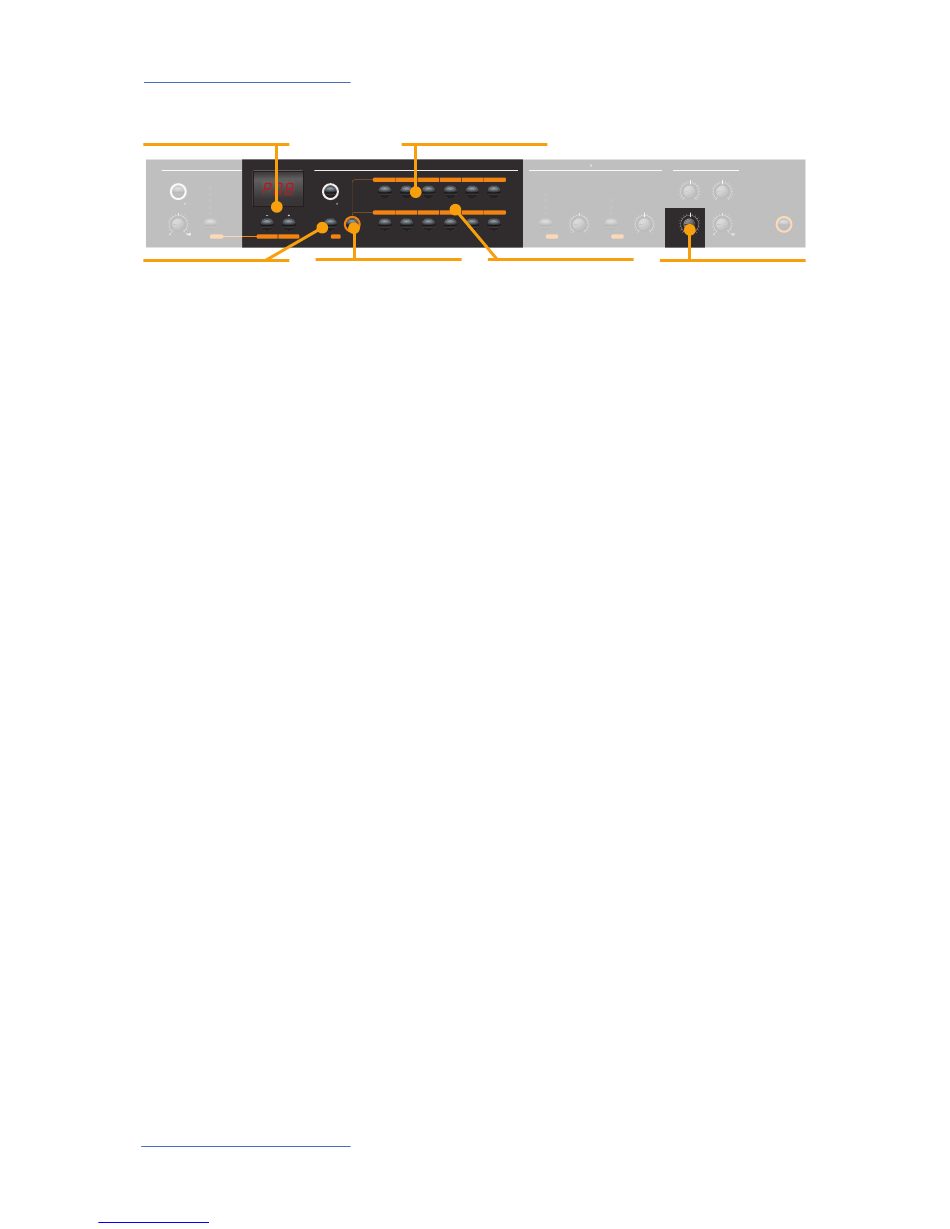

Layer / Split 10 10; Split Point - Studiologic numaconcert Bedienungsanleitung

Layer / Split
Display - Value +/-
• Display and adjustment of
Split point / Octave
On / O
Volume
Split - Point
• Split mode on/off
• Split point definition
10 NUMA Concert by Studiologic®
Downloaded from www.Manualslib.com
MIDI Module
[ D em o]
Program Change
Bank Select LSB
Bank Select MSB
On / O
Channel
Preset / Value
Octave
EDIT Zone A-Lower B-Upper Split Point Function
Function
• in combination with
Lower - Upper
Layer
Split
Split / Layer level

Split point

Octave Lower /
Octave Upper
manuals search engine
Octave Lower - Upper
• Octave of Layer 1/2 or lower
and upper split zone
Sound Bank
Modulation
Transpose Octave Lower Octave Upper Master Tune Velocity Strings Res
Chorus
Phaser
Concert GrandStage Grand E Piano 1 E Piano 2 E Piano 3 Clavi
Rotary
Panic Hold Expression Free Wheel System Store
Tremolo
Pad 1 Pad 2 Organ 1 Organ 2 Bass 1 Bass 2 Select Assign
Sound Bank
Octave
• Layer sound selection
and Point
To play two sounds at the same time over the whole
keyboard, press both corresponding sound selection buttons
at the same time (eg Concert Grand & Pad 2).
Playing two sounds in different keyboard zones is called Split
mode. Press Split to activate this function and the button
will light up. For the upper split zone the last selected sound
is automatically used. If you want to change the sound for
the upper split zone just press the corresponding button
(eg Stage Grand). To change the sound for the lower split
zone, press Split and the corresponding sound select button
at the same time (e.g. Split & Bass 1). If you want to quit the
split mode and use all 88 keys to play the same sound, press
Split again. Please note: that the same Split point will also be
activated on the Midi Zones (Lower to left / Upper to right)
Use the Balance knob of the Output section to adjust the re-
lative level of layer 1 to 2 or the lower to upper split zone.
To adjust the split point, press Function & Point. The display
shows the actual selected split point. Using the keyboard (or
Value +/-), select the highest note for the lower split zone.
Press Function again to keep the adjustment and quit the
split point mode.
You can select the octave transposition for both layer and
split zones independently. Use Function &
make adjustments for the lower split zone / layer 2 and Func-
tion & Octave Upper for the upper split zone / layer 1.
No octave transposition is indicated by 0 in the display.
Available values are -3 to 3 an. That means that adjustments
of ±3 octaves are possible.
Press Function again to keep the adjustment and quit the oc-
tave lower / upper mode.
