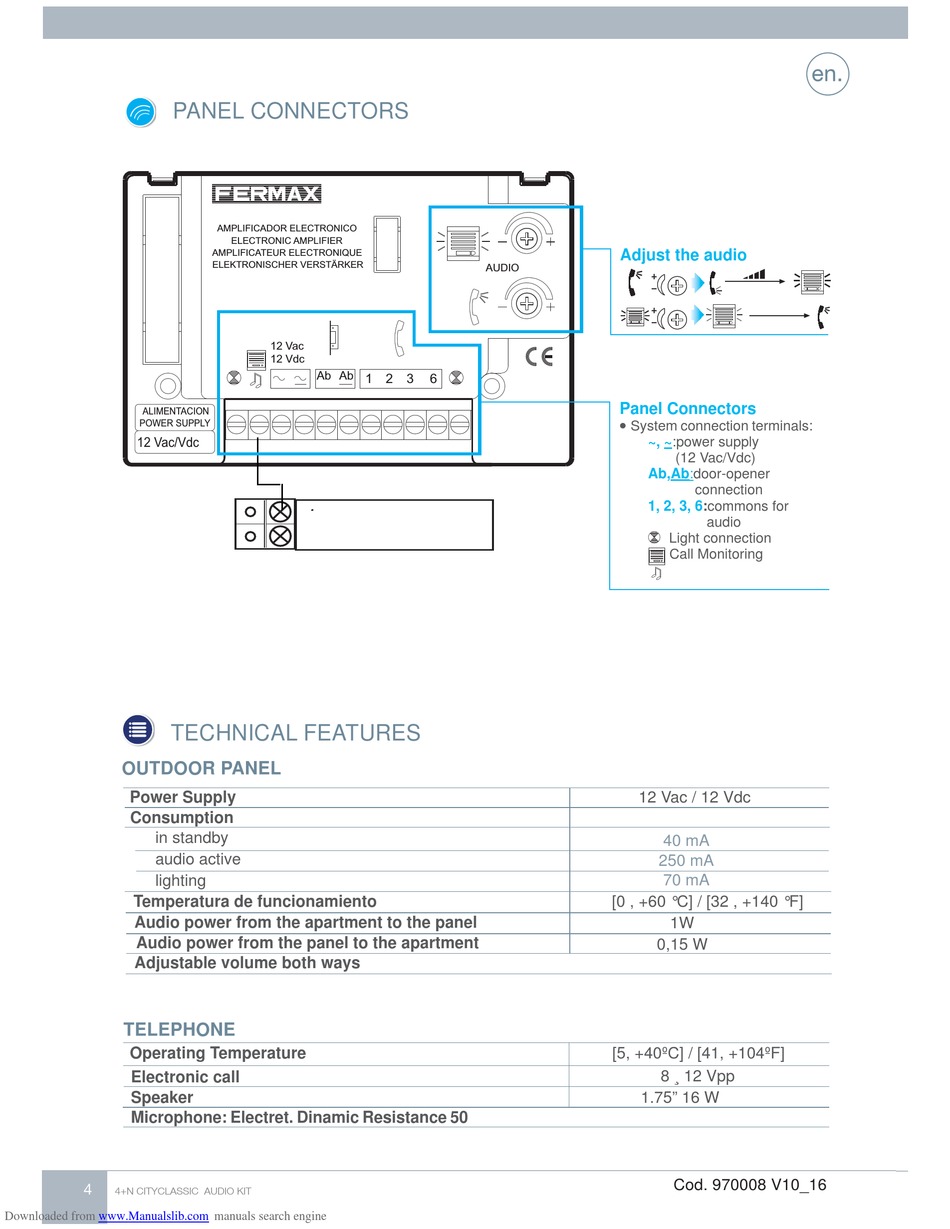

Panel Connectors; Technical Features - Fermax CITYCLASSIC 4 + n Schnellstartanleitung

PANEL CONNECTORS

ALIMENTACION
POWER SUPPLY
12 Vac/Vdc

TECHNICAL FEATURES

OUTDOOR PANEL
Power Supply
Consumption
in standby
audio active
lighting
Temperatura de funcionamiento
Audio power from the apartment to the panel
Audio power from the panel to the apartment
Adjustable volume both ways
TELEPHONE
Operating Temperature
Electronic call
Speaker
Microphone: Electret. Dinamic Resistance 50
4
4+N CITYCLASSIC AUDIO KIT
Downloaded from www.Manualslib.com
CITYLINE
AMPLIFICADOR ELECTRONICO
ELECTRONIC AMPLIFIER
AMPLIFICATEUR ELECTRONIQUE
ELEKTRONISCHER VERSTÄRKER
12 Vac
12 Vdc
Ab Ab
1 2 3
1
manuals search engine
EXT.
INT.
COD.98600
AUDIO
6
Adjust the audio
Panel Connectors

System connection terminals:
~, ~:power supply
(12 Vac/Vdc)
Ab,Ab:door-opener
connection
1, 2, 3, 6:commons for
audio
Light connection
Call Monitoring
12 Vac / 12 Vdc
40 mA
250 mA
70 mA
[0 , +60 °C] / [32 , +140 °F]
1W
0,15 W
[5, +40ºC] / [41, +104ºF]
8 ¸ 12 Vpp
1.75" 16 W
Cod. 970008 V10_16
