Appendix

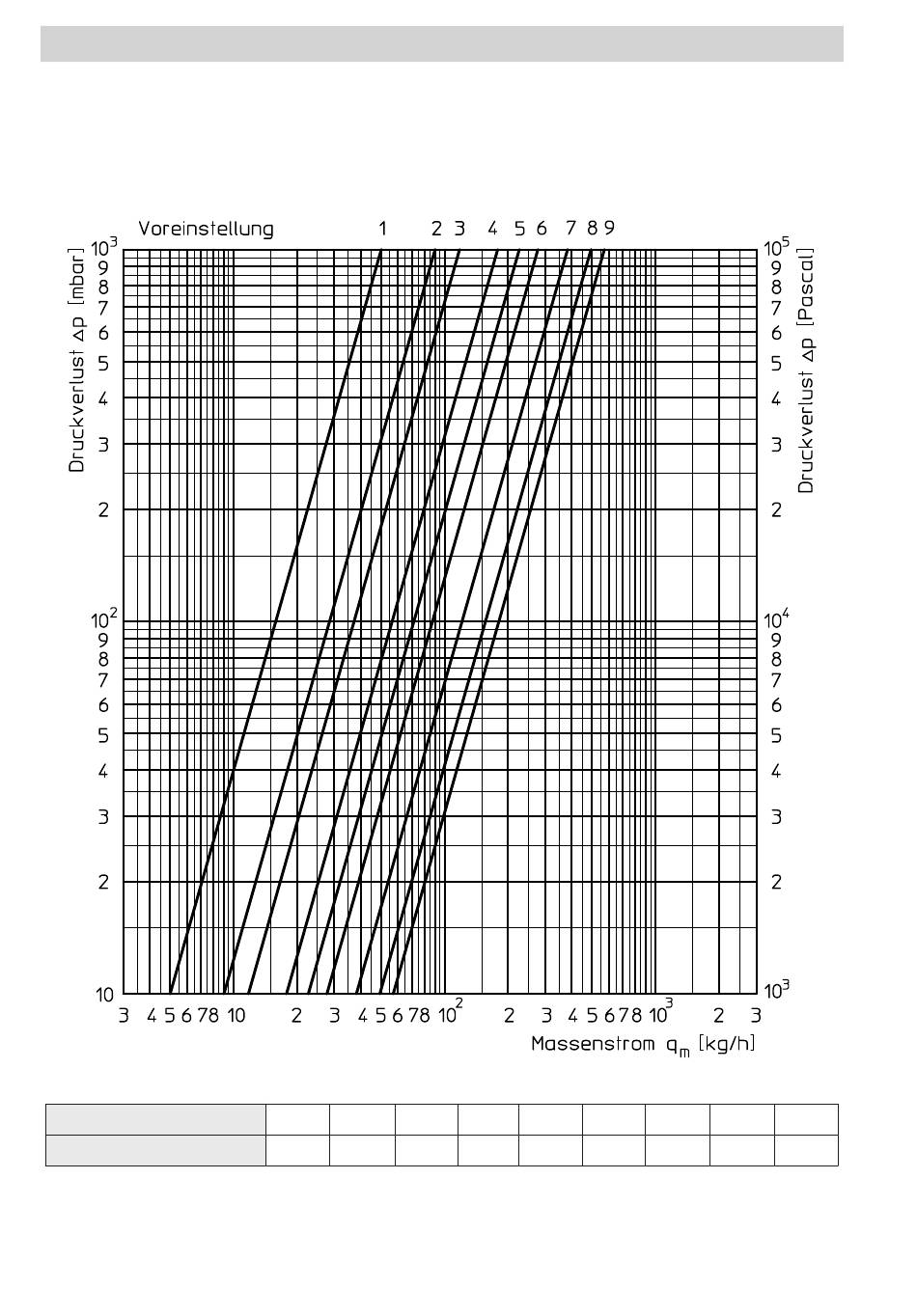

11.2 Pressure loss chart

Pressure loss chart "Unibox T vario" with valve
insert "AV 9" at 2 K P-deviation.
Presetting
kv value
28
1 2 3
0.05 0.09 0.12
4 5 6
0.18 0.22 0.28
Unibox T vario
7 8 9
0.38 0.49 0.57
