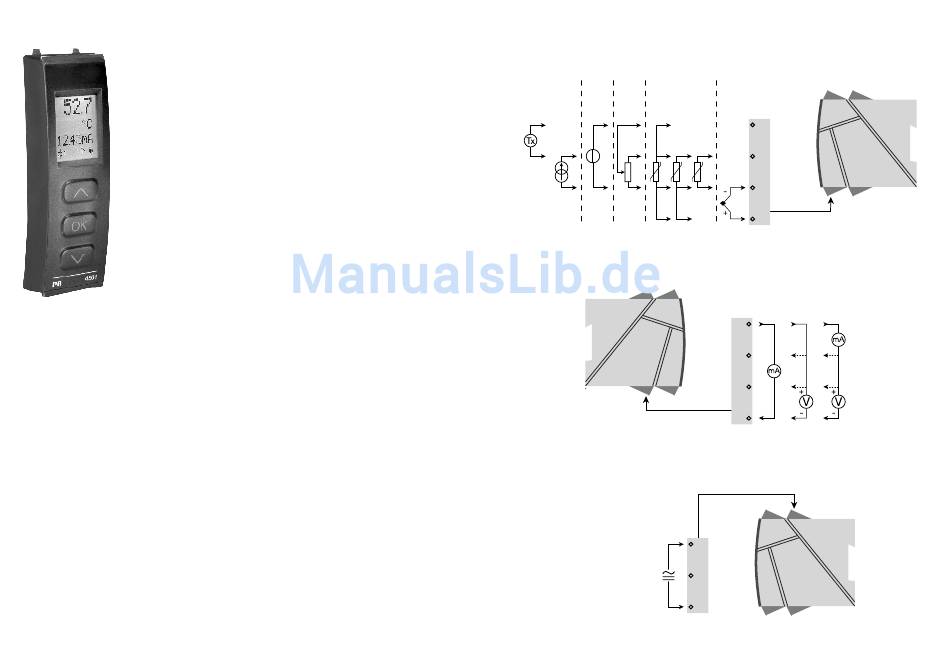

PR 4501 DISPLAY / PROGRAMMING FRONT

Functionality:
The simple and easily understandable PReasy menu struc-
ture and the explanatory help texts guide you effortless ly
and automatically though the configuration steps, thus
making the product very easy to use. Functions and configu-
ration options are described in the section "Configuration /
operating the function keys".
Application:
• Communications interface for modification of operational parameters in 4114.
• Can be moved from one 4114 module to another and download the configu-
ration of the first transmitter to subsequent transmitters.
• Fixed display for visualisation of process data and status.
Technical characteristics:
• LCD display with 4 lines; Line 1 (H=5.57 mm) shows input signal, line 2
(H=3.33 mm) shows units, line 3 (H=3.33 mm) shows analogue output or tag
no. and line 4 shows communication status.
• Programming access can be blocked by assigning a password. The password
is saved in the transmitter in order to ensure a high degree of protection
against unauthorised modifications to the configuration.
Mounting / installation:
• Click 4501 onto the front of 4114.
32 32

Applications

Input signals:
Volt
Potenti-
Current age ometer RTD and lin. R
Connect., wires
+
+
-
-
Output signals:
Supply:
33
21.6...253 VAC
32
or
19.2...300 VDC
31
TC
44
43
42
41
Analogue, 0/4...20 mA and voltage
12
+
-
14
+
10 V 10 V
-
1 V 1 V
13
11
33 33
