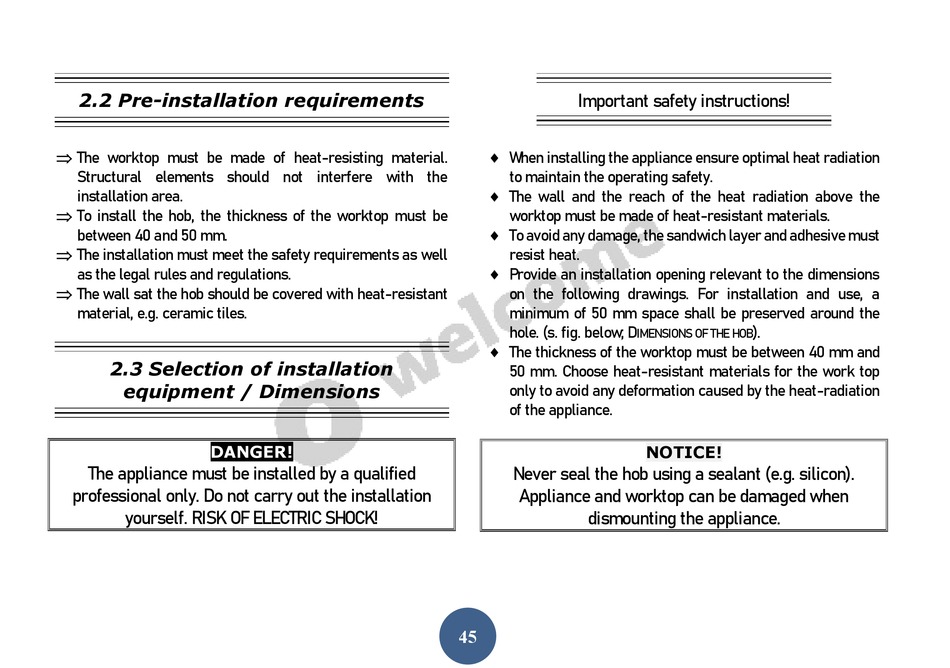

2.2 Pre-installation requirements

 The worktop must be made of heat-resisting material.
Structural elements should not interfere with the
installation area.
 To install the hob, the thickness of the worktop must be
between 40 and 50 mm.
 The installation must meet the safety requirements as well
as the legal rules and regulations.
 The wall sat the hob should be covered with heat-resistant
material, e.g. ceramic tiles.
2.3 Selection of installation
equipment / Dimensions
DANGER!
The appliance must be installed by a qualified
professional only. Do not carry out the installation
yourself. RISK OF ELECTRIC SHOCK!
Important safety instructions!
 When installing the appliance ensure optimal heat radiation
to maintain the operating safety.
 The wall and the reach of the heat radiation above the
worktop must be made of heat-resistant materials.
 To avoid any damage, the sandwich layer and adhesive must
resist heat.
 Provide an installation opening relevant to the dimensions
on the following drawings. For installation and use, a
minimum of 50 mm space shall be preserved around the
hole. (s. fig. below; D
IMENSIONS OF THE HOB
 The thickness of the worktop must be between 40 mm and
50 mm. Choose heat-resistant materials for the work top
only to avoid any deformation caused by the heat-radiation
of the appliance.
Never seal the hob using a sealant (e.g. silicon).
Appliance and worktop can be damaged when
dismounting the appliance.
45
).
NOTICE!
