E-M BRAKE OPTION INSTALLATION (Continued)
• Set the E-M Brake Option as shown
• For CS A E-M Brake Option, set also
in Fig. 1 for fast or slow activation.
for 45% or 90% to suit the brake coil.
Fast Brake Activation
Case Size A E-M Brake Option
Slow Brake Activation
90%
Case Size A E-M Brake Option
45%
Case Size B E-M Brake Option - Fast Brake Activation
Case Size B E-M Brake Option - Slow Brake Activation

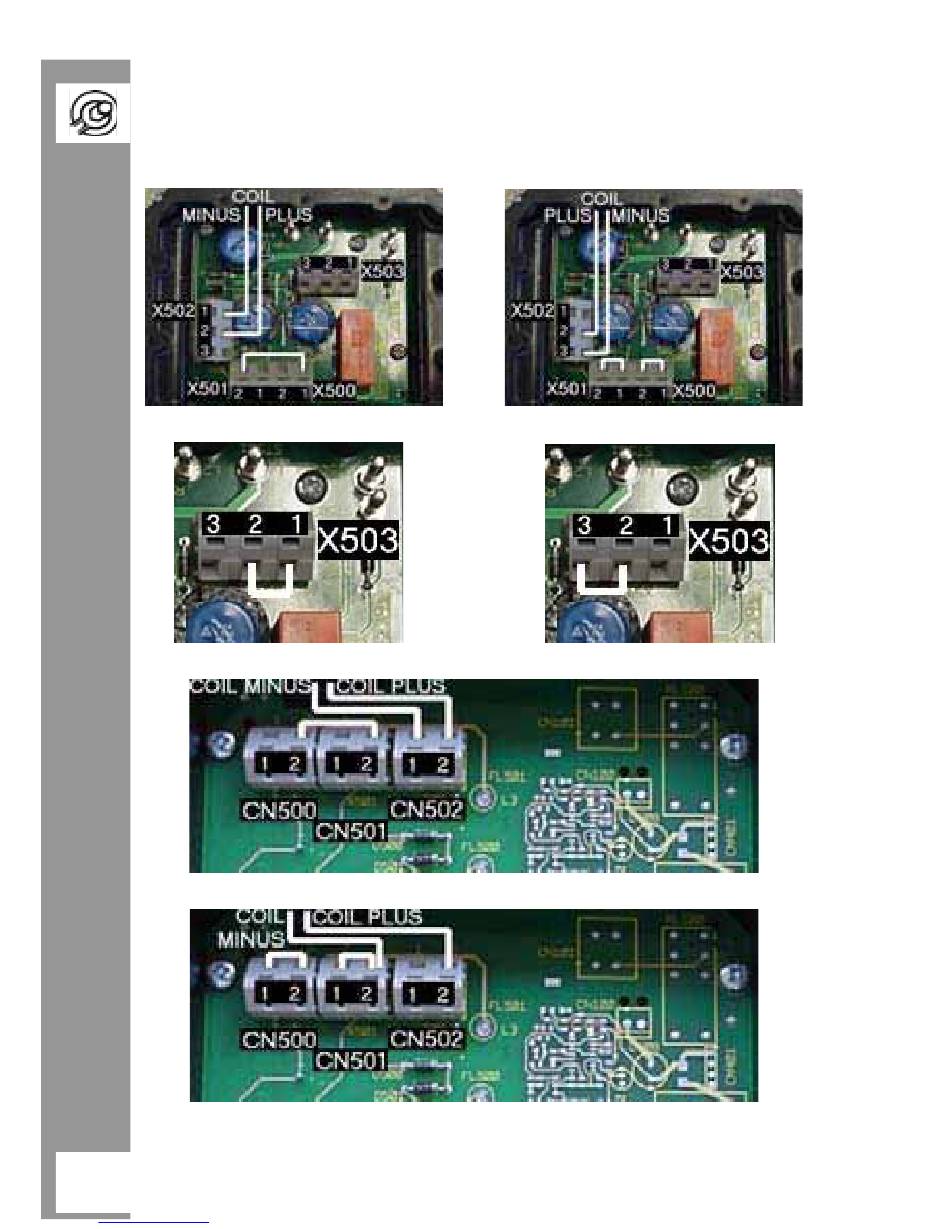

Fig. 1 E-M Brake Option Connection Diagram
4
© Siemens plc 2000 ¦ G85139-H1731-U450-B1
