3. Layout, Connections & Jumper Settings
3.3 Jumper Settings
The EX-1234HMVS will be delivered with the setting Bus-Power. But you have the
possibility to cut the power at the data line. For this you open the case with the four
screws on both sides. Then you must set the jumper JP1 from ENA (Enable) to DIS

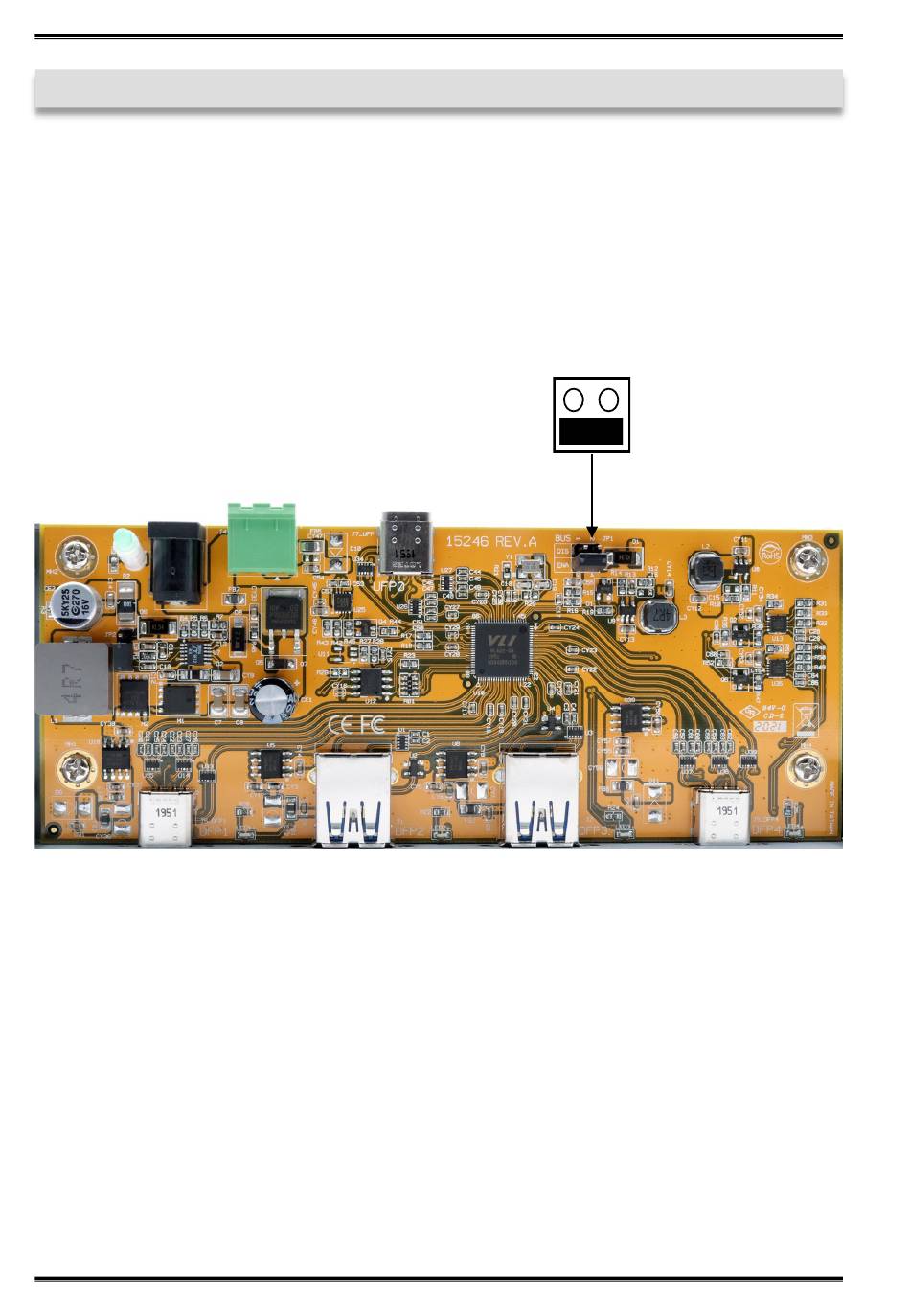

(Disable). See the following picture.
JP1
DIS
ENA
