3. Layout, Connections & Jumper Settings

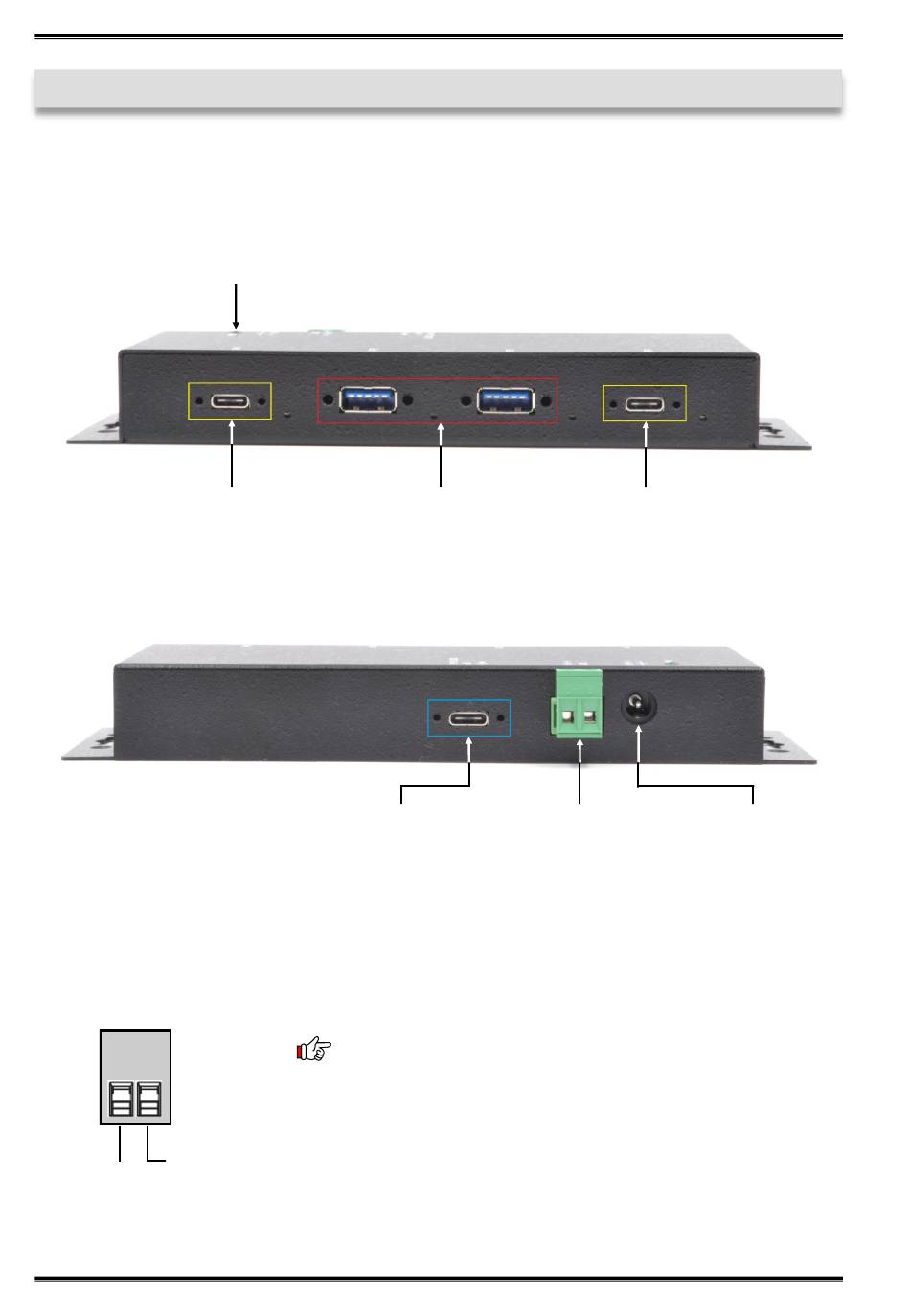

3.1 Layout
Front:
Power LED
1x USB 3.2 (Gen2)
Downstream C-Port
Rear:
3.2 Connections
+7V - 24V T-Block:
GND (Ground)
+7V - 24V
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
2x USB 3.2 (Gen2)
Downstream A-Port
1x USB 3.2 (Gen2)
Upstream C-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
10
1x USB 3.2 (Gen2)
Downstream C-Port
7-24V T-Block
for optional external
Power Supply
EX-1234HMVS
7-24V Connector
for included external
Power Supply
