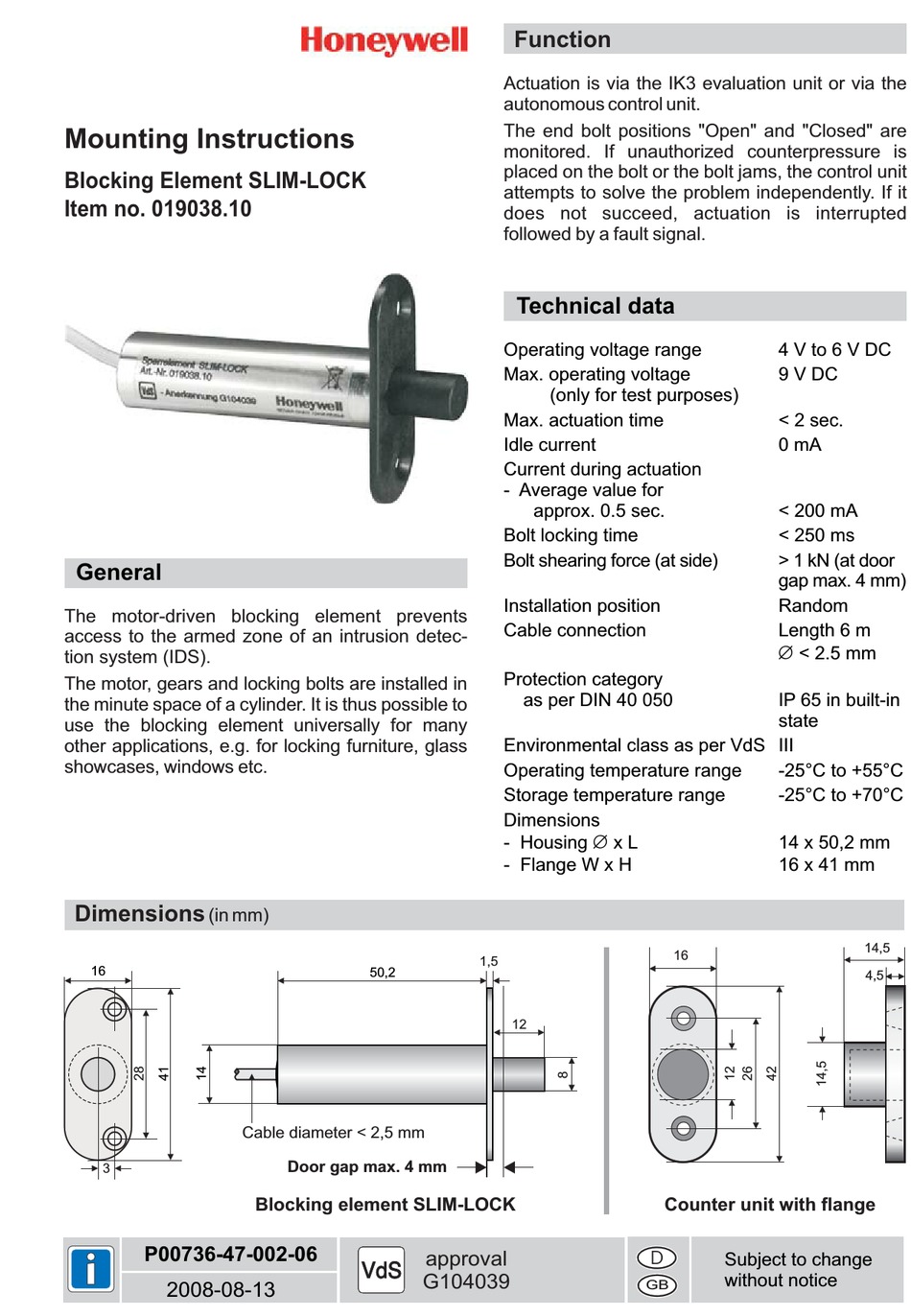

Mounting Instructions
Blocking Element SLIM-LOCK
Item no. 019038.10
General
The motor-driven blocking element prevents
access to the armed zone of an intrusion detec-
tion system (IDS).
The motor, gears and locking bolts are installed in
the minute space of a cylinder. It is thus possible to
use the blocking element universally for many
other applications, e.g. for locking furniture, glass
showcases, windows etc.
Dimensions
(in mm)
16
3
P00736-47-002-06
2008-08-13
50,2
Cable diameter < 2,5 mm
Door gap max. 4 mm
Blocking element SLIM-LOCK
Function
Actuation is via the IK3 evaluation unit or via the
autonomous control unit.
The end bolt positions "Open" and "Closed" are
monitored. If unauthorized counterpressure is
placed on the bolt or the bolt jams, the control unit
attempts to solve the problem independently. If it
does not succeed, actuation is interrupted
followed by a fault signal.
Technical data
Operating voltage range
Max. operating voltage
(only for test purposes)
Max. actuation time
Idle current
Current during actuation
- Average value for
approx. 0.5 sec.
Bolt locking time
Bolt shearing force (at side)
Installation position
Cable connection
Protection category
as per DIN 40 050
Environmental class as per VdS III
Operating temperature range
Storage temperature range
Dimensions
Æ
- Housing
- Flange W x H
1,5
12
approval
G104039
4 V to 6 V DC
9 V DC
< 2 sec.
0 mA
< 200 mA
< 250 ms
> 1 kN (at door
gap max. 4 mm)
Random
Length 6 m
Æ
IP 65 in built-in
state
-25°C to +55°C
-25°C to +70°C
x L
14 x 50,2 mm
16 x 41 mm
16
Counter unit with flange
D
Subject to change
without notice
GB
< 2.5 mm
14,5
4,5
