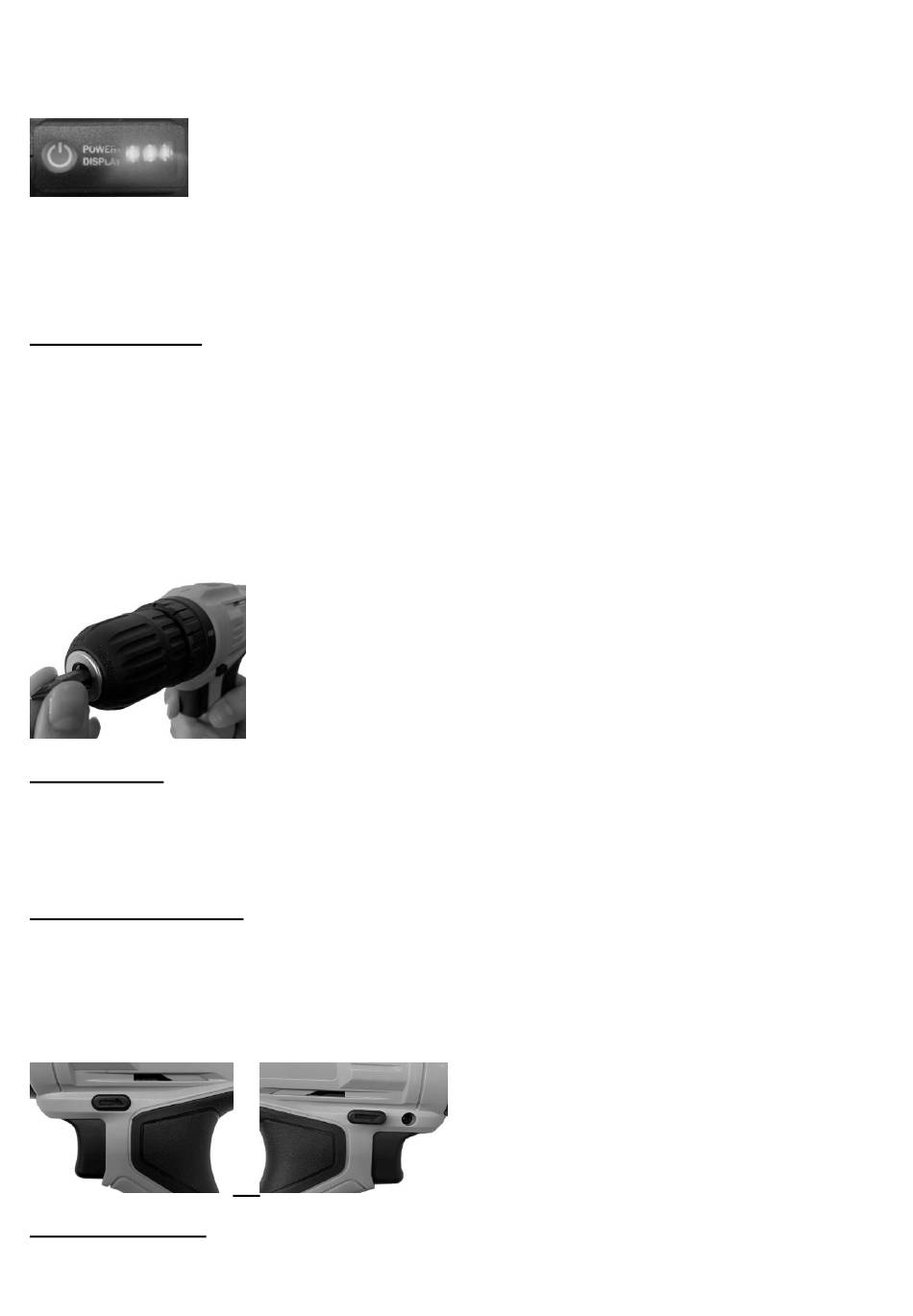

Check the charger capacity via the colored LEDs.
Red: battery too low
Red + yellow: battery half charged
Red + yellow + green: battery fully charged.
About the charger
Disconnect the feeding before connecting or disconnecting the battery
The charger must be used only with rechargeable battery. Never use un-rechargeable battery.
Do not expose the charger to rain or water
Inserting Tool Bits
Important! Always remove the battery before you change the drill or screw bit to avoid
unintentional starting of the machine.
The cordless drill has a keyless chuck so you do not need a key to lock the tool bit in place. Make
sure that the drill or screw bit is not skew when it is inserted and the chuck tightened.
Before inserting drill/screw bits open the jaws of the chuck by holding the lower ring of the chuck
and turn the locking ring anticlockwise.
Open the chuck until you can insert the tool. Hold the machine and then turn clockwise direction to
firmly tighten it.
To remove the tool, please hold the machine and turn the chuck anticlockwise.
Open the chuck until you can remove the tool
On/Off Trigger
Use the On/Off trigger to start the machine and keep holding it for continuous operation.
The rotation speed can be varied by depressing the On/Off trigger. The more the trigger is pressed,
the faster the rotation speed.
To switch the machine off, release the On/Off trigger
Reverse-rotation Lever
Important! The machine has to come to a complete stop before the reverse rotation lever can be
used; otherwise the machine may be damaged.
Use the reverse-rotation lever to switch between clockwise (normal) and anticlockwise rotation or
vice-versa. With the reverse-rotation lever in the central position the trigger switch is locked and
cannot be depressed. Put the reverse-rotation lever in the central position before you put the
machine down, to avoid unintentional starting.
Torque adjustment
The tool supply you 19+1 different torque steps, you can control the maximum torque applied to
the drill bit with the torque control knob.
