ENGLISH

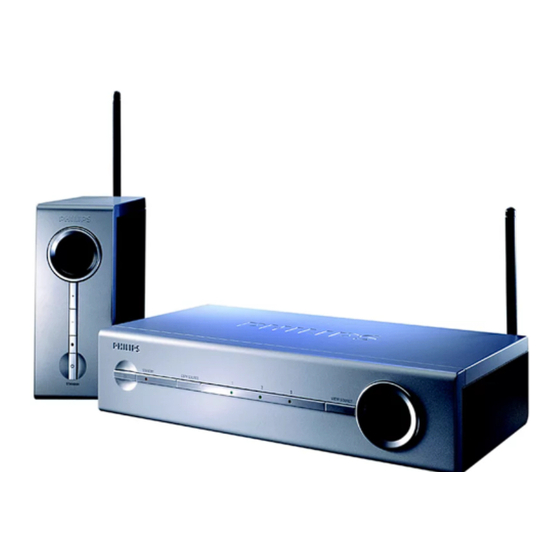

Wireless TV Link
SBC VL1400
The Philips Wireless TV Link allows you to distribute any kind of video signal (digital
or analogue set-top boxes, DVDs, satellite receivers, VCRs etc.) or cable
programmes throughout your house without the need for extra wiring, running
cables or drilling holes. This means that you can enjoy the freedom of watching Pay-
TV on your bedroom TV. You can also enjoy a film playing on your living-room
video recorder while others independently watch their favourite programmes on
the main TV.
Besides distributing video signals wirelessly , the Wireless TV Link also functions as a
switch box for your main TV. It is equipped with four SCART input connectors.
These allow you to connect up to four video devices at the same time, so cable
swapping or re-configuring your audio/video set-up is no longer necessary. In
addition, three of the SCART inputs can be linked to the fourth one, which makes
copying your video content very simple.
The universal remote control allows you to control the Wireless TV Link, your
second TV and up to four video sources, regardless of brand. You don't have to
carry around the other remote control units!
The Wireless TV Link is based on wireless RF technology that offers you in-home
convenience. To enable you to enjoy the best possible performance, four
transmission channels are provided so you can select the channel that provides
optimum viewing with the minimum of interference.
Pure wireless home con Pure wireless home con Pure wireless home con Pure wireless home con Pure wireless home conv v v v v enience!
Safety precautions
Please read this guide carefully and keep it for future reference.
• Do not use this product in moist places or close to water.
• Do not expose this product to extreme heat.
• Do not open this product; in case of technical difficulties bring it to your Philips
retailer.
• Do not cover this product.
• Only connect the AC power adapters to a power supply of 220-240 VAC / 50Hz.
• Only use the AC power adapters included or a type that complies with safety
standard EN60950 and that has the following specification: 12 Volt DC / 500mA.
• Inadequately protected or sensitive electronic equipment may be affected by the
use of this product. This interference can lead to damage to either equipment.
Please check whether or not surrounding equipment can be affected by this
product before you start using it.
enience! enience! enience! enience!
Keys and functions
Product illustration A Transmitter Unit
1
on inside flap: Power button
switches the transmitter between stand-by and on.
2 Power light
red in stand-by mode, green when power is on, flashes when receiving remote
control commands
3
COPY SOURCE button
links SCART input 1,2,3 or SCART OUT to SCART in/output 4.
4
Copy source indication lights
indicate which SCART input (1,2 or 3) is linked to SCART in/output 4. When
there is no light indication the SCART OUT is linked to SCART in/output 4.
5
VIEW SOURCE button
selects which SCART input (1-4) is viewed on the transmitter SCART output
6
View source indication display
indicates the SCART input number that is viewed on the transmitter output.
7 AUTO light
indicates if automatic SCART switching is enabled (on) or disabled (off).
8 Infra-red remote control blaster lights
transmit infra-red remote control signals from the receiver to the video
source devices below.
9
Transmission channel switch
switches the frequency channel of the audio/video signal to minimize
interference.
10 SCART input (1-4) connectors
connect SCART-enabled video source devices to these connectors
11 SCART output connector
connect to the main TV
12 RCA sound output connector
connect to an audio amplifier
13 DC power input
14 Remote control blaster cord connector
15 Remote control blaster cord
four infra-red lights used instead of the infra-red remote control blaster lights
(A-8) for a more precise control of the video sources.
16 SCART cable
17 Power adapter
18 Remote control antenna
ENGLISH 3
