CITYLINE Pushbutton panel AMPLIFIER
5 channel cable
The call extension
module can be
used
PUT

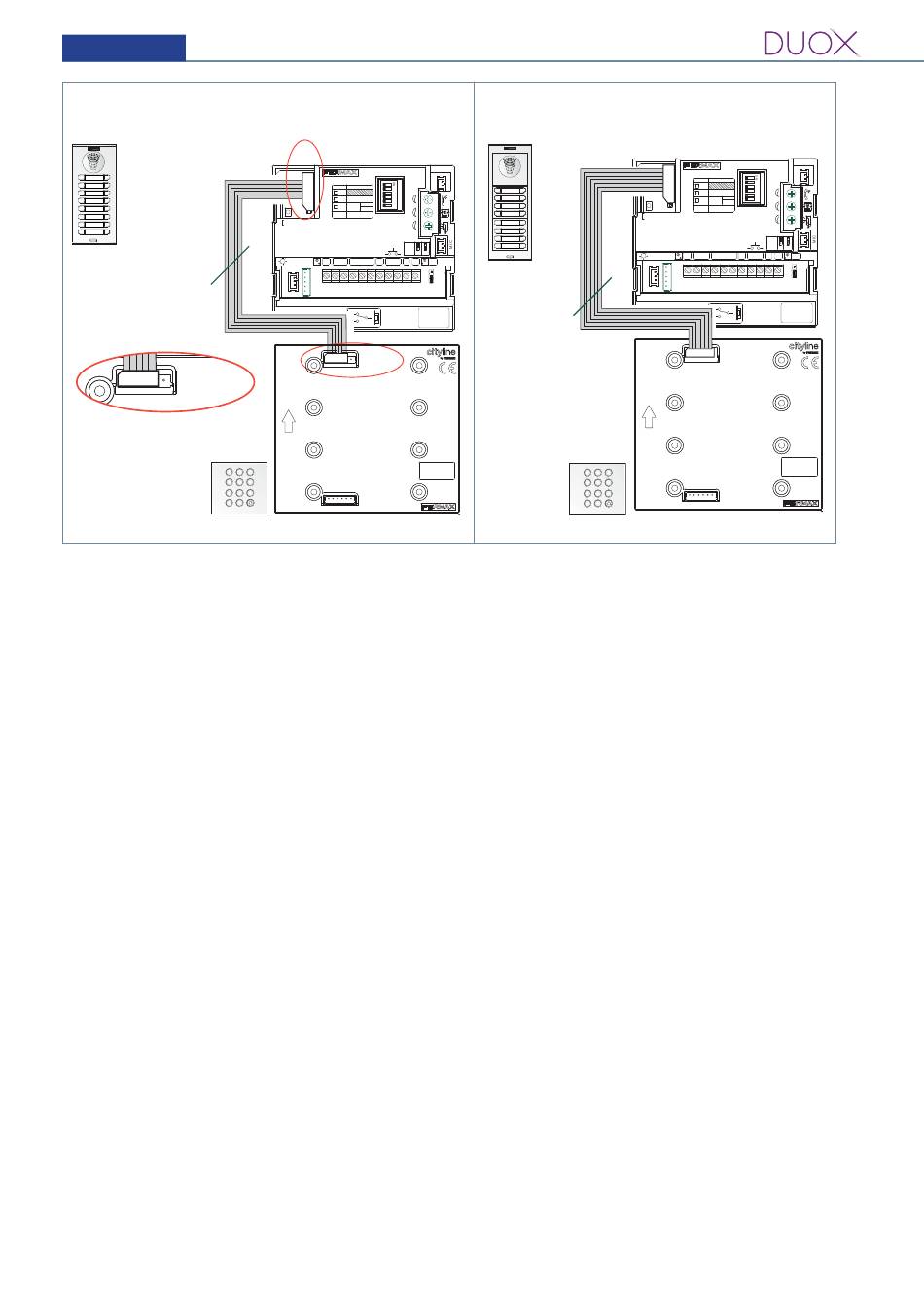

CN1
NTRITT
CN1
Detail
Connect the 5
channel cable to the
keyboard (CN1):
1
leave the pin on the
4
right free.
7
A
ref. 7439

Programming Telephones.

1. With the telephone connected, press the programming button (you will hear a beep).
Upon releasing it, you will hear the programmed entrance.
(upon picking up the phone, it automatically activates the panel´s audio and a
conversation may be held with the person on the outdoor panel to indicate the house to
be programmed).
2. Enter the house number via the keypad and press %. A programming confi rmation is
produced.
* The telephone will not function if it has not been programmed.
For more details see the DUOX cod.97695 telephone instructions and the chapters in this
Section II: "DUOX Amplifi er Calling Codes" and "Calling homes from the Direct Panel".
NOTES:
- The DUOX system uses 6 digit house terminal addresses.
- Programming is always done from the panel activated as MASTER.
- Any installation can only have one MASTER panel at a time, whether a single or multiple block
installation, or if confi gured as a sub-block, block or general entrance.
- Upon programming each phone, it inherits the upper part of the address the outdoor panel has
assigned, if it isn´t a general entrance panel.
- A outdoor panel is confi gured as a MASTER via the SW1 amplifi er button. If the SW1 button is pressed
3 times quickly, it is activated as a MASTER panel and a confi rmation tone sounds (beep-beep). It
can also be confi gured with a keypad code, without having to open the panel, see»Confi guring the
Direct Panel» for more details.
The sequence is: Activate the panel as MASTER: 10 (beep) 1 (beep-beep).
- When a panel is selected as MASTER, it notifi es the others of the situation and if another was
previously confi gured, it would automatically stop being so.
Pag 52
CN1
