11. Operation

11.1 LED indication
11.1.1 After disarming
Note: A detected alarm remains stored in the detector until it is cleared.
BUS-2, Viewguard mode
(Control panel software from V07.05 upward)
The red LED flashes:
this detector was the first to trigger an alarm
First alarm,
The red LED lights up:
Subsequent alarm
all subsequent detectors
BUS-2, SCM 3000 mode or BUS-1
The red LED lights up:
detected.
Alarm
11.1.2 Operating state "Walk test"
The red LED lights up:
detected
Movement
The yellow LED flashes:
This signifies that a has occurred. A fault is triggered by one of the monito-
fault
ring functions (see Chapter 7).
The yellow LED lights up:
detected (only AM detectors)
Covering
11.1.3 Operating state "armed" and "disarmed"
The LED indication is blanked
11.1.4 Special case
(Start-up)
The red and yellow LEDs flash
After applying the operating voltage.
-
- As soon as the BUS communication is correct, the red LED is switched off.
- As soon as the initialisation is finished, the yellow LED is switched off (after
aprox. 30 sec.).
If data traffic at the BUS is incorrect.
-
11.2 Saved covered state
If the covered state is saved, the system cannot be armed.
Clear saved covered state:
1. Remove the cause
Activate the walk test. Activate the walk test to verify that the detection is working
2.
properly throughout the entire area to be monitored. The saved coverage will be
deleted during this process.
3. The detector is ready to operate again
12. Technical data
Operating voltage U_b
Operating voltge range
Current consumption at U_b=12 V DC:
- PIR
- LED
Range (programmable)
- Area optics
- Long-range optics (Item no. 033435)
- Curtain optics (Item no. 033434)
PIR sensor
PIR sensitivity (programmable)
Anti-Mask function (only AM detectors)
Installation position
Protection class as per EN 60529
Environmental class as per VdS
Operating temperature range
Storage temperature range
Dimensions W x H x D
Colour
The EU conformity declaration can be downloaded at "www.honeywell.com/security/de"
under Service-/ Download
Honeywell Security Group
Novar GmbH
Johannes-Mauthe-Straße 14
D-72458 Albstadt
www.honeywell.com/security/de
12 V DC
8.0 V to 15 V DC
0.6 mA (BUS-2), 3.0 mA (BUS-1)
4 mA
8 / 11 / 13 / 15 m
29 / 35 / 42 / 50 m
17 / 21 / 25 / 30 m
temperature compensated
normal / high
up to 30 cm
vertical, optics at bottom
IP 30
II
-10 °C to +55 °C
-25 °C to +70 °C
64 x 130 x 48 mm
traffic white
(similar to RAL 9016)
P01543-02-002-03
2015-04-08
© 2015 Novar GmbH
Installation Instructions Viewguard PIR / AM BUS-2/BUS-1

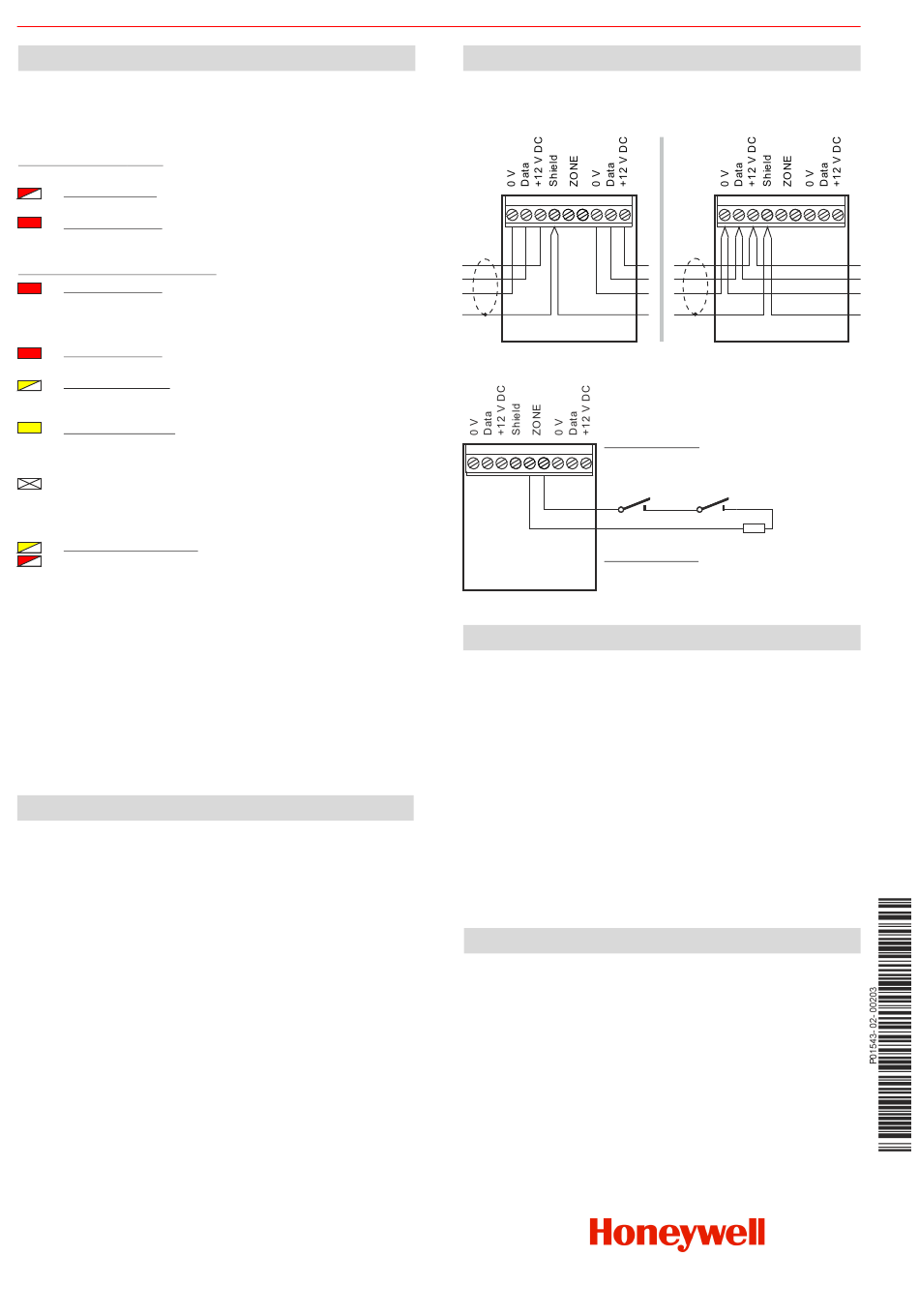

13. Connection diagram

With Version 1 in the case of a removed detector the voltage supply
is interrupted for the rest of the BUS users. If this is not requested
then Version 2 is applicable.
Version 1
BUS-2
BUS-1
Detector (max. 63)
Detector group connection (ZONE)
This connection enables the integration of contacts in the
BUS-2 system. (Not possible in SCM 3000 mode, see 3.2)
Operation on BUS-2:
should be programmed to detector zone "zero"!
Contact(s): potential-free detectors without memory function
BUS-2 BUS-2
BUS-1 BUS-1
Operation on BUS-1: The detector group is connected in
an "OR" function with the alarm message. If the detector
Detector (max. 63)
zone is not used, it must be terminated with 12k1.
14. Accessories
033390.17 Adjustable joint
Swivel range: Horizontal
as per EN grade 2
033588.17 Ball-and-socket set for wall and corner mounting
Swivel range: Horizontal ±45°, Vertical ±20°
not as per VdS and EN
033391.17 Seal (PU = 20 piece)
033435 Viewguard Replacement Mirror, Long-range mirror
Detection range see Chapt. 5.2
(PU = 3 piece)
VdS approval in conjunction with detector, see below
033434 Viewguard Replacement Mirror, Curtain mirror
Detection range see Chapt. 5.2
(PU = 3 piece)
VdS approval in conjunction with detector, see below
15. Approvals
033432.21 Viewguard PIR AM BUS-2/BUS-1
VdS G108036, IDS Class C, with area mirror
VdS G108037, IDS Class C, retrofitted with curtain mirror
VdS G108038, IDS Class C, retrofitted with long-range mirror
As per EN 50131-1 and EN 50131-2-2: 2008-09, grade 3
As per SES-EMA-RL-T2:2010-08
033332.21 Viewguard PIR BUS-2/BUS-1
VdS G108509, IDS Class B, with area mirror
VdS G108510, IDS Class B, retrofitted with curtain mirror
VdS G108511, IDS Class B, retrofitted with long-range mirror
As per EN 50131-1 and EN 50131-2-2: 2008-09, grade 2
As per SES-EMA-RL-T2:2010-08
Version 2
BUS-2
BUS-1
Detector (max. 63)
If the detector zone is not used, it
12k1
±20°, Vertical +4° up to -8°
