10
6.3

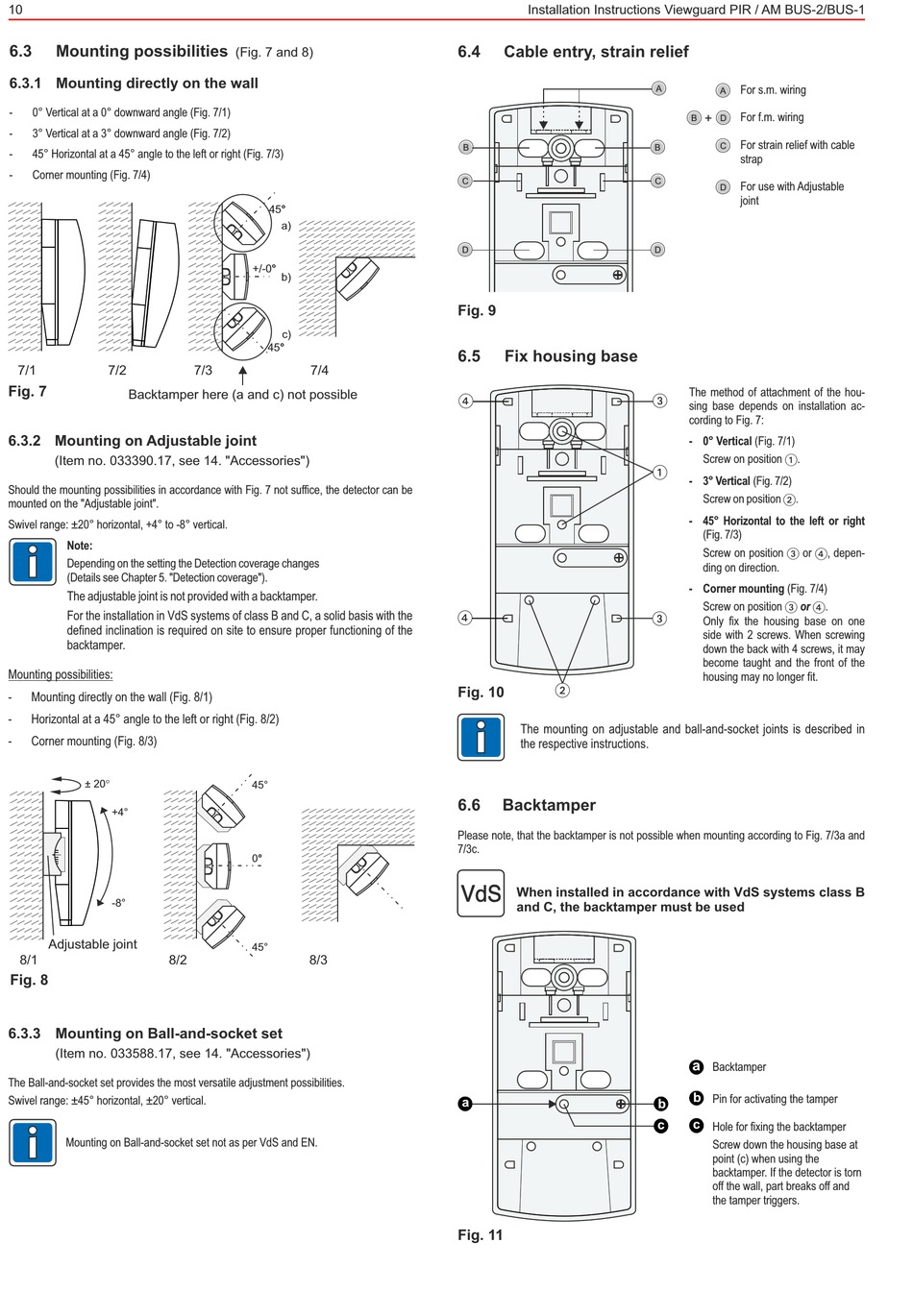

Mounting possibilities

6.3.1 Mounting directly on the wall
- 0° Vertical at a 0° downward angle (Fig. 7/1)
- 3° Vertical at a 3° downward angle (Fig. 7/2)
- 45° Horizontal at a 45° angle to the left or right (Fig. 7/3)
- Corner mounting (Fig. 7/4)
7/1 7/2
Fig. 7
Backtamper here (a and c) not possible
6.3.2 Mounting on Adjustable joint
(Item no. 033390.17, see 14. "Accessories")
Should the mounting possibilities in accordance with Fig. 7 not suffice, the detector can be
mounted on the "Adjustable joint".
Swivel range: ±20° horizontal, +4° to -8° vertical.
Note:
Depending on the setting the Detection coverage changes
(Details see Chapter 5. "Detection coverage").
The adjustable joint is not provided with a backtamper.
For the installation in VdS systems of class B and C, a solid basis with the
defined inclination is required on site to ensure proper functioning of the
backtamper.
Mounting possibilities:
- Mounting directly on the wall (Fig. 8/1)
- Horizontal at a 45° angle to the left or right (Fig. 8/2)
- Corner mounting (Fig. 8/3)
± 20°
+4°
-8°
Adjustable joint
8/1 8/2
Fig. 8
6.3.3 Mounting on Ball-and-socket set
(Item no. 033588.17, see 14. "Accessories")
The Ball-and-socket set provides the most versatile adjustment possibilities.
Swivel range: ±45° horizontal, ±20° vertical.
Mounting on Ball-and-socket set not as per VdS and EN.
(Fig. 7 and 8)
45°
a)
+/-0°
b)
c)
45°
7/3 7/4
45°
0°
45°
8/3
Installation Instructions Viewguard PIR / AM BUS-2/BUS-1
6.4 Cable entry, strain relief
B
C
D
Fig. 9
6.5 Fix housing base
Fig. 10
The mounting on adjustable and ball-and-socket joints is described in
the respective instructions.
6.6 Backtamper
Please note, that the backtamper is not possible when mounting according to Fig. 7/3a and
7/3c.
When installed in accordance with VdS systems class B
and C, the backtamper must be used
a
Fig. 11
For s.m. wiring
A
A
For f.m. wiring
+
B D
For strain relief with cable
C
B
strap
C
For use with Adjustable
D
joint
D
The method of attachment of the hou-
sing base depends on installation ac-
cording to Fig. 7:
(Fig. 7/1)
- 0° Vertical
Screw on position .
(Fig. 7/2)
- 3° Vertical
Screw on position .
- 45° Horizontal to the left or right
(Fig. 7/3)
Screw on position or , depen-
ding on direction.
(Fig. 7/4)
- Corner mounting
Screw on position .
or
Only fix the housing base on one
side with 2 screws. When screwing
down the back with 4 screws, it may
become taught and the front of the
housing may no longer fit.
a
Backtamper
b
Pin for activating the tamper
b
c
c
Hole for fixing the backtamper
Screw down the housing base at
point (c) when using the
backtamper. If the detector is torn
off the wall, part breaks off and
the tamper triggers.
