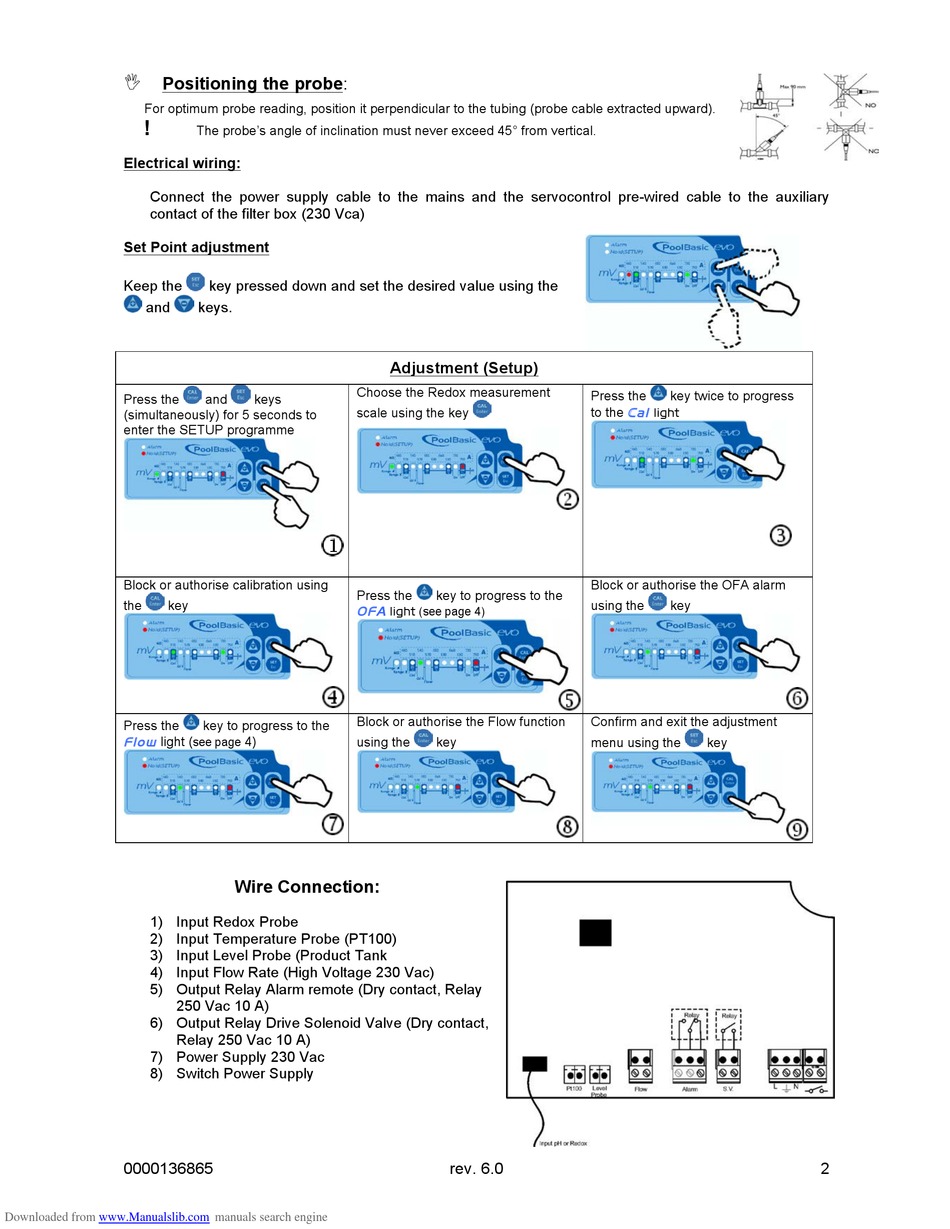

Positioning the probe:
For optimum probe reading, position it perpendicular to the tubing (probe cable extracted upward).
!
Electrical wiring:
Connect the power supply cable to the mains and the servocontrol pre-wired cable to the auxiliary
contact of the filter box (230 Vca)
Set Point adjustment
Keep the
and
Press the
(simultaneously) for 5 seconds to
enter the SETUP programme
Block or authorise calibration using
the
key
Press the
Flow
light (
1) Input Redox Probe
2) Input Temperature Probe (PT100)
3) Input Level Probe (Product Tank
4) Input Flow Rate (High Voltage 230 Vac)
5) Output Relay Alarm remote (Dry contact, Relay
250 Vac 10 A)
6) Output Relay Drive Solenoid Valve (Dry contact,
Relay 250 Vac 10 A)
7) Power Supply 230 Vac
8) Switch Power Supply
