Before carrying out ANY work inside control panel of the Pool Basic Evo device, make sure you disconnect it
FAILURE TO COMPLY WITH THE INSTRUCTIONS CONTAINED IN THIS MANUAL COULD CAUSE INJURY TO
PEOPLE AND/OR DAMAGE TO THE APPLIANCE AND THE SYSTEM.
The Redox probe is a product subject to wear and tear and is therefore not covered by the warranty.
I
Chemical products:
Liquid chlorine or 12º beach can be used neat. If the product has a concentration of 48º, it is necessary to dilute
it in water in a 1:3 ratio.
ABSOLUTELY not recommended => All types of organic chlorine
Note: These products are DANGEROUS (IÓA) and require special precautions during use, handling and storage.
I
Pool Basic Evo was designed to regulate the Redox of tanks up to 90 m
B
NEVER mix chemical products.
B
NEVER allow children or people who have not read this manual to use or tamper with Pool Basic Evo or any of
its peripheral components (including chemical products).
Dimensions (H – W – L)
Weight
Power supply 50 Hz
Consumption
Pump flow rate
Electrode regulation
Make sure that the injection pressure is below 1.5 bar.
0000136865
Downloaded from www.Manualslib.com
POOL BASIC Evo Redox

TECHNICAL SPECIFICATIONS

234x162x108 mm
1 kg
230 VAC
7 W o 12,5 W
1,5 l/h; 5 l/h
Automatic
manuals search engine
WARNINGS
!
IMPORTANT!
from the power supply.

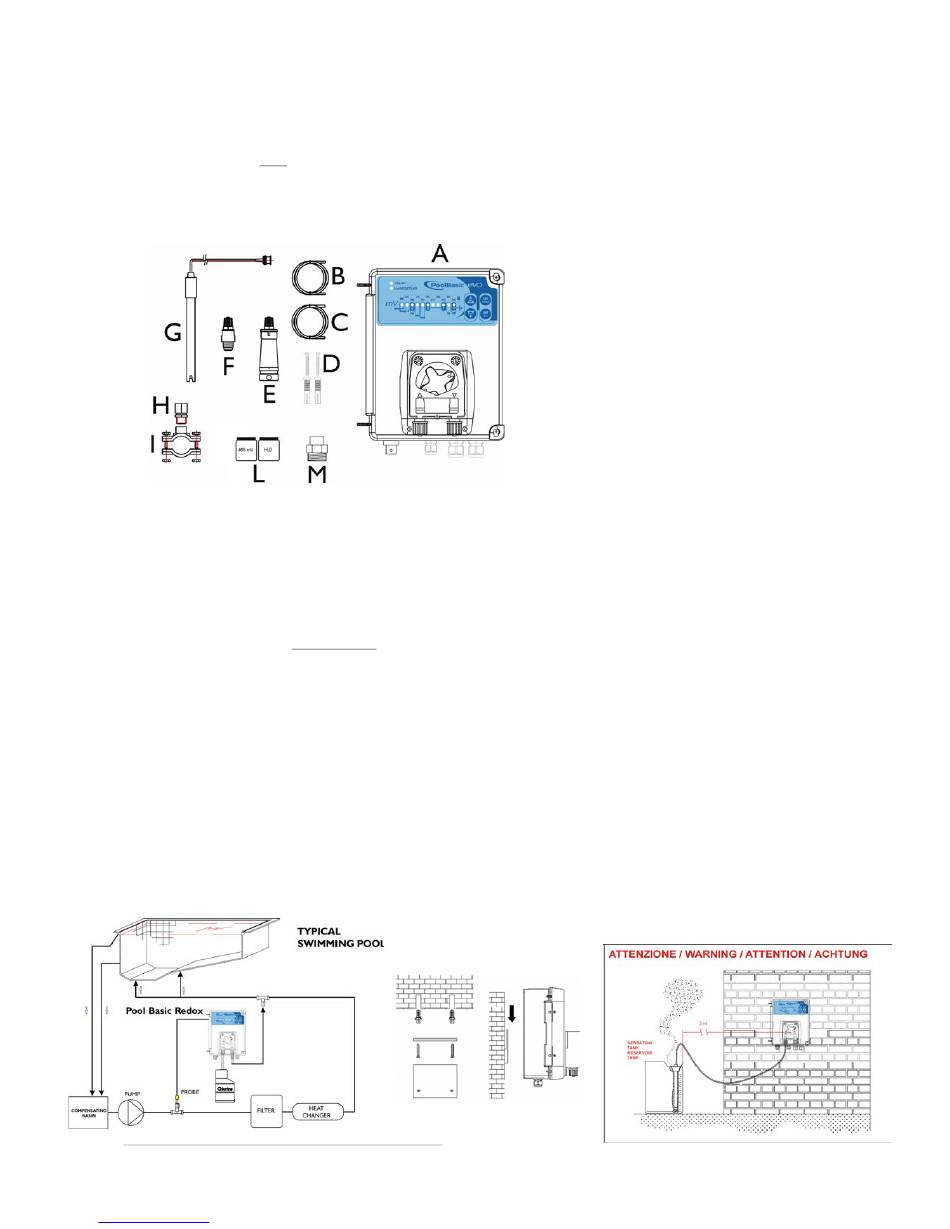

PACK CONTENTS

A) "Pool
(standard model)
B) PVC Cristal 4x6 suction hose (4 m)
C) Polyethylene delivery hose (5 m)
D) Attachment screw (φ=6 mm)
E) Foot filter (PVC riser)
F) FPM duckbill valve (3/8" GAS)
G) SRH-1 Redox electrode
H) PSS3 probe-socket (1/2" GAS)
I) Tapping saddle for securing PSS3 onto 2"
hose (φ=50 mm)
L) 465 mV buffer solution kit
M) Reducer for injection valve
Maximum back-pressure 1,5 bar
Pump state
Redox scale
Redox control range
Device precision
Calibration electrode
rev. 6.0
Basic" REDOX control
3
.
Pause - Supply
480÷750 mV o 660÷930 mV
0÷1500 mV
+/- 3 mV
Automatic
Wall Mounting Setup
device
