MK/SI PinCode-Tastatur (on-
line)

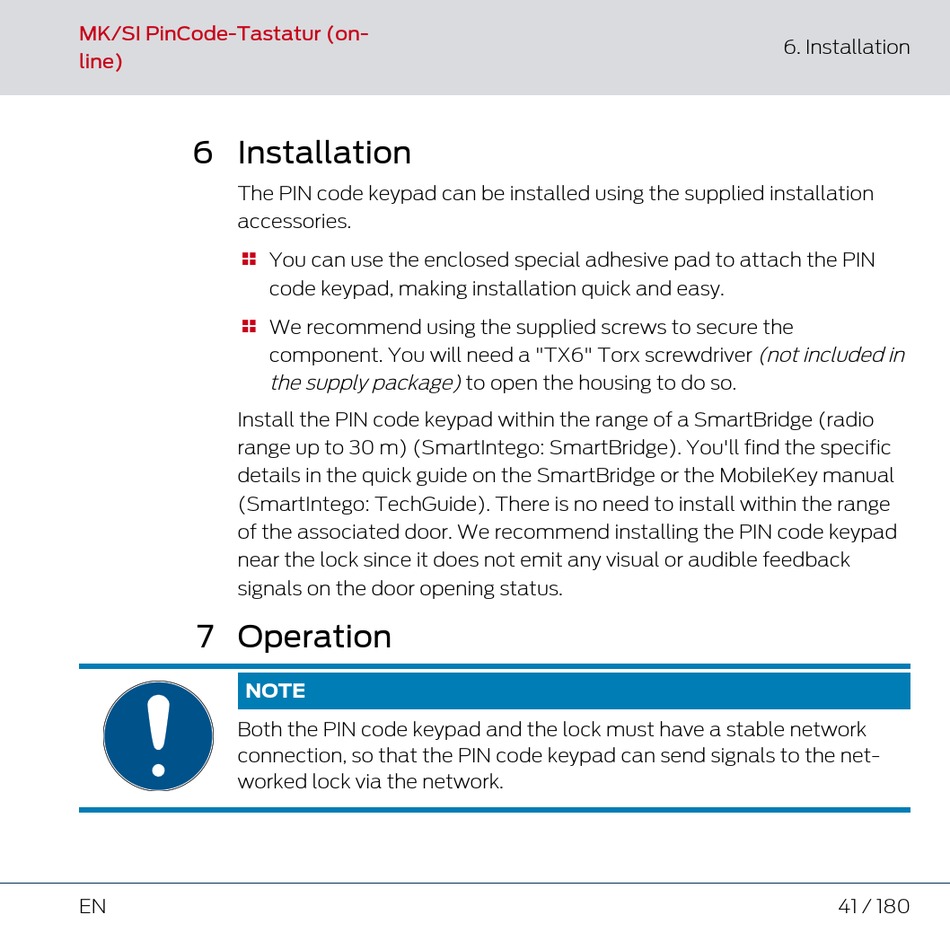

6 Installation

The PIN code keypad can be installed using the supplied installation
accessories.


Install the PIN code keypad within the range of a SmartBridge (radio
range up to 30 m) (SmartIntego: SmartBridge). You'll find the specific
details in the quick guide on the SmartBridge or the MobileKey manual
(SmartIntego: TechGuide). There is no need to install within the range
of the associated door. We recommend installing the PIN code keypad
near the lock since it does not emit any visual or audible feedback
signals on the door opening status.

7 Operation

NOTE
Both the PIN code keypad and the lock must have a stable network
connection, so that the PIN code keypad can send signals to the net-
worked lock via the network.
EN
You can use the enclosed special adhesive pad to attach the PIN
code keypad, making installation quick and easy.
We recommend using the supplied screws to secure the
component. You will need a "TX6" Torx screwdriver (not included in
the supply package) to open the housing to do so.
