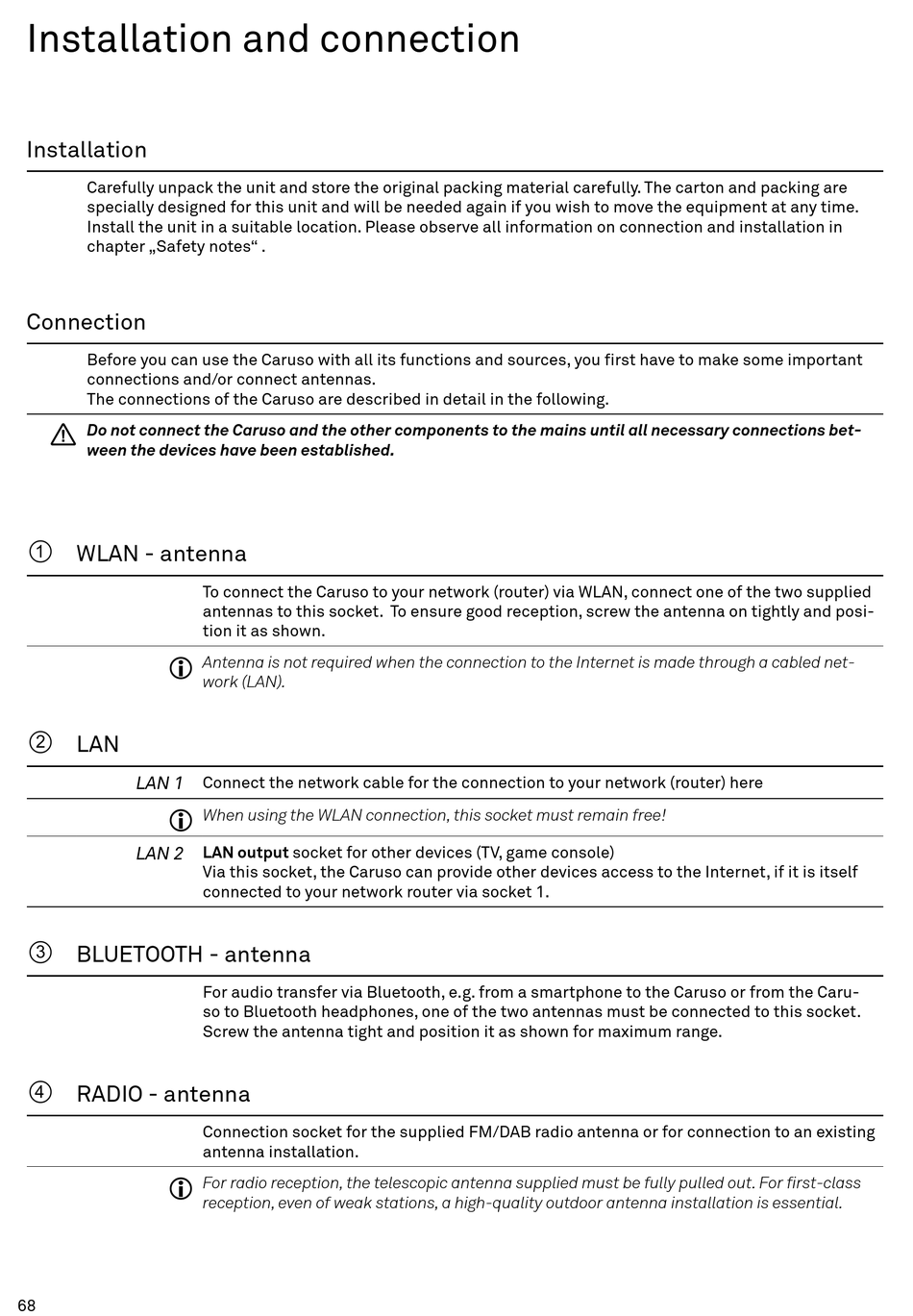

Installation and connection

Installation

Carefully unpack the unit and store the original packing material carefully. The carton and packing are
specially designed for this unit and will be needed again if you wish to move the equipment at any time.
Install the unit in a suitable location. Please observe all information on connection and installation in
chapter „Safety notes" .

Connection

Before you can use the Caruso with all its functions and sources, you first have to make some important
connections and/or connect antennas.
The connections of the Caruso are described in detail in the following.
Do not connect the Caruso and the other components to the mains until all necessary connections bet-

ween the devices have been established.
1

WLAN - antenna

j

2 LAN

LAN 1
j
LAN 2

3 BLUETOOTH - antenna

4 RADIO - antenna

j
68
To connect the Caruso to your network (router) via WLAN, connect one of the two supplied
antennas to this socket. To ensure good reception, screw the antenna on tightly and posi-
tion it as shown.
Antenna is not required when the connection to the Internet is made through a cabled net-
work (LAN).
Connect the network cable for the connection to your network (router) here
When using the WLAN connection, this socket must remain free!
LAN output socket for other devices (TV, game console)
Via this socket, the Caruso can provide other devices access to the Internet, if it is itself
connected to your network router via socket 1.
For audio transfer via Bluetooth, e.g. from a smartphone to the Caruso or from the Caru-
so to Bluetooth headphones, one of the two antennas must be connected to this socket.
Screw the antenna tight and position it as shown for maximum range.
Connection socket for the supplied FM/DAB radio antenna or for connection to an existing
antenna installation.
For radio reception, the telescopic antenna supplied must be fully pulled out. For first-class
reception, even of weak stations, a high-quality outdoor antenna installation is essential.
