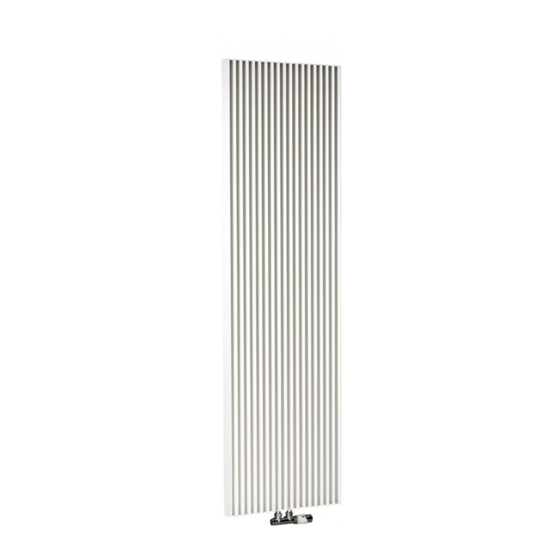

Iguana_Aplano Plus
Montagehandleiding - Instructions de montage
Montagehinweis - Mounting instructions
11.9
7
10
0.6
8.8
min. 10
L
30
41
52
C
16
27
38
1
4
Downloaded from
www.Manualslib.com
C
4.25
5.25
8.8
2x
4.5
0.25
5
2.5
L
4x
H
5
G1/2"
63
74
85
49
60
71
Plaatsing CV-leidingen aansluiting 1-8
Positionnement des tuyaux de CC rac. 1-8
Positionierung ZH-Leitungen Anschluss 1-8
Placement of CH tubes connection 1-8
2a
C
manuals search engine
Onderdelen - Parts - Teile
Magneten voor bevestiging zijn voorgemonteerd
Aimant de montage sont prémontés
Die Magneten zur Befestigung sind vormontiert
Magnets for assembly are pre-mounted
Om veiligheidsredenen zijn geen muurpluggen meegeleverd.
Contacteer uw speciaalzaak voor het juiste type.
Pour des raisons de sécurité, les chevilles ne sont pas
fournies. Contactez votre magasin spécialisé pour le bon type
de cheville.
Aus Sicherheitsgründen sind kein Dübel mitgeliefert.
Kontaktieren Sie Ihren Baustoff handel für die richtigen Dübel.
For safety reasons wall plugs aren't delivered. Contact your
specialist store for the right type.
Plaatsing CV-leidingen aansluiting 4-5
Positionnement des tuyaux de CC rac. 4-5
Positionierung ZH-Leitungen Anschluss 4-5
placement of CH-tubes connection 4-5
2b
OK !
Optie - option
Code 5090.
1151
Code
5090
.1150
Code
Code 5094.427
Code 5094.425
Code 5090.1111
Standaard
Standard
Klemkoppelingen voor ventielen: zie Jaga prijslijst.
Raccords bicônes pour vannes: voir liste des prix Jaga.
Klemmringverschraubungen für Ventile: siehe Jaga Preisliste.
Sleeve couplings for valves: see Jaga price list.
3
Ø 10 mm
5
5090.1119
13
www.jaga.be
