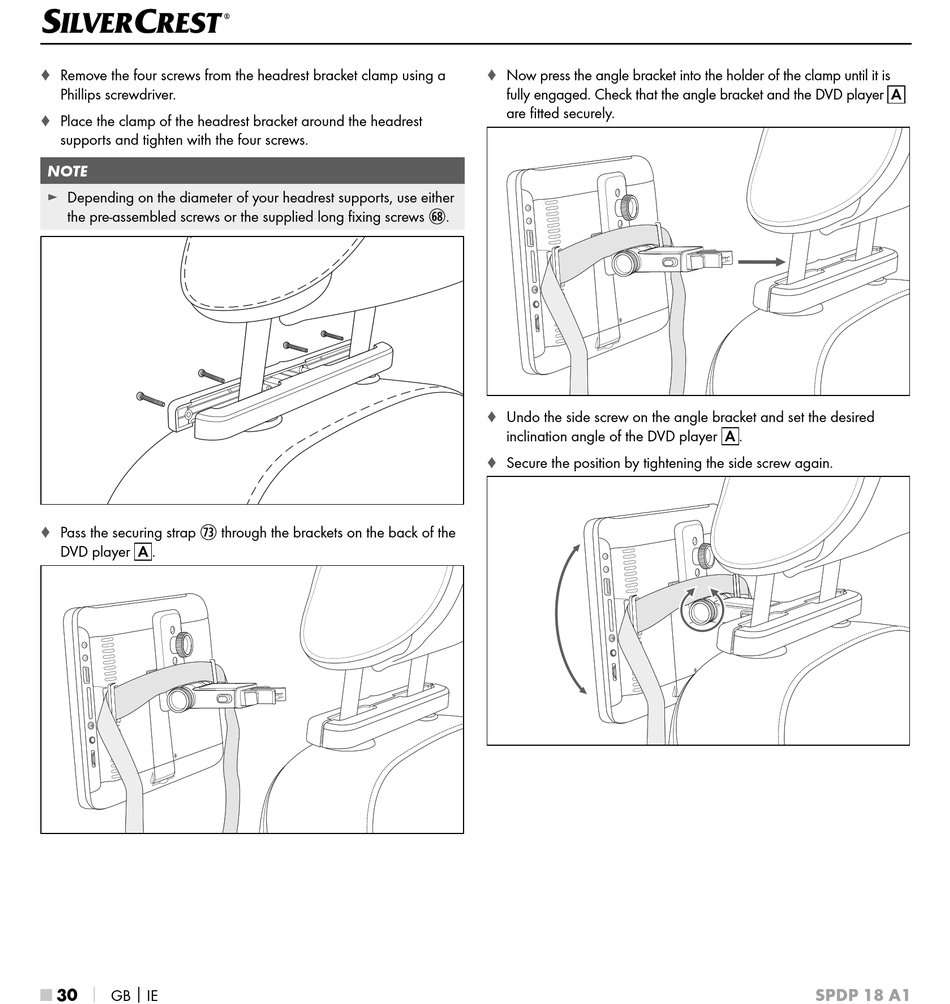

Silvercrest SPDP 18 A1 Bedienungsanleitung Seite 40

♦ Remove the four screws from the headrest bracket clamp using a
Phillips screwdriver .
♦ Place the clamp of the headrest bracket around the headrest
supports and tighten with the four screws .
NOTE
► Depending on the diameter of your headrest supports, use either
the pre-assembled screws or the supplied long fixing screws
♦ Pass the securing strap
7#
DVD player A .
■ 30 │ GB │ IE
through the brackets on the back of the
♦ Now press the angle bracket into the holder of the clamp until it is
fully engaged . Check that the angle bracket and the DVD player A
are fitted securely .
.
6*
♦ Undo the side screw on the angle bracket and set the desired
inclination angle of the DVD player A .
♦ Secure the position by tightening the side screw again .
SPDP 18 A1
