MSI Reminds You...
Always consult the vendors for proper CPU cooling fan.

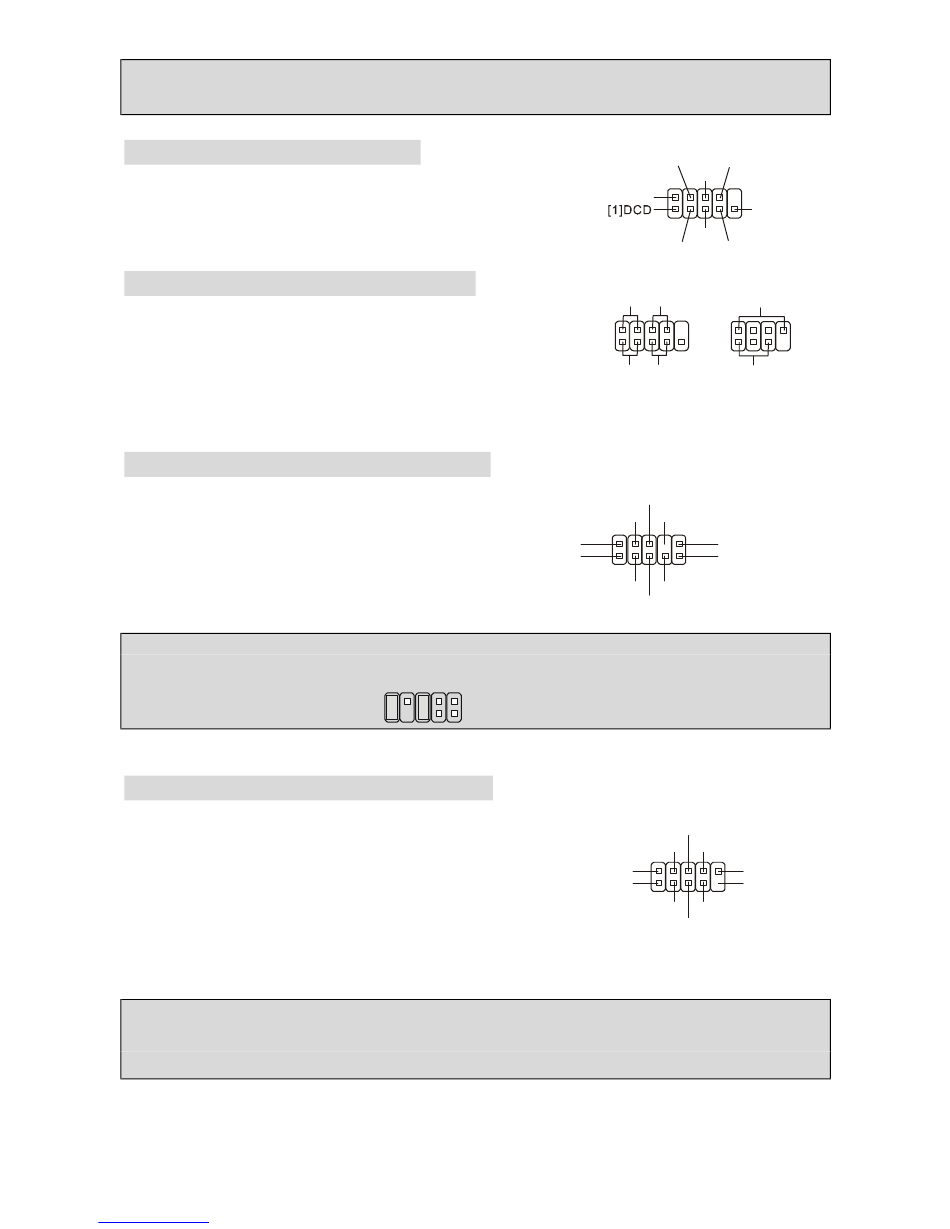

Serial Port Connector: JCOM1
The mainboard provides one serial port header for you to
connect secondary serial devices.
Front Panel Connectors: JFP1/JFP2
The mainboard provides two front panel connectors for
electrical connection to the front panel switches and LEDs.
JFP1 is compliant with Intel Front Panel I/O Connectivity
Design Guide.
Front Panel Audio Connector: JAUD1
The front panel audio connector allows you to
connect to the front panel audio and is compliant
with Intel
Guide.
MSI Reminds You...
If you do not want to connect to the front audio header, pins 5 & 6, 9 & 10 have to be jumpered in
order to have signal output directed to the rear audio ports. Otherwise, the Line-Out connector on
the back panel will not function.
Front USB Connector: JUSB1/ JUSB2
The mainboard provides two standard USB 2.0 pin headers
JUSB1 & JUSB2. USB2.0 technology increases data
transfer rate up to a maximum throughput of 480Mbps,
which is 40 times faster than USB 1.1, and is ideal for
connecting high-speed USB interface peripherals such as
USB HDD, digital cameras, MP3 players, printers, modems
and the like.
MSI Reminds You...
Please note that the pins of VCC & GND must be connected correctly, or it may cause some
damage.
Downloaded from www.Manualslib.com
®
Front Panel I/O Connectivity Design
10
manuals search engine
(2)AUD_GND
(1)AUD_MIC
AUD_MIC_BIAS
9 1
2
8
CTS
DTR
DSR
[2]SIN
RI[9]
GND
RTS
SOUT
Power Power
Speaker
LED Switch
2 10 2
1 9
1
HDD Reset Power
LED Switch LED
JFP 2
JFP1
AUD_RET_R
Key
AUD_VCC
AUD_RET_L(10)
AUD_FPOUT_L(9)
HP_ON
AUD_FPOUT_R
USB1+
USB1- GND
(2)VCC USB0C(10)
(1)VCC Key(9)
USB0- GND
USB0+
8
7
