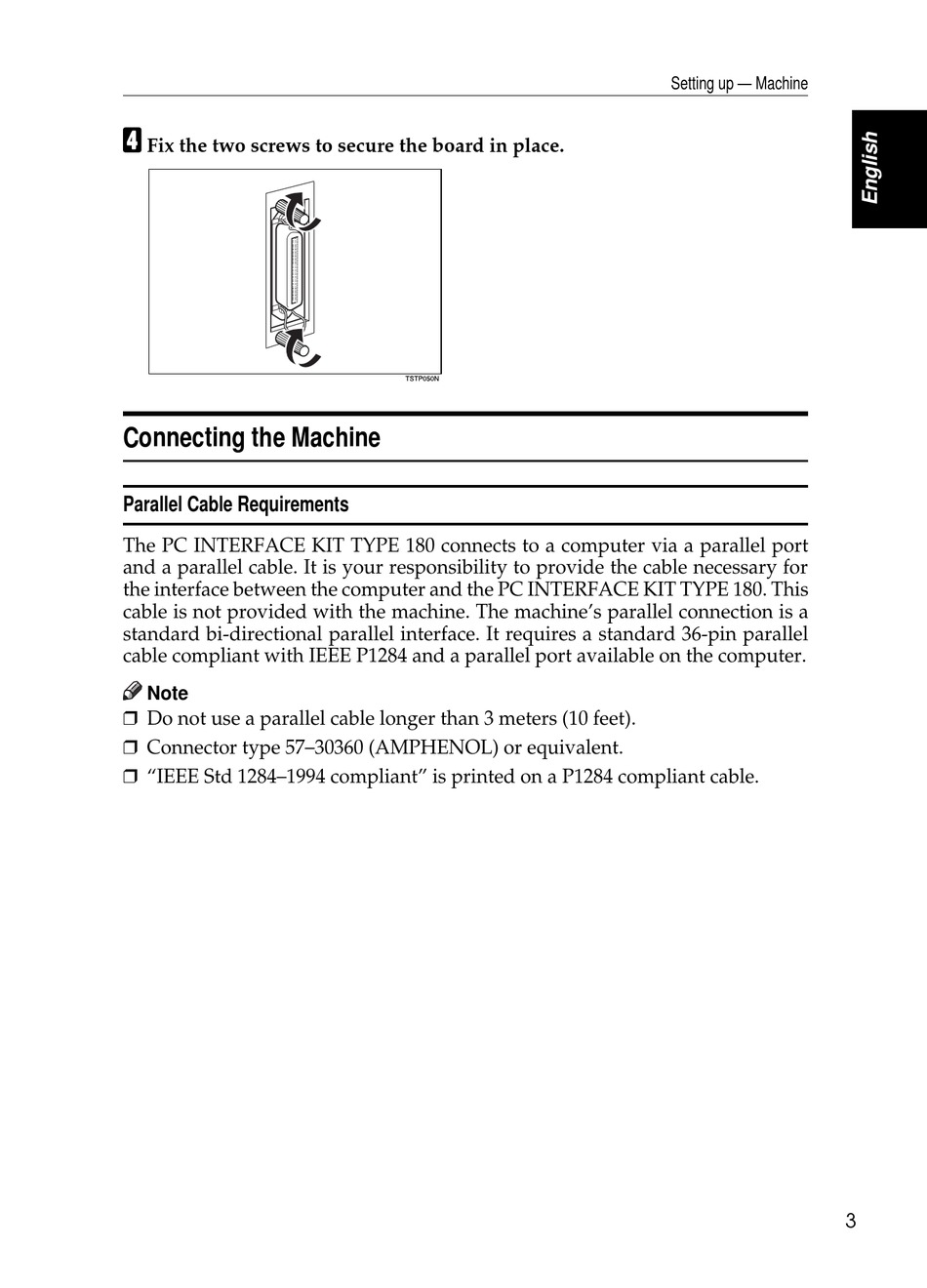

Fix the two screws to secure the board in place.

Connecting the Machine

Parallel Cable Requirements
The PC INTERFACE KIT TYPE 180 connects to a computer via a parallel port
and a parallel cable. It is your responsibility to provide the cable necessary for
the interface between the computer and the PC INTERFACE KIT TYPE 180. This
cable is not provided with the machine. The machine's parallel connection is a
standard bi-directional parallel interface. It requires a standard 36-pin parallel
cable compliant with IEEE P1284 and a parallel port available on the computer.
Note
Do not use a parallel cable longer than 3 meters (10 feet).
Connector type 57–30360 (AMPHENOL) or equivalent.
"IEEE Std 1284–1994 compliant" is printed on a P1284 compliant cable.
Setting up — Machine
