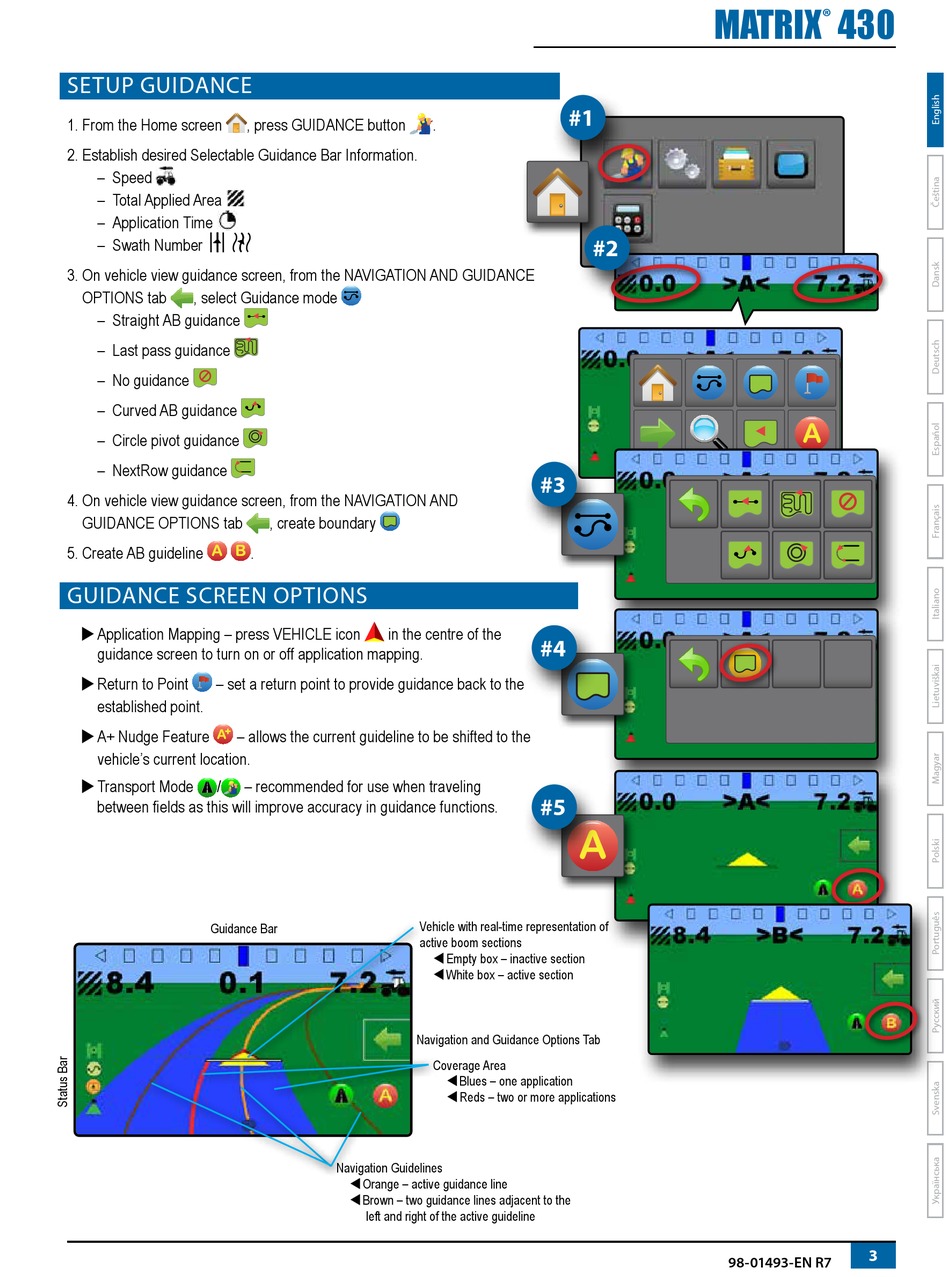

SETUP GUIDANCE
1. From the Home screen , press GUIDANCE button
2. Establish desired Selectable Guidance Bar Information.
– Speed
– Total Applied Area
– Application Time
– Swath Number
3. On vehicle view guidance screen, from the NAVIGATION AND GUIDANCE
OPTIONS tab , select Guidance mode
– Straight AB guidance
– Last pass guidance
– No guidance
– Curved AB guidance
– Circle pivot guidance
– NextRow guidance
4. On vehicle view guidance screen, from the NAVIGATION AND
GUIDANCE OPTIONS tab
5. Create AB guideline
GUIDANCE SCREEN OPTIONS
X Application Mapping – press VEHICLE icon
guidance screen to turn on or off application mapping.
X Return to Point – set a return point to provide guidance back to the
established point.
X A+ Nudge Feature – allows the current guideline to be shifted to the
vehicle's current location.
X Transport Mode / – recommended for use when traveling
between fields as this will improve accuracy in guidance functions.
Guidance Bar
, create boundary
.
in the centre of the
Vehicle with real-time representation of
active boom sections
Navigation and Guidance Options Tab
Navigation Guidelines
W Orange – active guidance line
W Brown – two guidance lines adjacent to the
left and right of the active guideline
#1
.
#2
#3
#4
#5
W Empty box – inactive section
W White box – active section
Coverage Area
W Blues – one application
W Reds – two or more applications
MATRIX 430
®
3
