COMPACT 1.6
Take care not to invert polarities when connecting the unit to the power supply. If this were to
happen, the unit will not work and irreparable damage will be caused to the compressor modules.
Centrifugal
blower
wiring communication

IMPORTANT WARNING!

Electronic
control
Battery
19

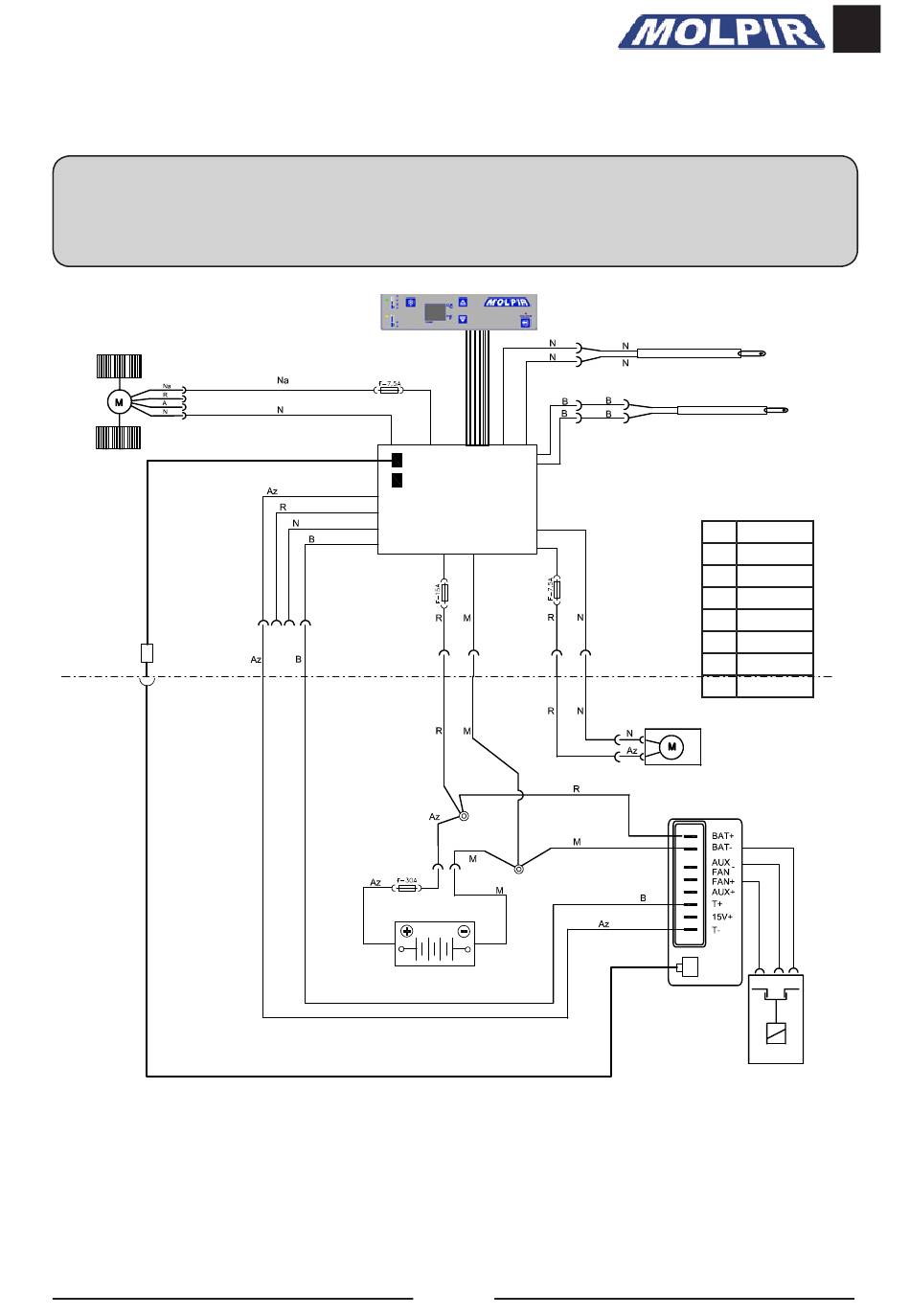

Electric wiring

Return air
sensor
Anti-freeze
sensor
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Condenser
fan
Compressor
e-module
Compressor
EN
