BASE UNIT INSTALLATION
PLEASE NOTE: disconnect the power to the main control unit prior to inserting the WES-EASY device

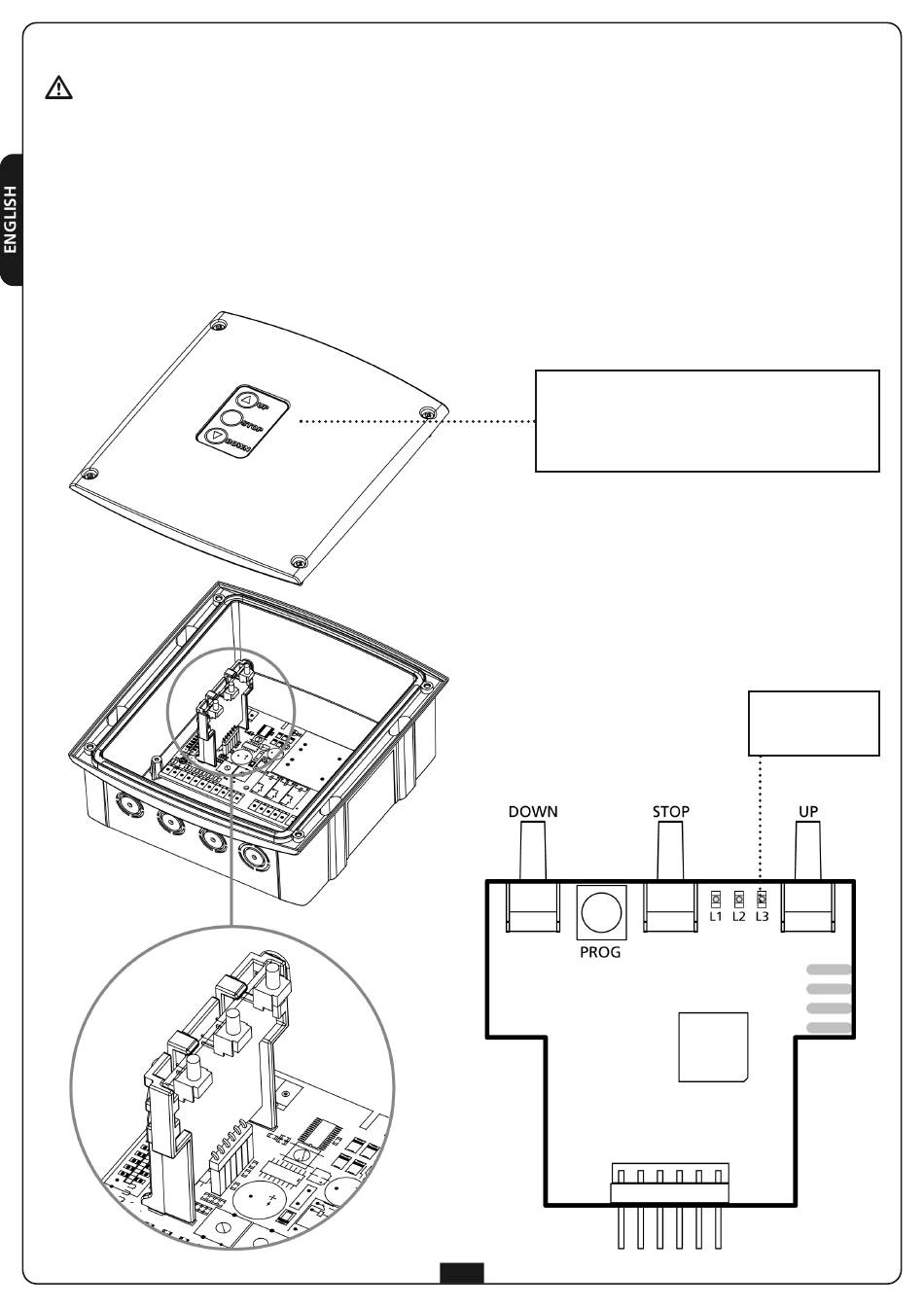

1. Insert the WES-EASY module into the specific connector as shown in the figure.
2. Power up the control unit and ensure that the green LED on the base unit is flashing normally after a few seconds. If the red LED
remains on, this means the base has already been configured; it is necessary to delete the old configuration (see the section on
RESETTING THE BASE UNIT CONFIGURATION)
NOTE: when the device is powered up, up to 15 seconds may be required before the connection with all sensors is
re-established. The system is ready for use when the LEDs for all the sensors are flashing at the scanning frequency set.
NOTE: The casing with the panel of buttons
(accessory code 171224) allows access to the three
keys when the casing is closed. Like the three terminal
board inputs, the three buttons operate as UP, STOP
and DOWN functions.
8
L1 - GREEN LED
L2 - RED LED
L3 - YELLOW LED
