3. Route the network cable (and the multicable if required) through the conduit and
through the hole in the mounting bracket.
4. Attach the mounting bracket to the wall with appropriate stainless screws.
5. Attach the conduit to the mounting bracket.
Connect cables and attach camera to mounting bracket
1. Insert the microSD card in the camera unit (optional).
2. Remove the cable gasket for the network cable from the unit casing, see Hardware
Overview on page 12.

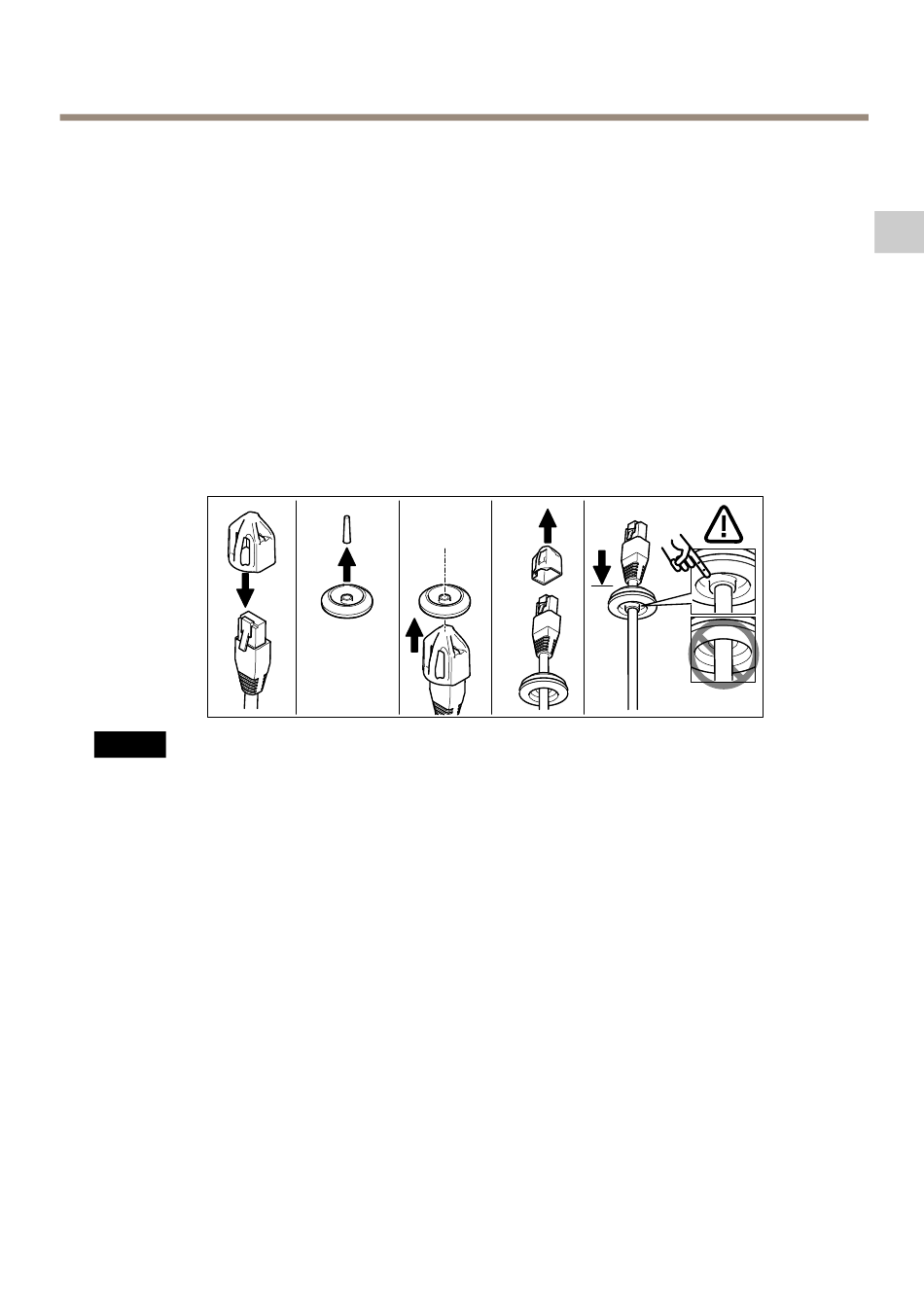

3. Pull to remove the tab on the gasket, and use the provided connector guard to push the
network cable through the gasket. Pull the network cable back slightly so that the
cable gasket adjusts itself on the cable.
NO TICE NO NO TICE TICE
Not pulling the cable back could cause water to seep in and damage the product.
4. If using a multicable, remove the other cable gasket from the unit casing and discard it.
5. Pull the cables through the unit casing and attach the cable gaskets to the unit casing.
6. Connect the cables to the camera unit.
7. Pull the springs aside in the unit casing and attach the camera unit to the unit casing,
pulling the cables through the cable gaskets to shorten them as required.
