Adjusting the derailleur systemically

The correct tension for shift cables: Shift to the highest gear, the lowest
sprocket. Now push the larger shift lever through to the first detent, while
moving the crank in order for the chain to jump from lowest to second
lowest sprocket. If the chain does not move at all, or does not jump up all
the way, you need to increase tension for the shift cable.
To do so, slightly loosen the adjusting screw (1) counter clockwise. Make
sure that the adjusting screw never fully exits the derailleur.
Should the chain jump to the third lowest sprocket right away, tension for
the shift cable has to be reduced. In order to do so, slightly tighten the
adjusting screw (1) clockwise.

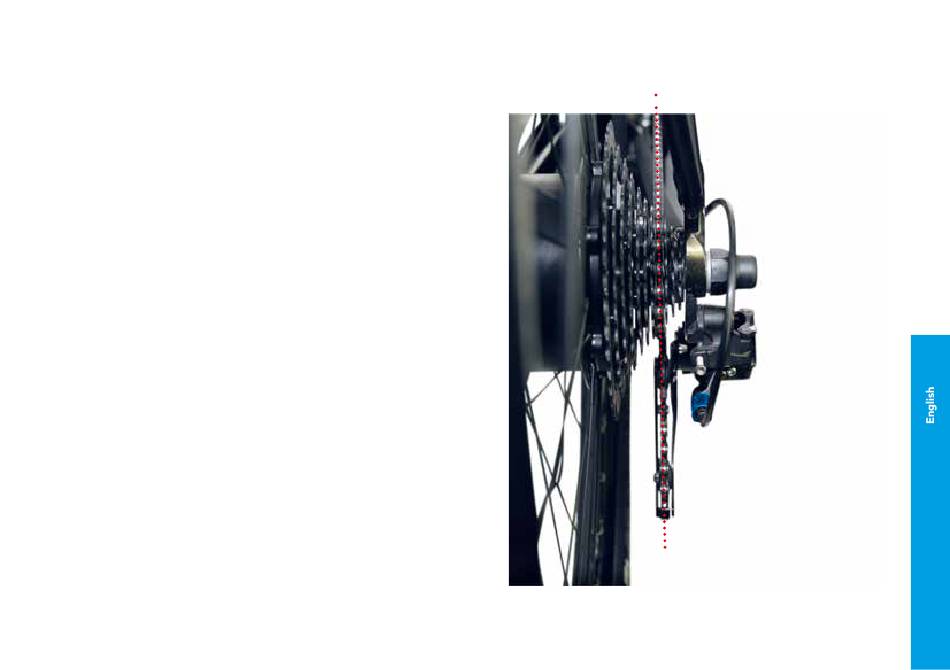

For a clean and quiet chain run, the upper sprocket should run smoothly
through the chain ring in an imaginary vertical line along the front derail-
leur with any gears (s. red line in right Fig.), as the chain might switch to
another gear unwillingly during your ride.
For a smooth gear function, make sure that every component that transfers
power is greased properly. If chain run produces noise in any of the gears,
defect might be the reason. Please contact your local Coboc dealer in any (1)
case of doubt.
