01481
01486
01481 - Home automation control module with four pushbuttons and
actuator with N/O relay output 16 A 120-240 V~ 50/60 Hz, RGB LED
location in the dark with brightness control, to be completed with inter-
changeable half-buttons: 1 or 2 module Eikon, 2 module Arké or Plana.
01486 - Home automation control module with six pushbuttons and
actuator with N/O relay output 16 A 120-240 V~ 50/60 Hz, RGB LED
location in the dark with brightness control, to be completed with inter-
changeable half-buttons: 1 or 2 module Eikon, 3 module Arké or Plana.
The device is equipped with independent pushbuttons that can also be configured
as rocker switches, on-board relay actuator, RGB LED with configurable colour, for
setting and control functions in By-me home automation systems. For the Eikon
and Arkè series, all the cover plates, whether from the catalogue or custom prod-
ucts, have symbols that can be backlit with customisable RGB colours.
FEATURES.
• Rated supply voltage: BUS 29 V
• Power consumption: 7.5 mA
• Red LED and configuration button
• Relay output (C, NO) for lights control
• Operating temperature: -5°C to +45°C (indoor use)
• Ingress protection rating: IP20
• Compatible with the By-me 21509 control unit and EasyTool Professional
• The pushbutton and rocker switch functional blocks have a group depth of
1 (that is, they can belong to one group only).
• Art. 01481:
- 4 pushbuttons that can also be configured as 2 rocker switches
- 4 RGB LEDs with configurable colour
• Art. 01486:
- 6 pushbuttons that can also be configured as 3 rocker switches
- 6 RGB LEDs with configurable colour
CONTROLLABLE LOADS.
• Relay output (controllable loads at 120 - 240 V~, NO contact):
- resistive loads : 16 A (20,000 cycles);
- incandescent lamps : 8 A (20,000 cycles);
- fluorescent lamps : 0.5 A (20,000 cycles);
- energy saving lamps : 100 W-240 V~, 30 W-120 V~ (20,000 cycles);
- LED lamps : 100 W-240 V~, 30 W-120 V~ (20,000 cycles);
- electronic transformers : 4 A (20,000 cycles);
- heating 16 (3,5) A (100,000 cycles).
Plug&Play.
CAUTION: Plug&play mode requires the system to include only plug&play
devices and not devices configured in the By-me system.
For operation in Plug&Play mode, install the 1-module fixed button caps on
the device.
With no configuration, the device is already pre-configured as follows:
- pressingA activates the onboard relay actuator of the device;
- pressingB deactivates the onboard relay actuator of the device;
- pressing C sends a "Lights OFF" scenario over the bus;
- pressing Dsends a "Lights OFF and Roller shutters DOWN" scenario over the
bus.
In addition, for art. 01486:
- pressing E sends a "Roller shutters UP" scenario over the bus;
- pressing F sends a "Roller shutters DOWN" scenario over the bus.
When pushbuttons are pressed, the LEDs illuminate for 3 s.
SETTING THE COLOURS OF THE LEDS.
Plug&Play Mode.
• Procedure activation: simultaneously long press pushbuttons C and D; the LEDs
will all illuminate in the colour currently set.
• Colour selection: short press button C or D to view the next colour.
• To save the colour and exit the procedure: long press button C or D.
• To exit the procedure without saving the colour: automatically after a timeout
of 5 s.
49401152A0 04 1810

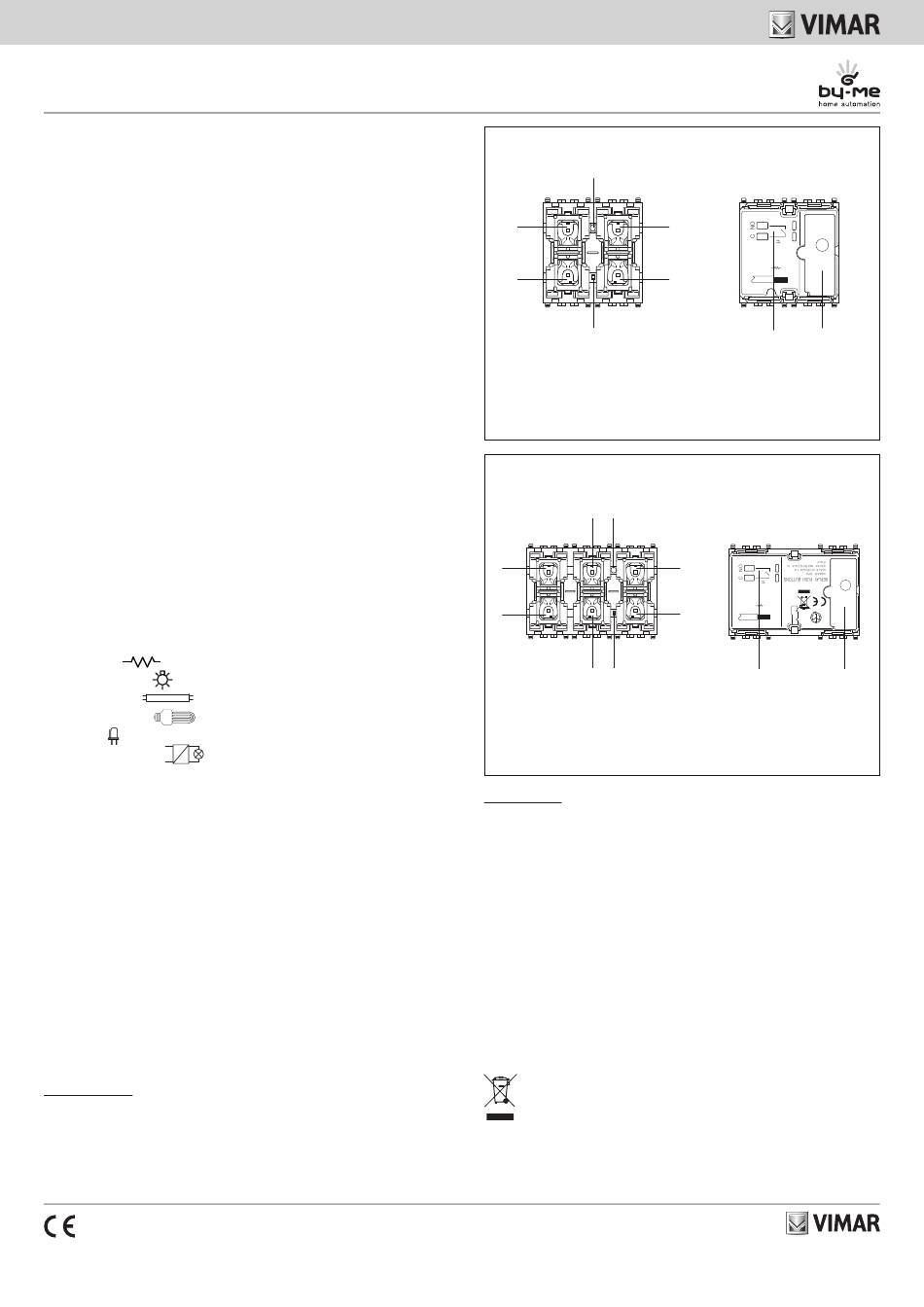

01481 - FRONT AND REAR VIEW
Configuration button
A
B
LED
Legend:
A: Button 1
B: Button 2
C: Button 3
D: Button 4
01486 - FRONT AND REAR VIEW
Configuration
button
C
A
B
D LED
Legend:
A: Button 1 D: Button 4
B: Button 2 E: Button 5
C: Button 3 F: Button 6
By-me system.
• The colour is set from the control panel or via the relative menus of EasyTool
Professional.
CONFIGURATION WITH BY-ME CONTROL UNIT OR EASYTOOL
PROFESSIONAL.
For full details, see the respective Installer manuals, which can be download-
ed from the website www.vimar.com.

INSTALLATION RULES.

Installation should be carried out by qualified staff in compliance with the current
regulations regarding the installation of electrical equipment in the country where
the products are installed. The feeding circuit of the relay output must be protected
against overloads by a device, fuse or automatic circuit breaker, with rated current
not higher than 16 A.
REGULATORY COMPLIANCE.
LV directive. EMC directive. Standards EN 60669-2-5, EN 50491.
WEEE - User information
If the crossed-out bin symbol appears on the equipment or packaging, this means
the product must not be included with other general waste at the end of its wor-
king life. The user must take the worn product to a sorted waste center, or return it
to the retailer when purchasing a new one. Products for disposal can be consigned
free of charge (without any new purchase obligation) to retailers with a sales area of
at least 400 m , if they measure less than 25 cm. An efficient sorted waste collec-
2
tion for the environmentally friendly disposal of the used device, or its subsequent
recycling, helps avoid the potential negative effects on the environment and people's
health, and encourages the re-use and/or recycling of the construction materials.
C
120-240V~ 50/60 Hz
16A
6 mm
D
Terminals
Relay
NO, C
BUS 29 V
E
120-240V~ 50/60 Hz
16A
F
6 mm
Relay Terminals
NO, C
BUS 29 V
