6. LED Signals

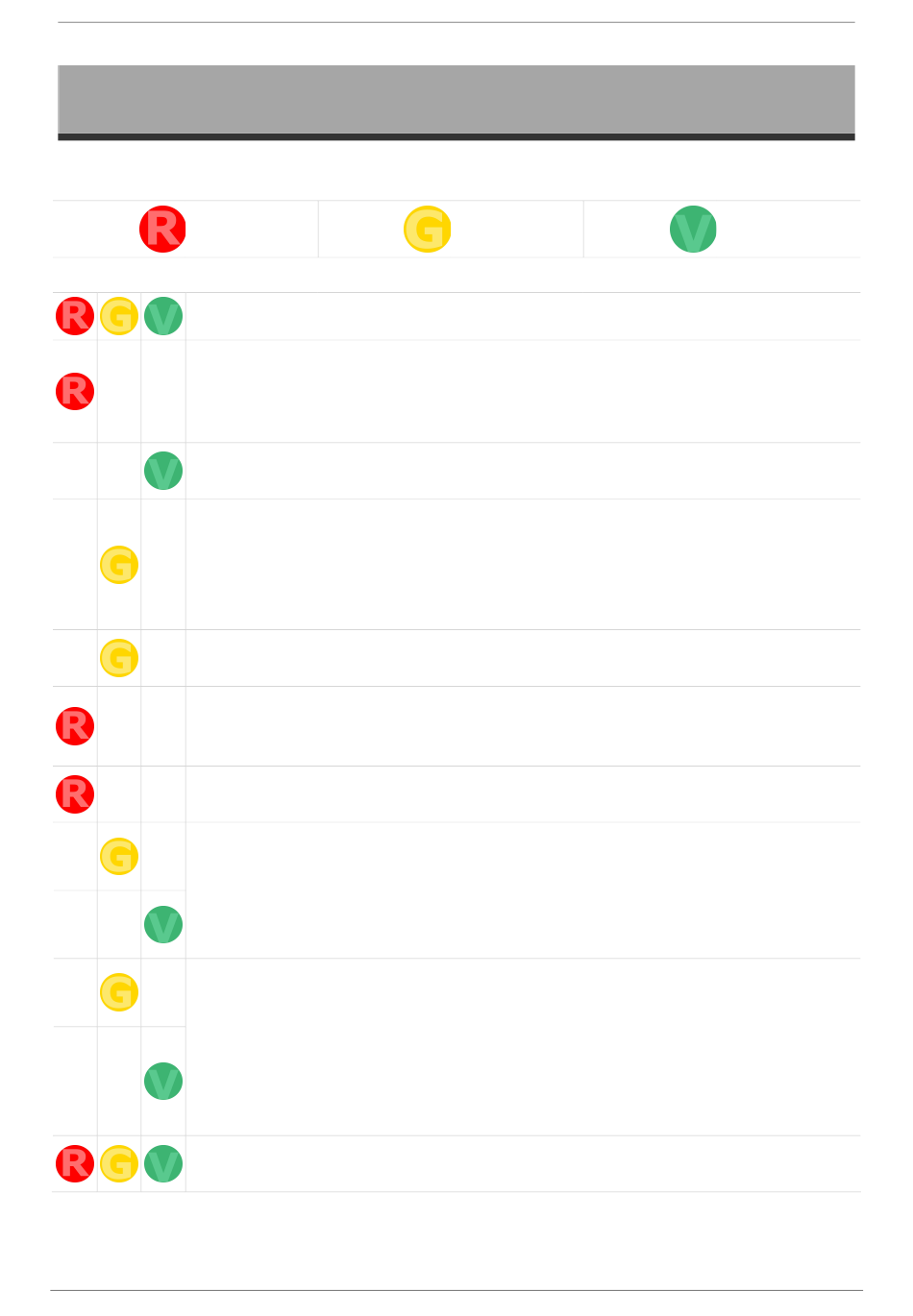

Below is a list of the main signals that the World
the 3 LEDs installed in the reading head.
Red
When the reader is switched on, the Red LED lights up to signal the lack of
protocol. After a few seconds if the protocol programmed on the reader is the
same as that of the vending machine, the green LED comes on. Otherwise if
the red LED stays on, it means that there are protocol problems.
When the protocol is operating perfectly or there are no configuration errors,
the green LED comes on. Then the reader is ready to accept the key.
When a user key is entered, if the manager code is the same as that
programmed on the reader, the yellow flashing LED (1s) comes on.
After the key has been inserted, for a few seconds the buzzer is activated to
indicate the presence of the key. vThis function can be eliminated by lowering
the volume of the buzzer to a minimum with the UNICO program.
When a sale is made, the yellow LED stops flashing and becomes fixed for the
entire duration of the sale.
When a user key is inserted with a different manager code or without a user
application loaded (card code = 29), the red flashing LED comes on and the
buzzer signals an eror tone.
When a key audit or a programming key without a user code is inserted, the
red flashing LED (1 s) comes on.
When a key audit or a programming key is inserted and the programming
code is correct, the yellow LED stays on fixed for the entire time during which
the data is being stored in the key.
When the transfer has finished, the yellow LED goes off and the green LED
comes on flashing every second.
The programming key is used when some reader settings need to be changed
without connecting the reader to the UNICO program. When the key and the
correct manager code are entered the yellow LED comes on.
When the programming is finished, the yellow LED goes off and the green one
comes on flashing every second: at this point the key can be removed. After
this operation the reader carries out an autoreset so as to restart with the new
configuration with the red LED on.
When all the LEDs flash together it means the key must be re-inserted in the
reader.
