1 1 1 1 Reading head
2 2 2 2 Vending machine surface
3 3 3 3 Fixing nut

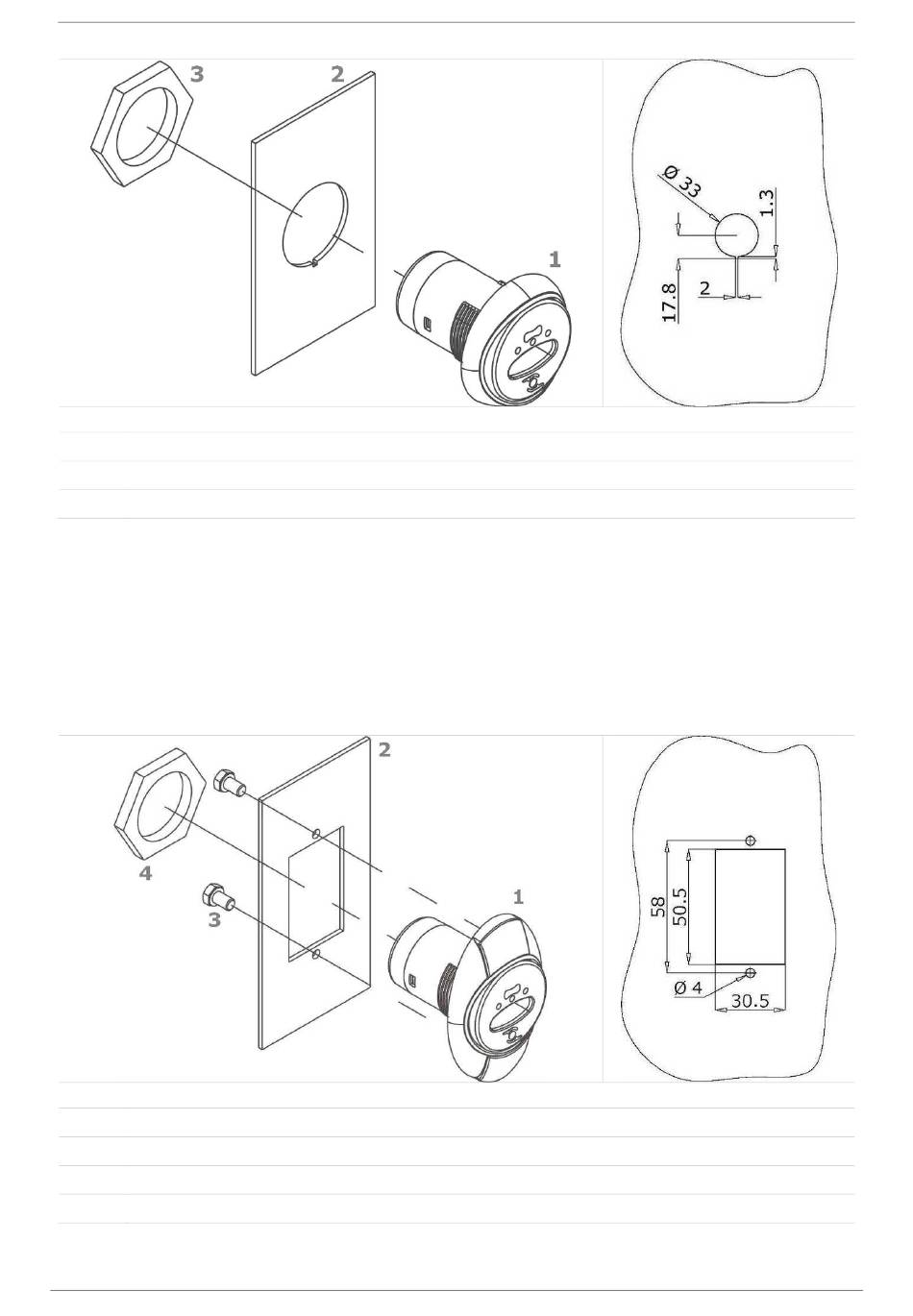

5.2 Installing the reading head with frame

If the WorldKey UltraLite is installed in a vending machine that already has a hole from
previously used cashless systems, the oval shake frame supplied must be inserted
before the reader, in order to close up the rectangular hole. There is a projection on the
perimeter of the reading head to prevent the round frame from turning.
1 1 1 1 Reading head
2 2 2 2 Vending machine surface
3 3 3 3 Fixing screws
4 4 4 4 Fixing nut
28
Figure 5
Figure 6
