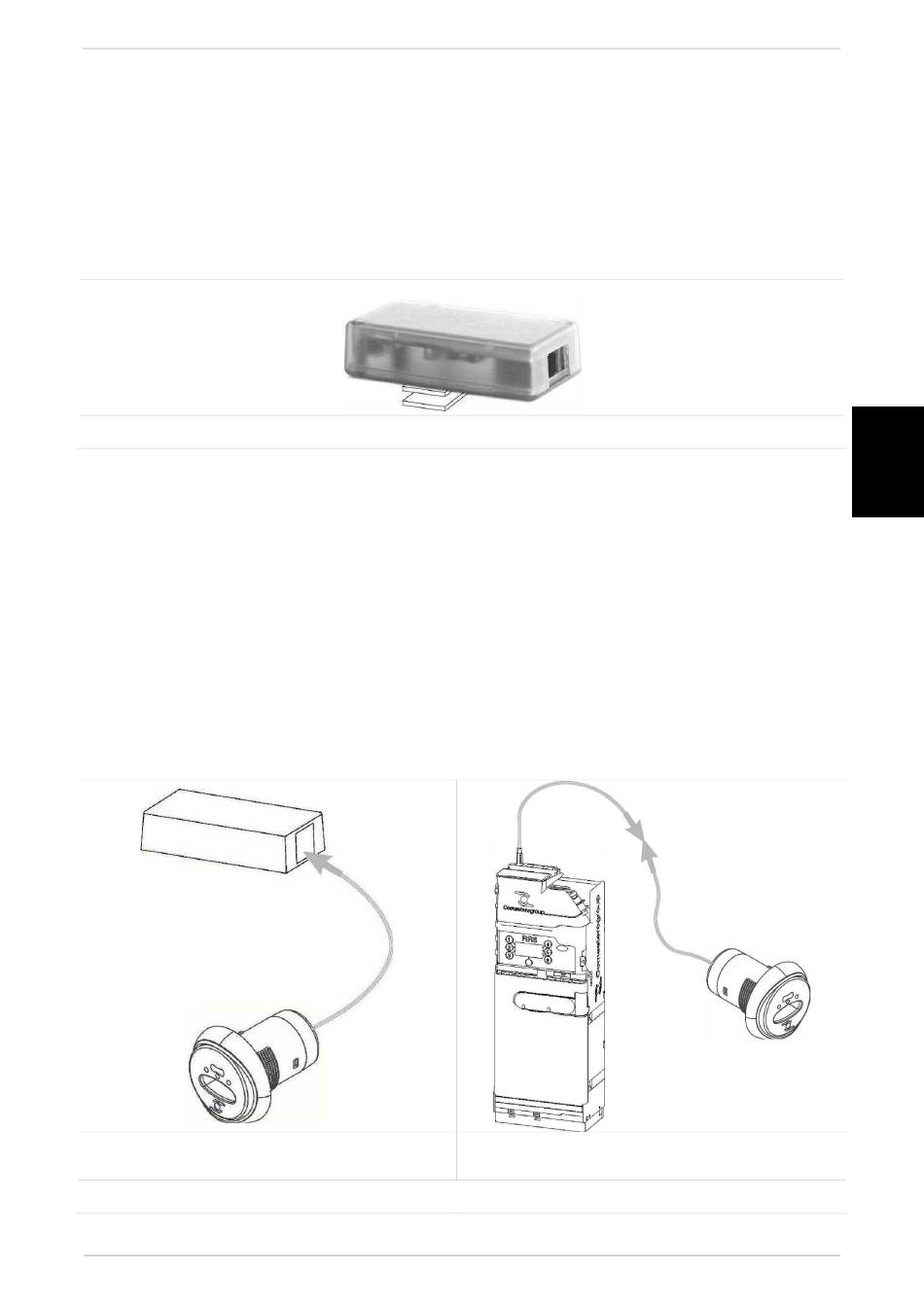

5.3 Installing the Power Module

The Power Module must be fixed to a vending machine, arranged as near as possible
to the reading head, keeping in consideration that the length of the cable is about 60
cm. As for all electronic components, it is necessary to prevent the module from being
subject to vibrations, humidity and dirt, which could lead to malfunctioning.
The device must be fixed to the vending machine using the velcro element supplied in
the package (Fig. 7).

5.4 Connections

The WorldKey UltraLite can be installed with the Power Module (Figure 8) or it can be
connected, without using the Power Module, to the changegiver ready for My RR6 HD
PRO (Figure 9).
- - - - Power Module: Power Module: Power Module: The reading head is connected to the Power Module with the RJ45 Power Module:
male connector at the end of the cable, which is integrated in the reading head. In the
Power Module you can find the RJ 45 panel female connector.
- - - - My My My My RR6 HD PRO RR6 HD PRO RR6 HD PRO: : : : The RJ 45 male connector at the end of the reading head is RR6 HD PRO
connected to the RR6 HD PRO changegiver through a cable with a RJ 45 female
connector.
Connection with the Power Module Connection with the Power Module Connection with the Power Module Connection with the Power Module
Figure 8
Figura 7
Connection with RR6 HD PRO Connection with Connection with Connection with
RR6 HD PRO) ) ) ) RR6 HD PRO
RR6 HD PRO RR6 HD PRO
RR6 HD PRO (My RR6 HD PRO RR6 HD PRO (My (My (My
Figure 9
